19. Using Fiery Link

Xerox Phaser 790

19–7

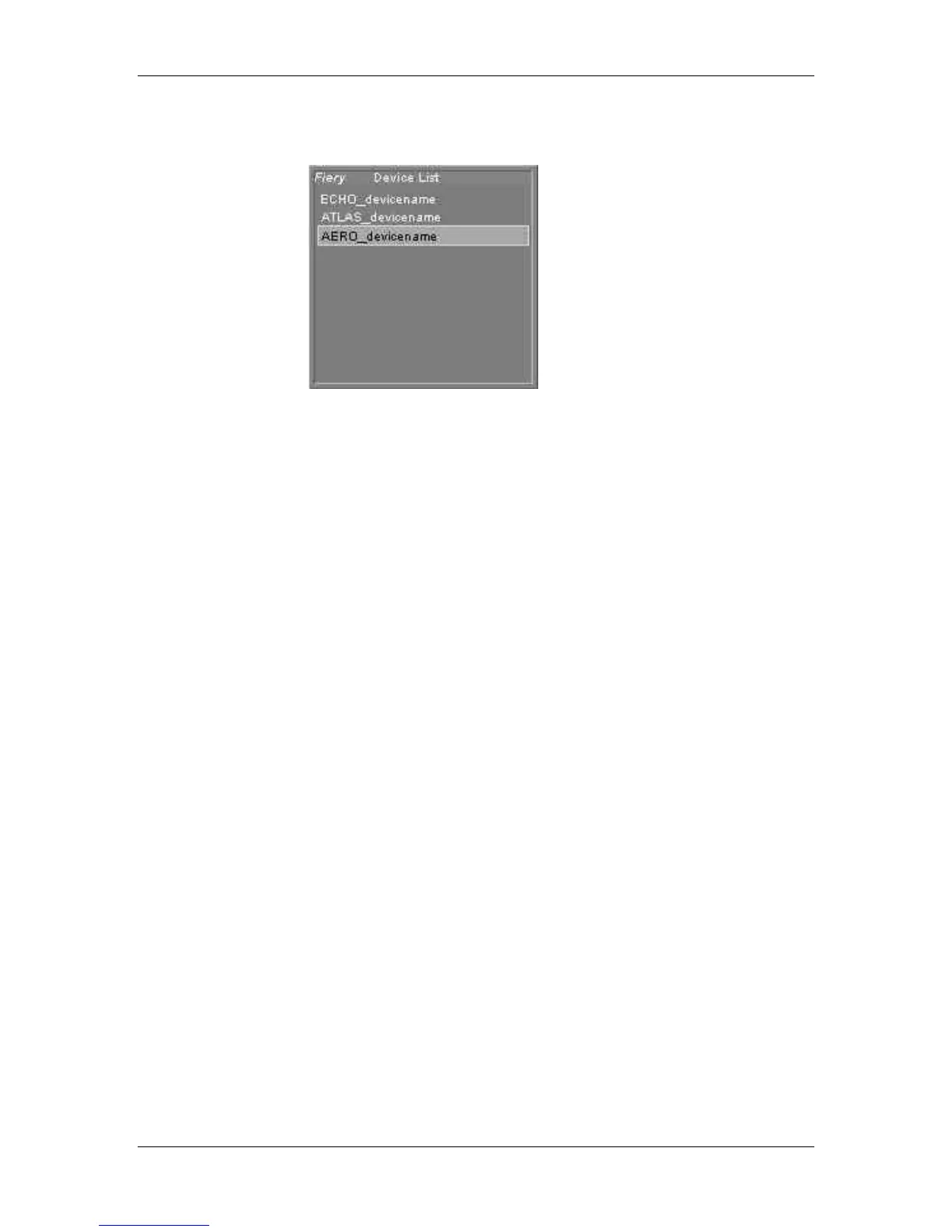

• If Monitor my Fierys is selected and you select the current

Phaser 790, the Device List is displayed.

• If Both is selected and you select the current print job or

current printer, both the Active Job List and the Device List

windows are displayed.

3. Set the General and Alert option preferences for tracking print

jobs, monitoring servers, or both:

• Show/hide tool tips

• Show/hide animations

• Enable/disable audible alerts

• Enable/disable stack alerts

• Enable/disable processing error notification

• Enable/disable printing error notification

• Enable/disable file printed notification

• Enable/disable consumable warnings notification
