Xerox Phaser 790 Documentation

21. Performing the setup from WebSetup
Xerox Phaser 790
21–9

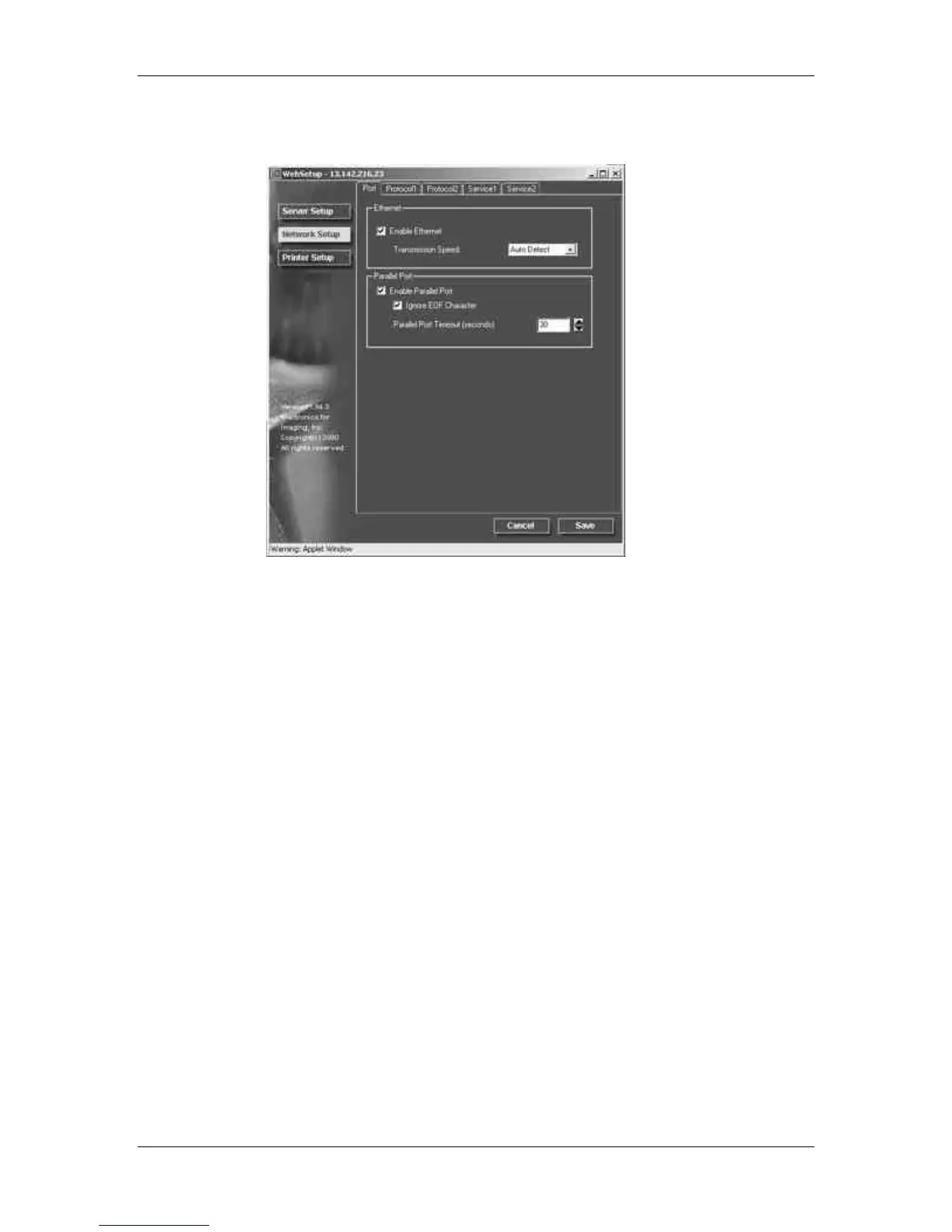

1. Select the Network Setup button from the WebSetup screen to
display the Network Setup tabs.
2. If it is not already displayed, select the Port tab and perform the
following:
a. Select the Enable Ethernet check box if the printer is to be
connected to an Ethernet network. If this box is selected, the
Transmission Speed option is enabled and the TCP/IP
Ethernet options listed under the Protocol1 tab are enabled.
Select a Transmission Speed from the drop down box.
Select Auto Detect if your network environment is mixed, or
select the speed (10 Mbps or 100 Mbps) of the network to
which the printer is attached. Changing the speed requires
rebooting the server.
To deselect the option, ensure there is no check mark in the
box.
