Front Cover Extension Kits
This table provides the possible distances between the faceplates of the modules and the
shelf front cover, which depends on the specific mounting position of the cover extension
brackets and adapters.
Shelf Adjustable Depths Front Cover Distances
SH12 15 mm (0.59 in.) 80 mm (3.15 in.)
30 mm (1.18 in.) 95 mm (3.74 in.)
1
SH4R andSH4R-2 25 mm (0.98 in.) 95 mm (3.74 in.)
Without the front cover extensions, the front cover distance for the SH12
is 65 mm (2.56in.), and for the SH4Rand SH4R-2 is 70 mm (2.76 in.).
These front cover extension kits ship with these HD shelves.
Shelf Kit
SH12 SA-EXT-FC-SH12
SH4Rand SH4R-2 SA-EXT-FC-SH4
With this extension, the SH12 front cover can extend up to 30 mm
and the SH4Rand SH4R-2front cover can extend to 25 mm. If you
extend it to the maximum extension, the total depth of the shelf
exceeds that specified in ETSI EN 300 119-3 and as a result, you
cannot install it in an ETSI cabinet.
SH12
These front cover extension kits are available for the SH12:
l 80 mm
l 95 mm
These kits include two sets of front cover extension brackets, and the two brackets to
mount on each side of the shelf.

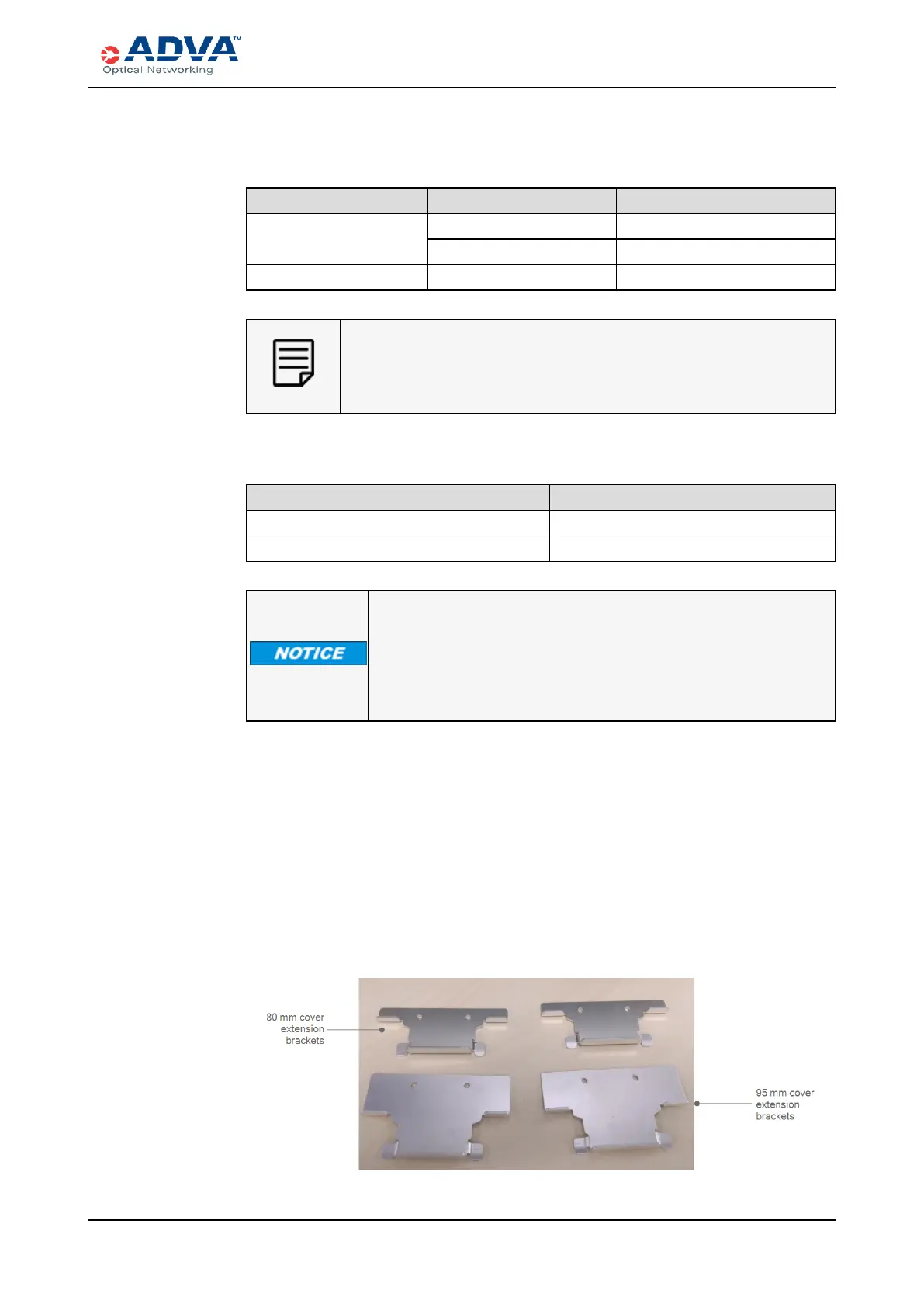

Figure 41: SH12 Cover Extension Brackets
FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B 166
