Overview
The MA-2C5LT is a core-type, ADM traffic module capable of adding/dropping up to 20
optical client signals from two OTU4 optical network signals. Each of the five client
QSFP ports supports up to four interfaces. Each interface supports different
rates/services. The MA-2C5LT supports these applications:
l Add/drop multiplexer (up to 200G client services into two OTU4 network ports)
l Muxponder (up to 200G client services into two OTU4 network ports)
l Cross-connect (up to 400G services between any ports)

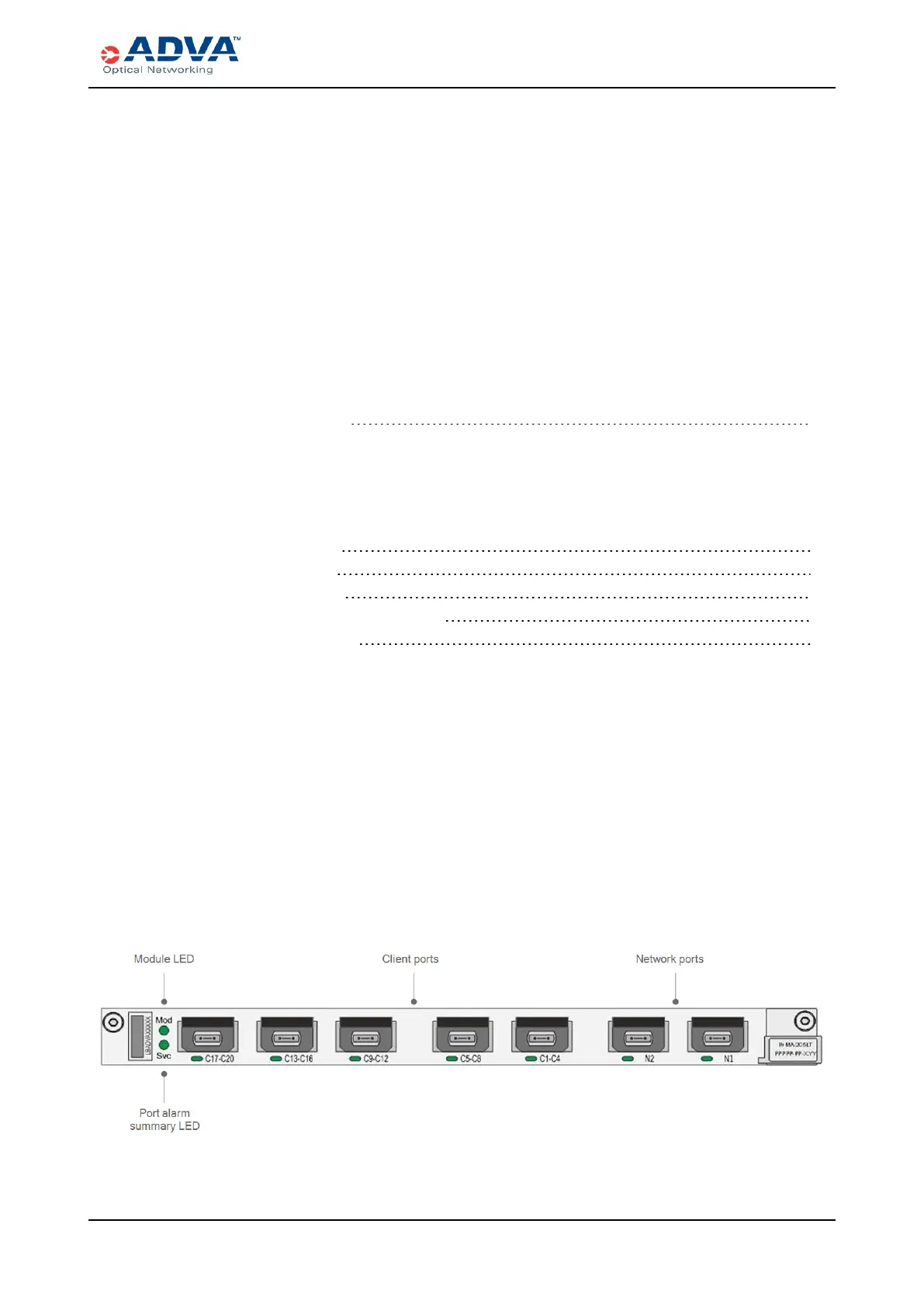

Figure 39: MA-2C5LT Faceplate
