Connecting a SH1R to the Grounding Terminals
ELECTRIC VOLTAGEWARNING
Risk of electric shock.
l After mounting the shelves into the rack and before connecting
the power cables, check the grounding and the equipotential
bonding lead according to EN 50310 and ETSI EN 300253.
l If shelves are not mounted in an appropriate rack, ensure that
the grounding is provided in an adequate way (according to
ETSI EN 300253).
l Installation Overview — SH4R and SH4R-2 Shelves
l Grounding — SH4R
l Grounding — SH4R-2
Connecting a SH1R to the Grounding
Terminals
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. Locate the ground terminal on the shelf to be grounded.
3. Use the two screws and washers to attach the two-hole lug terminal of the
appropriate grounding cable to the grounding terminal location.

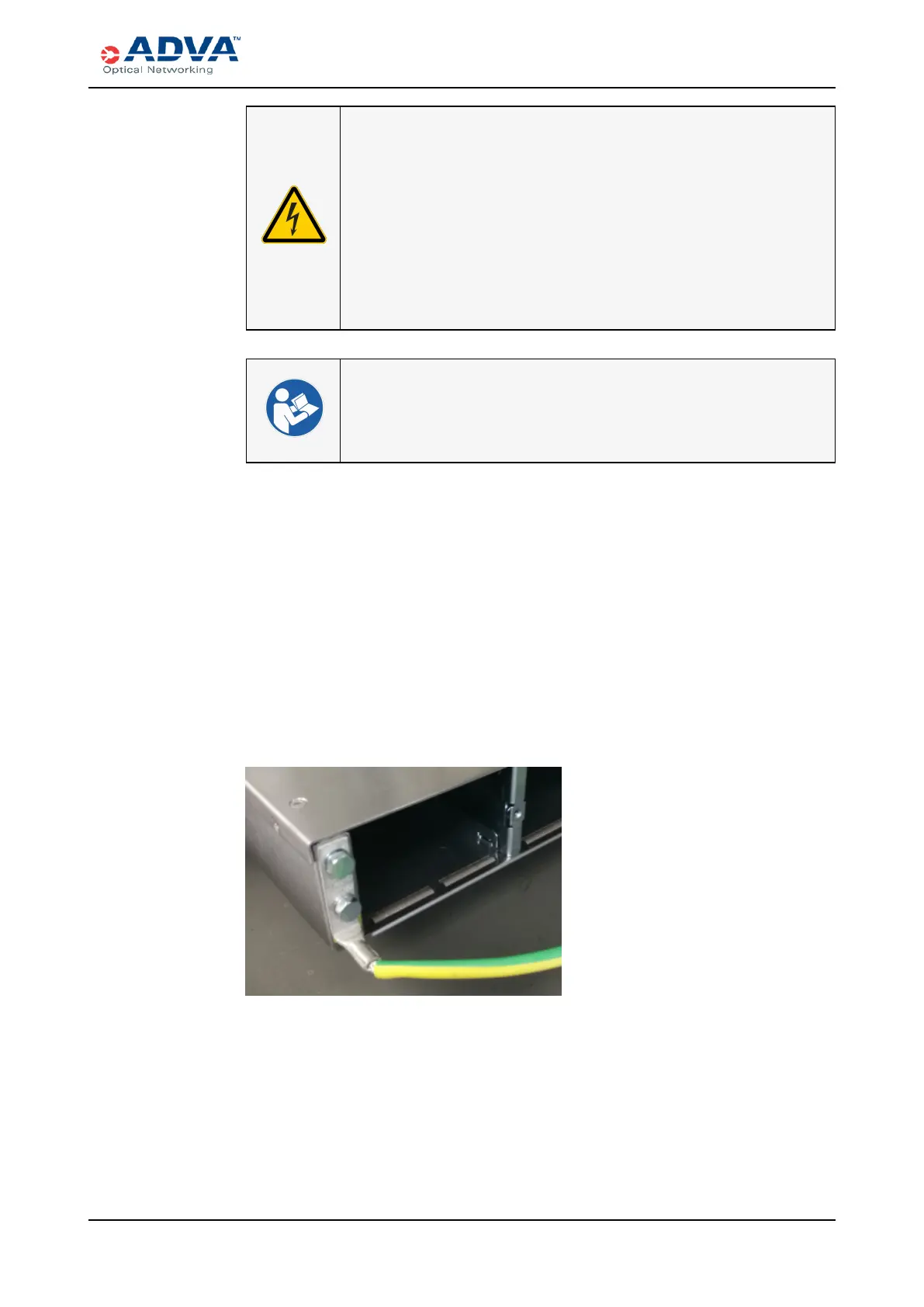

Figure 91: Connecting the Grounding Cable to SH1R
4. Repeat this procedure for each shelf needing to be grounded. You must properly
ground the shelf before connecting power.
FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B 282
