SH4R Shelf
Keep fiber-optic cables organized. If you do not use your rack posts for
fiber management, ADVA Optical Networking strongly recommends that
you use a cable and fiber tray.
l Overview
l Traffic Module Compatibility
l Handling Fiber-Optic Cables
l Cable and Fiber Trays
l Shelf Cable Capacity
Slot Numbers and Assignments
These slot numbers indicate where the modules may be physically
installed in the shelf. They may not be the slot numbers used when
configuring the system software. Refer to the appropriate software
documentation for the slot numbers used for configuration.
Slot numbers are silkscreened onto the front of the shelf.
Slot Module
1 through 7 High-density traffic modules
21 and 22 ECM-2s
31 CEM-4
33 and 34 FTM-4s
35 through 37 PSMs
Table 6: Slot Assignments — SH4R

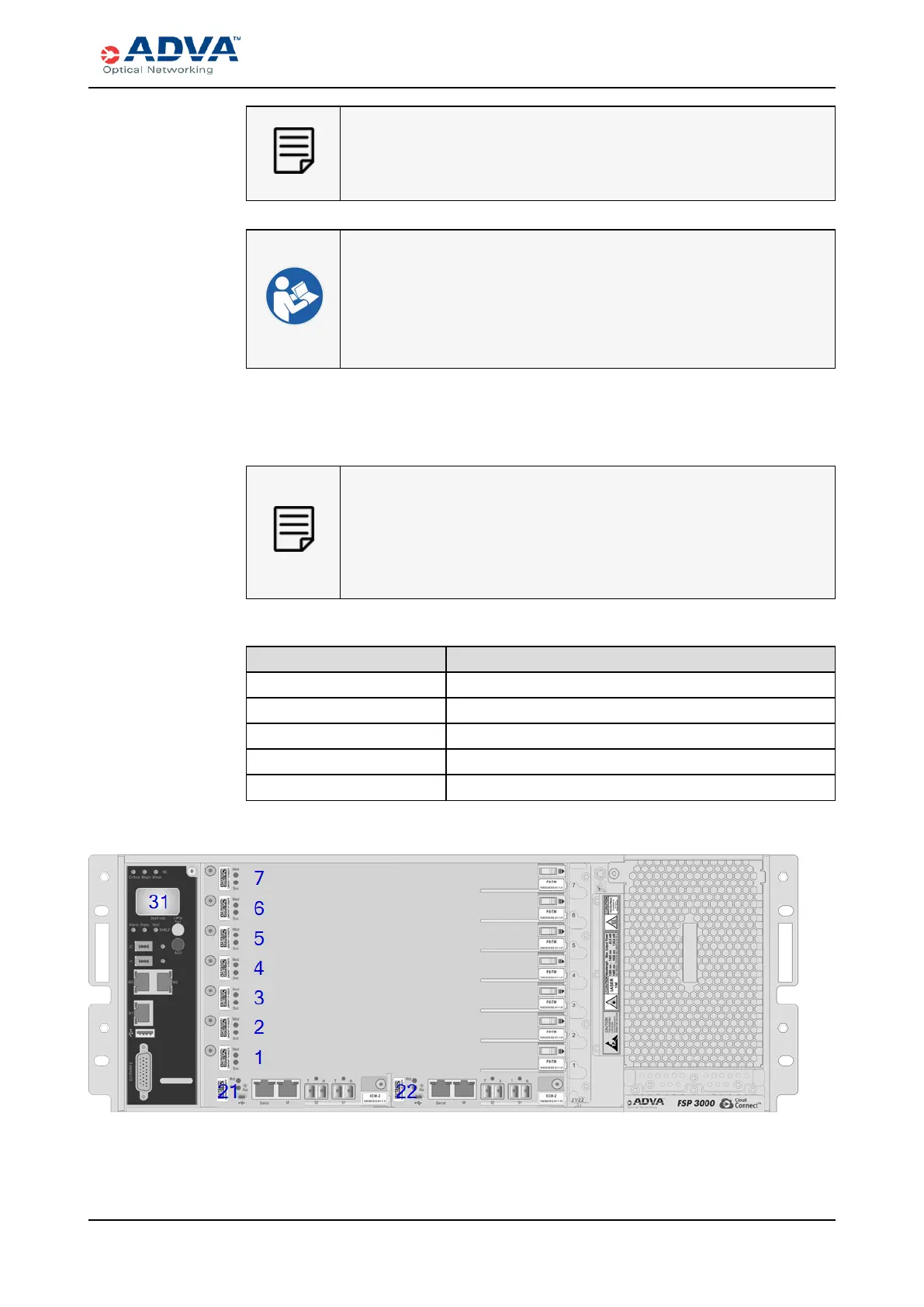

Figure 7: SH4R Slot Numbering — Front View
FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B 46
