Guide Rail Kits
SH4R and SH4R-2
The SH4R and SH4R-2 cover extension adapters are already attached to the front cover
and need to be manually extended. See Installing the Front Cover Extension for more
information.

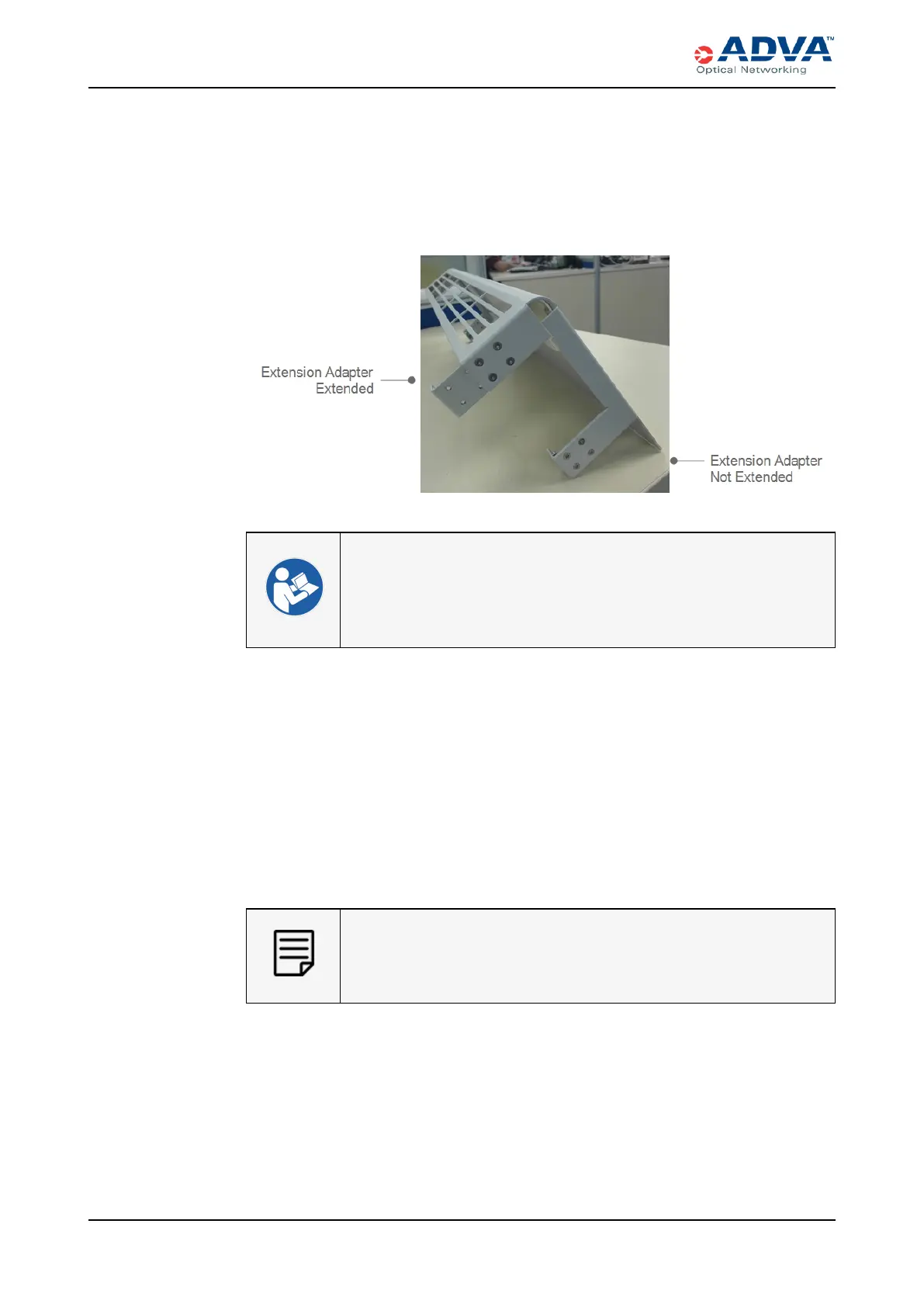

Figure 42: Extension Adapters
l Accessory Installation Requirements
l Cable Management Best Practices
l Handling Fiber-Optic Cables
l Installing the Front Cover Extension
1
If you are using the breakout cables with the MPO24 connectors, use the largest
extension.
Guide Rail Kits
The depth and weight of a populated SH4R, SH4R-2, or SH1R requires that you install
one of these guide rail kits. The guide rail kits include all available mounting brackets for
your shelf.
A guide rail kit is required for an SH1R installed in a four-post rack.
However, it is not needed for an SH1R installed in a two-post rack.
167 FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B
