Installing the SH12 Upper Front Cover
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. Position the upper cover on the front of the shelf so that the latches and brackets on
either side align, with the curvature at the top.

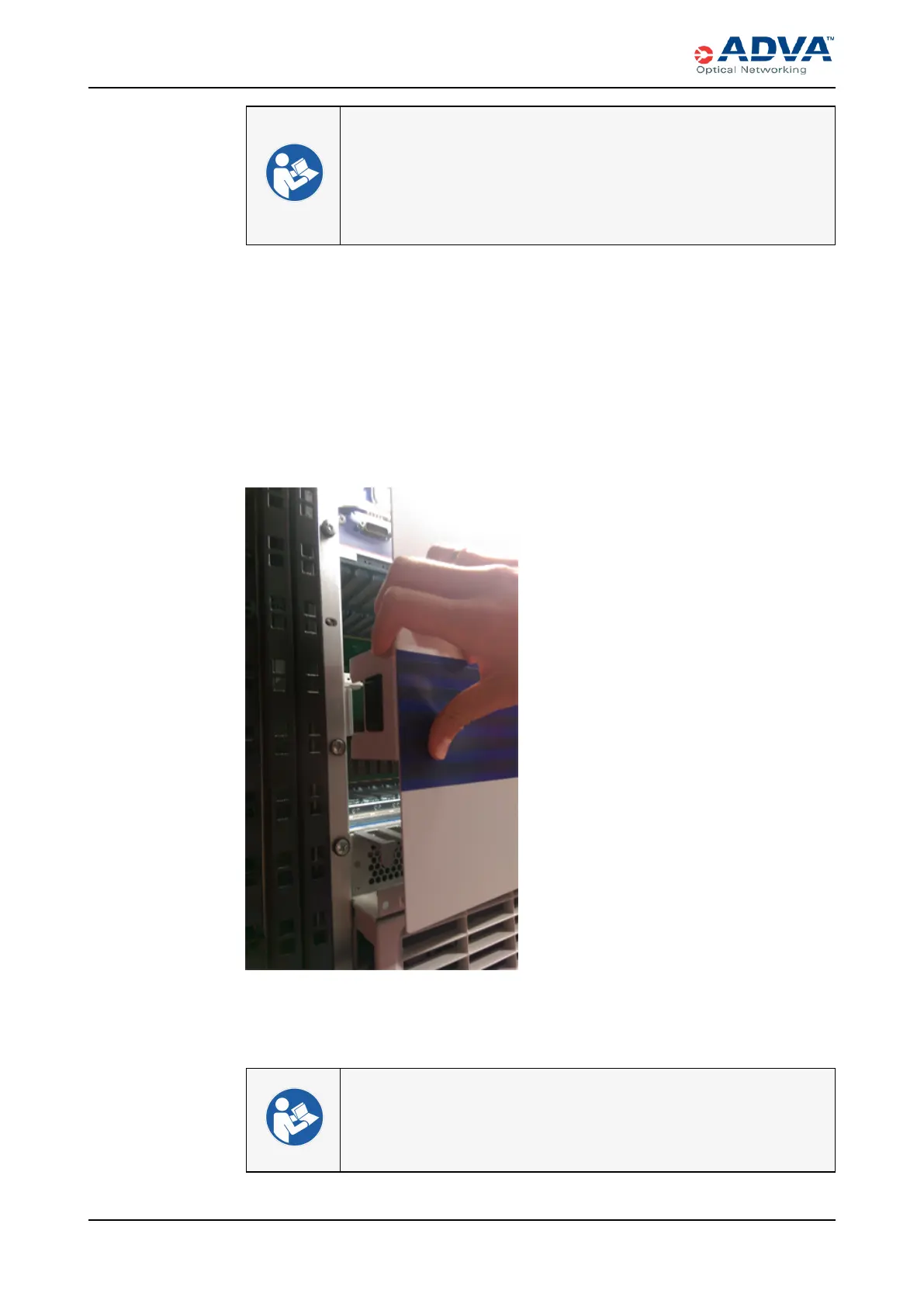

Figure 126: Positioning the Upper Front Cover
3. Press the cover inward until both latches snap into place. Be careful not to pinch any
fibers or cables.
