Installing the Mounting Brackets on an SH4R and SH4R-2 Shelf
Installing the Mounting Brackets on an SH4R
and SH4R-2 Shelf
This procedure is to install 23-inch and ETSI mounting brackets on the
shelf. If you are installing the shelf in a 19-inch rack, you can skip this
step.
This procedure assumes that:
l The shelf is unpacked and inspected;
l It is damage-free;
l The shelf is on a static-dissipative mat; and
l You want to install the shelf in a 23-inch or ETSIrack.
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESDjack.
2. To remove the 19-inch mounting bracket on one side panel of the shelf, use the Torx
T20 screwdriver to remove the four screws attaching the bracket to the shelf. Set
aside the screws and bracket.
3. To reattach the appropriate mounting bracket to side panel on the shelf, use the Torx
T20 screwdriver and the four screws from Step 2 to attach the appropriate mounting
bracket to the shelf.

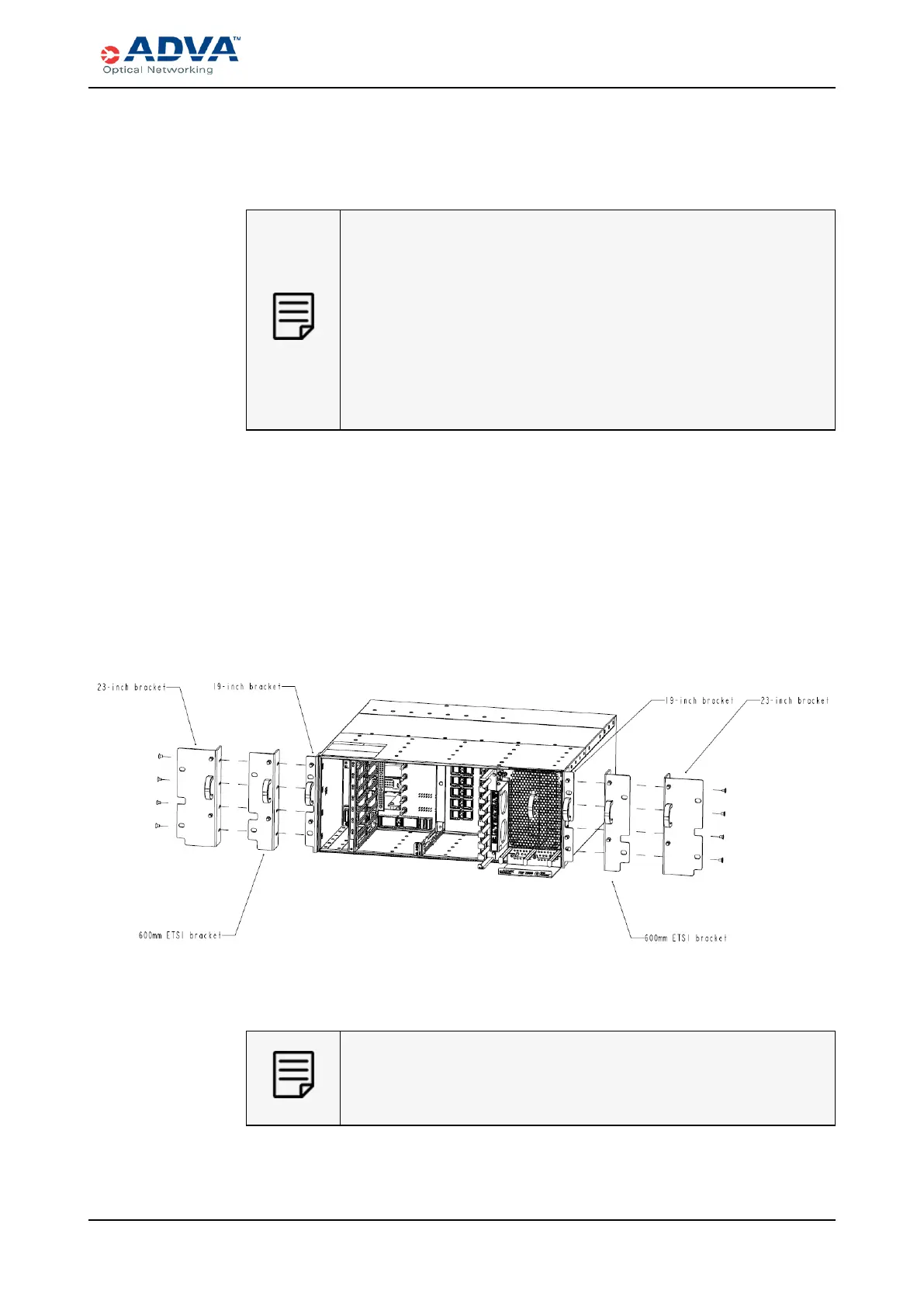

Figure 69: Fitting the 23-inch Mounting Brackets to an SH4R andSH4R-2
4. Repeat this procedure for the other mounting bracket.
Save the remaining mounting brackets and packaging material for future
use.
