Replacing the SH12 Air Filter Pad
Replacing the SH12 Air Filter Pad
The SH12 has two air filter pads. One is located under the fiber tray, and the other is
located inside the lower front cover. To replace the air filter pad under the fiber tray:
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. If installed, remove the lower front cover from the shelf as described in Removing
and Installing Front Covers.
3. Slightly push both slide latches inwards at the same time, and then pull out the air
filter unit approximately 5 cm (1.97 in.).
4. Wait approximately two minutes, and then completely pull out the air filter unit.
5. To open the air filter unit, use a small screwdriver to carefully press open the five
small slots at the rear part of the unit.

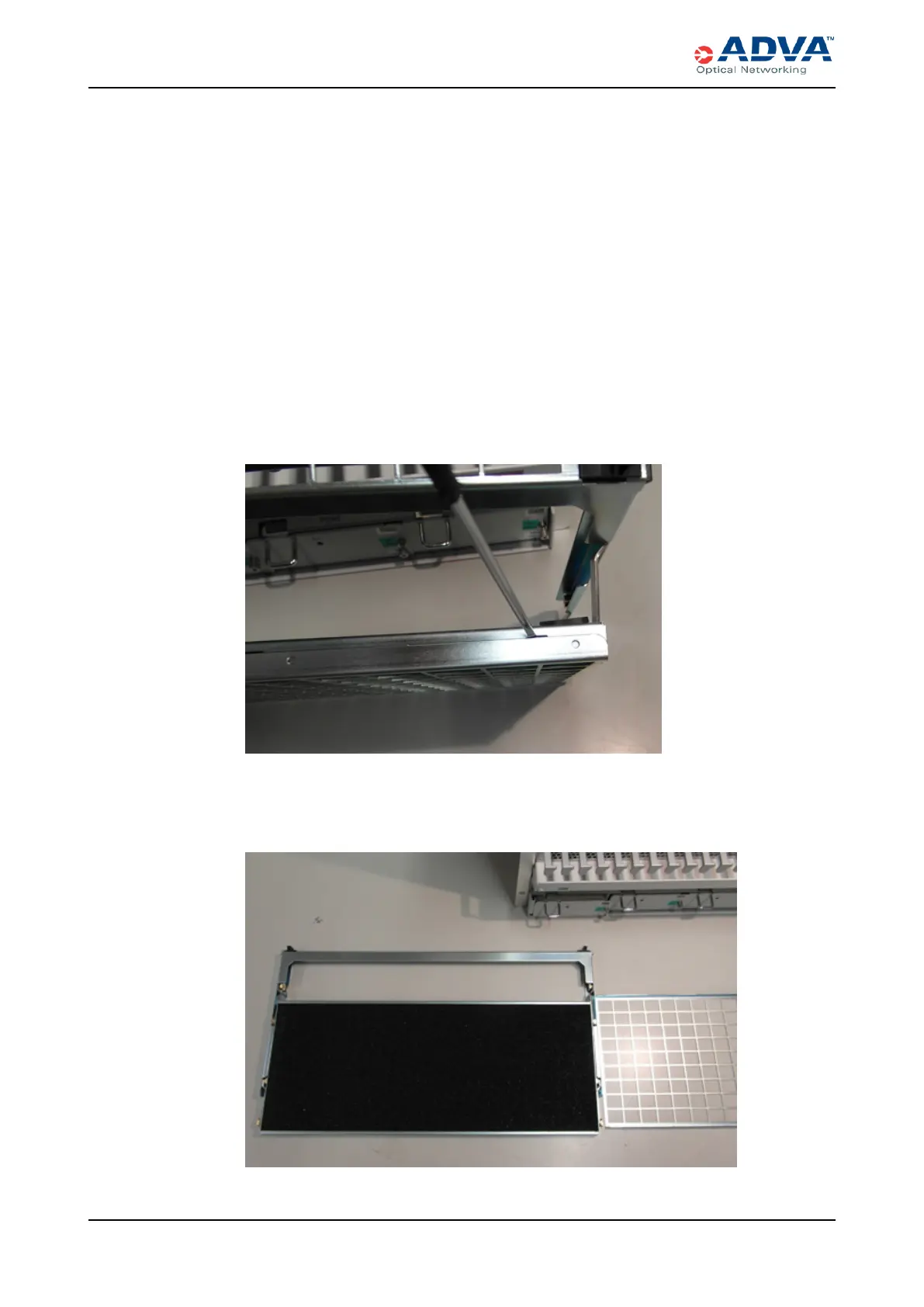

Figure 114: Five Slots on Rear of the Air Filter Unit
6. Remove the air filter pad from the filter unit.
Figure 115: Removing an Air Filter Pad
357 FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B
