SH4R Shelf
To provide greater flexibility, the SH4R supports two chassis grounding terminals on the
rear of the shelf.

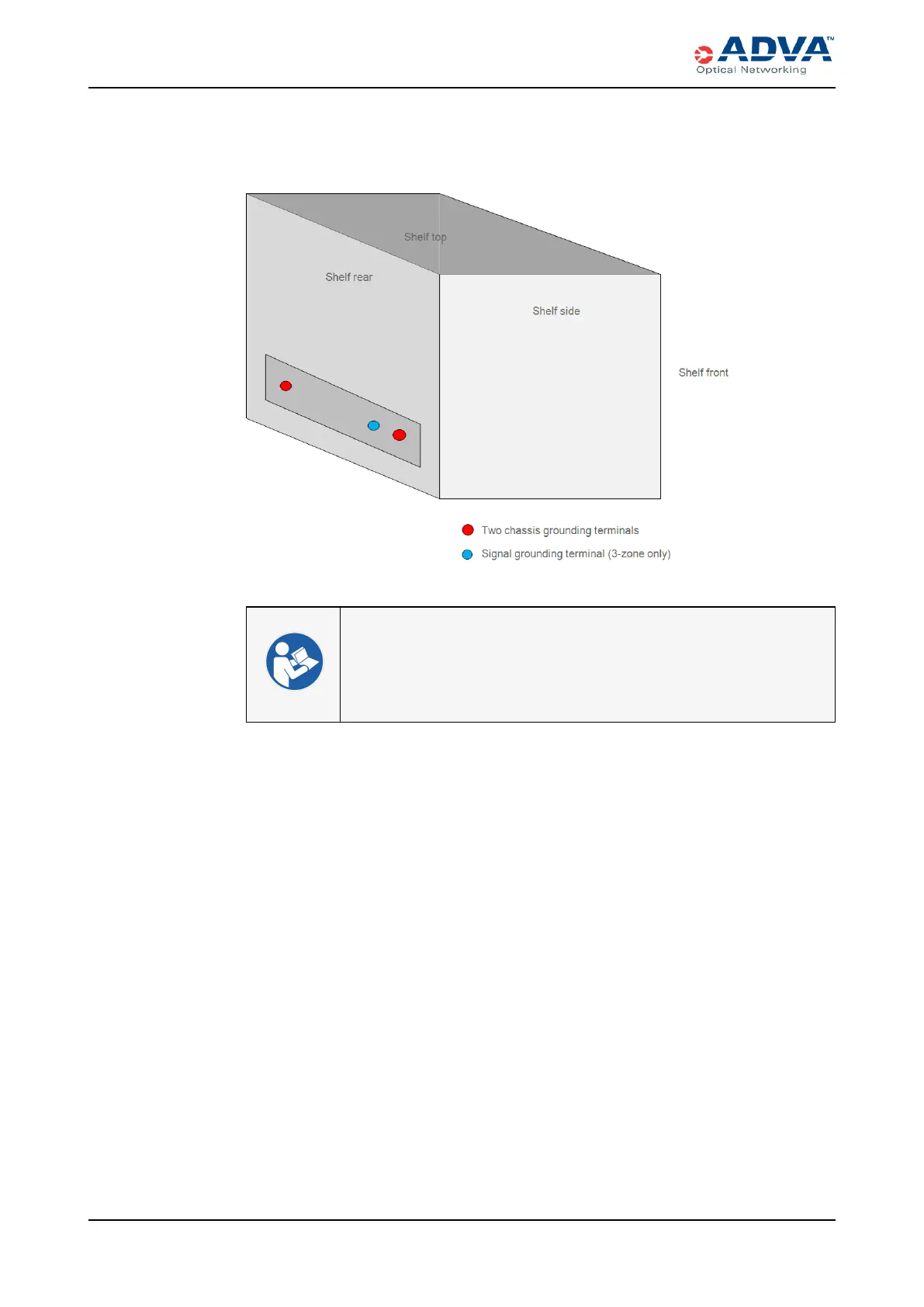

Figure 10: Grounding Terminals
l Grounding Cable — SH4R and SH4R-2
l General Power and Grounding Guidelines
l Electrical Safety Guidelines and Warnings
l SH4R Shelf
Shipment Contents
Each SH4R shipment consists of these components and accessories:
l SH4R shelf
l Front cover
l Front cover extension kit — built-in to front cover
l Mounting brackets — 19-inch installed
l Grounding cable
l Air filters
If ordered separately, these components and accessories might also ship with your
SH4R:
l Infrastructure modules — ECM-2, CEM-4, FTM-4s, and PSMs
l Slot covers — ECM-2, PSMs, and traffic modules
l Appropriate mounting bracket kit — includes 23-inch or ETSI mounting brackets
l Appropriate guide rail kit — includes 19-inch, 23-inch, or ETSI mounting brackets
