AC Power Cable Specifications
Overview 219
Number of ACPower Cables 220
Left-Angled ACPower Cables 221
Right-Angled ACPower Cables 222
Straight ACPower Cables 223
Overview
To connect a shelf to line power, use a detachable, flexible AC power cable with suitable
electric and insulation ratings in accordance with your local safety standards. The power
cable and the assembled connectors must bear the safety agency certification mark for
the specific region or country intended for installation.
Shelf AC PSM Cables
SH12 PSM-AC6
l Left-Angled ACPower Cables
SH4R andSH4R-2 PSM-AC4
l Left-Angled ACPower Cables
PSM-AC5
l Straight ACPower Cables
SH1R PSM-AC3
l Right-Angled ACPower Cables
You must use ADVA-provided ACpower cables with your ACPSMs.
ADVA Optical Networking strongly recommends using a straight
ACpower cable with a PSM-AC4 only if the rack is deeper than 600
mm.

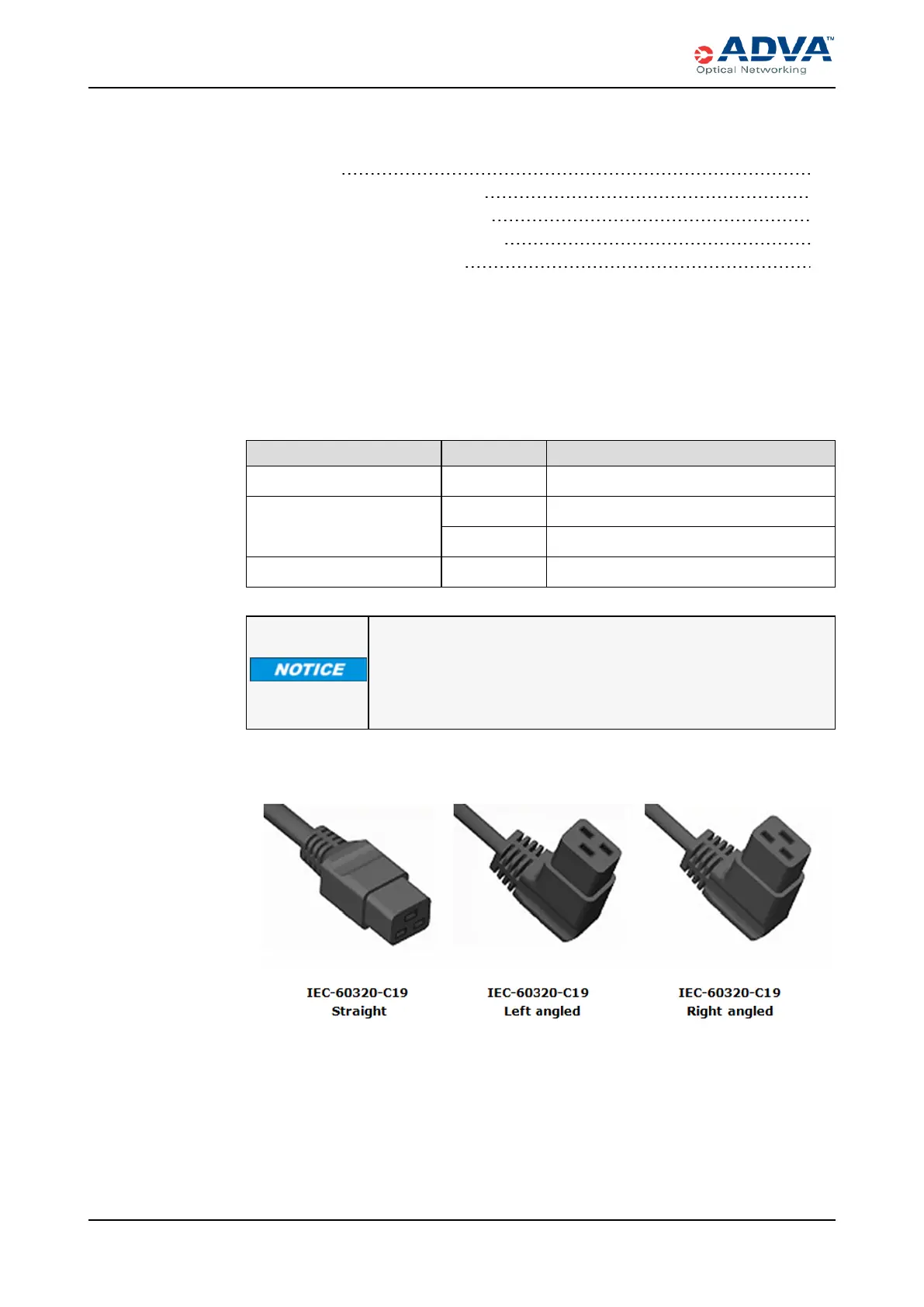

Figure 62: ACPower Cable Connector Variants
