Installing the SH12 Upper Front Cover
Installing the SH12 Upper Front Cover
If you plan to install a front cover on your HD shelf and you use cables
with MPOconnectors, you must also install the front cover extension. To
determine if your shelf rack or cabinet configuration supports front covers
and extensions, and for more information about accessory installation
requirements, see Accessory Installation Requirements.
The SH12 lower front cover houses an air filter for the PSMs and you
must install it.
This procedure assumes that the physical installation of the HD
components and connections is complete.
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. Position the upper cover on the front of the shelf so that the latches and brackets on
either side align, with the curvature at the top.

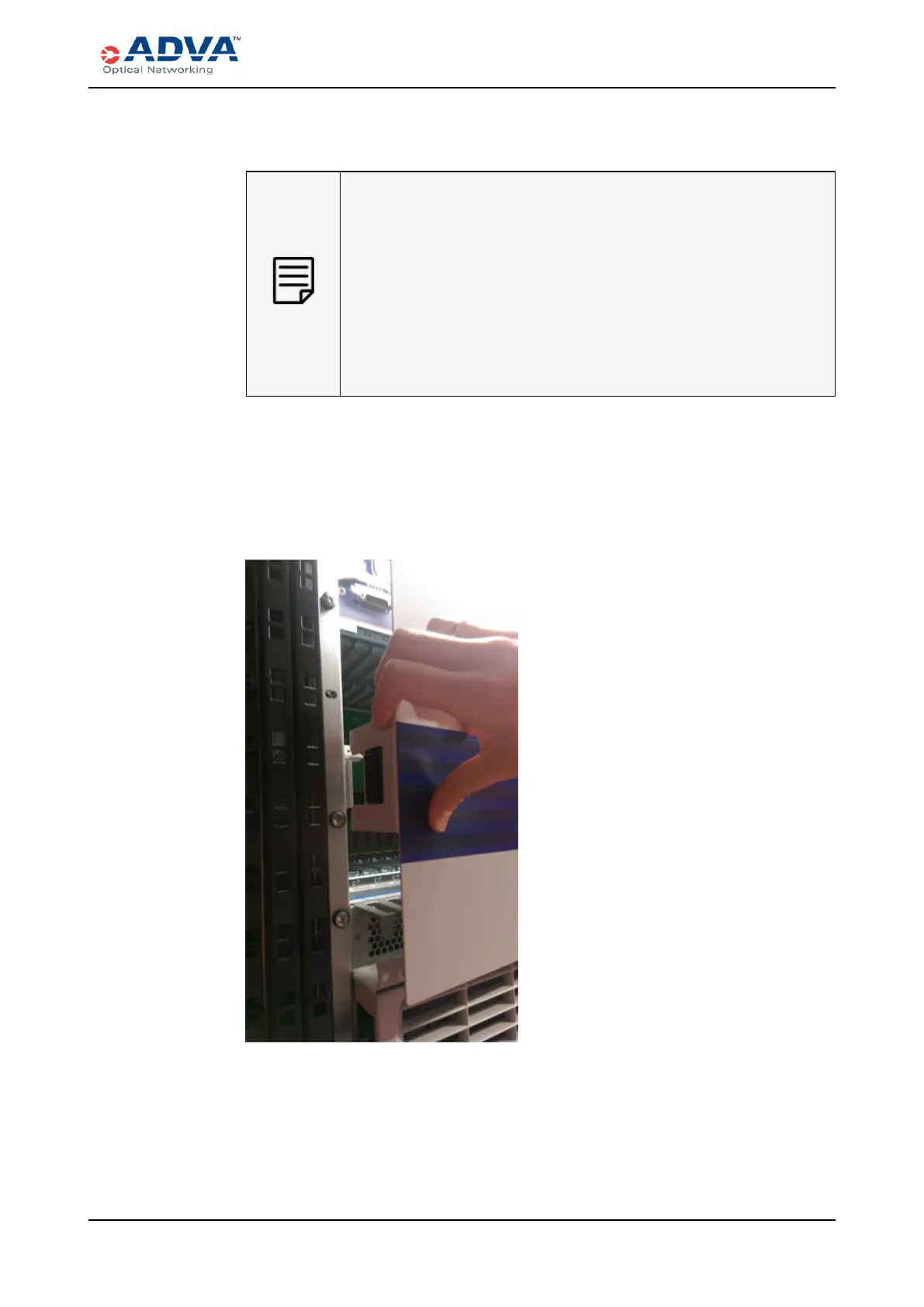

Figure 111: Positioning the Upper Front Cover
3. Press the cover inward until both latches snap into place. Be careful not to pinch any
fibers or cables.
