Installing the Mounting Brackets on an SH12 Shelf
Installing the Mounting Brackets on an SH12
Shelf
This procedure assumes that:
l The shelf is unpacked and inspected;
l It is damage-free;
l The shelf is on a static-dissipative mat; and
l You want to install the shelf in a 23-inch or ETSI rack.
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESDjack.
2. Remove the 19-inch mounting bracket on one side panel of the shelf:
a. Use the Torx T20 screwdriver to remove the six screws attaching the 19-inch
bracket to the shelf. Set aside the screws and bracket.
b. A small fixing bracket, used to hold the front cover, is attached to the dismounted
19-inch bracket. Use the Torx T10 screwdriver to remove the two screws
attaching the fixing bracket to the 19-inch bracket. Set aside the screws and
fixing bracket.

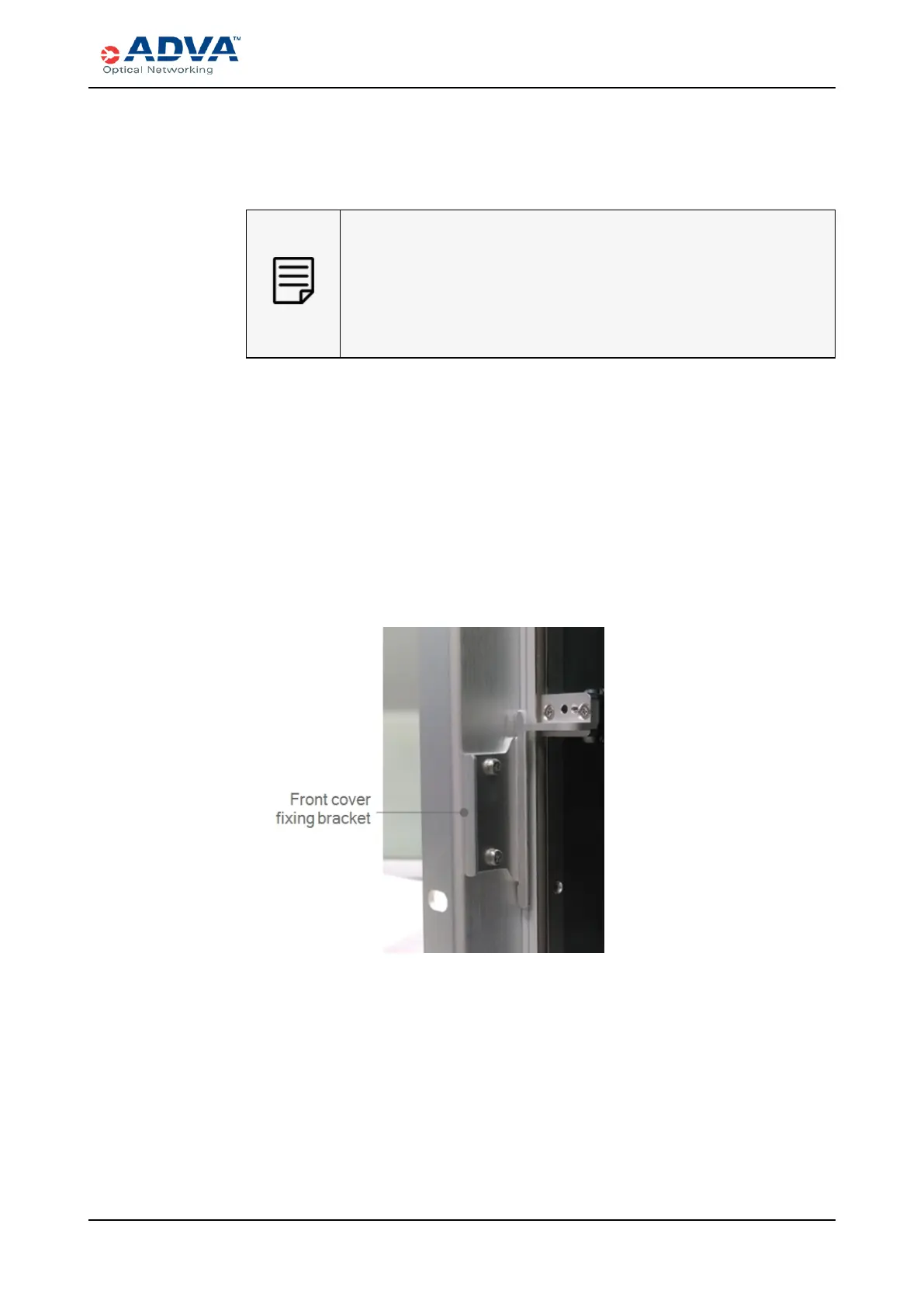

Figure 67: Front Cover Fixing Bracket
3. Reattach the appropriate mounting bracket to side panel on the shelf:
a. Use the Torx T10 screwdriver and the two screws from Step 2b to attach the
fixing bracket to the appropriate mounting bracket.
b. Use the Torx T20 screwdriver and the six screws from Step 2a to attach the
appropriate mounting bracket to the shelf.
