Installing the SH4R and SH4R-2 Front Cover Extension
l Front Cover Extension Kits
l Installation Overview — SH12 Shelf
l Site Preparation Checklist
Installing the SH4R and SH4R-2 Front Cover
Extension
This procedure assumes that:
l The shelf is unpacked and inspected;
l It is damage-free; and
l The shelf resides on a static-dissipative mat.
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. Use the Torx T10 screwdriver to remove the four screws that are attached to a front
cover tab. Set aside the screws.

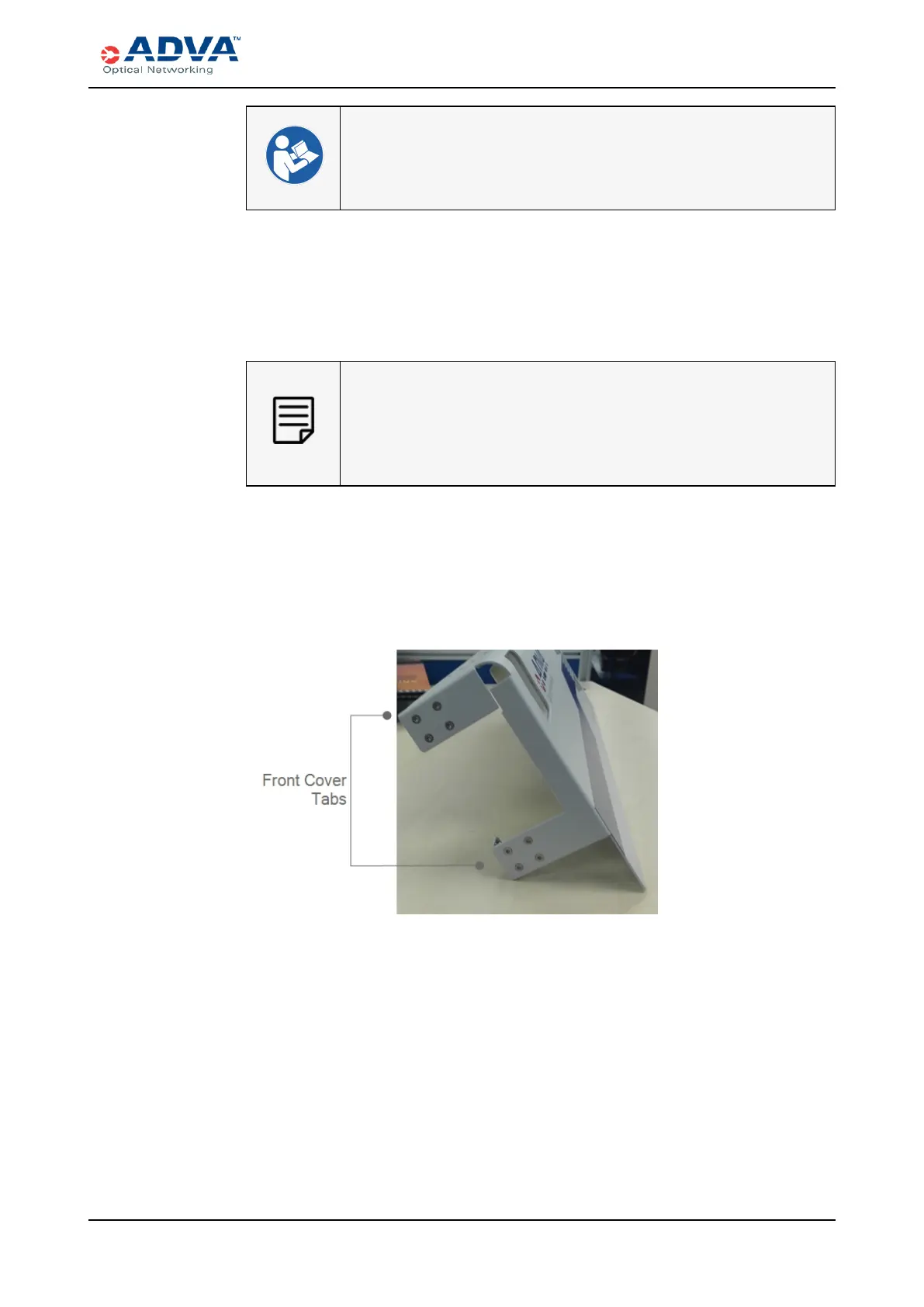

Figure 84: Front Cover Tabs
3. Grasp the extension adapter and move it out to expose four of the screw holes.
FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B 276
