Installing the SH4R and SH4R-2 Front Cover Extension

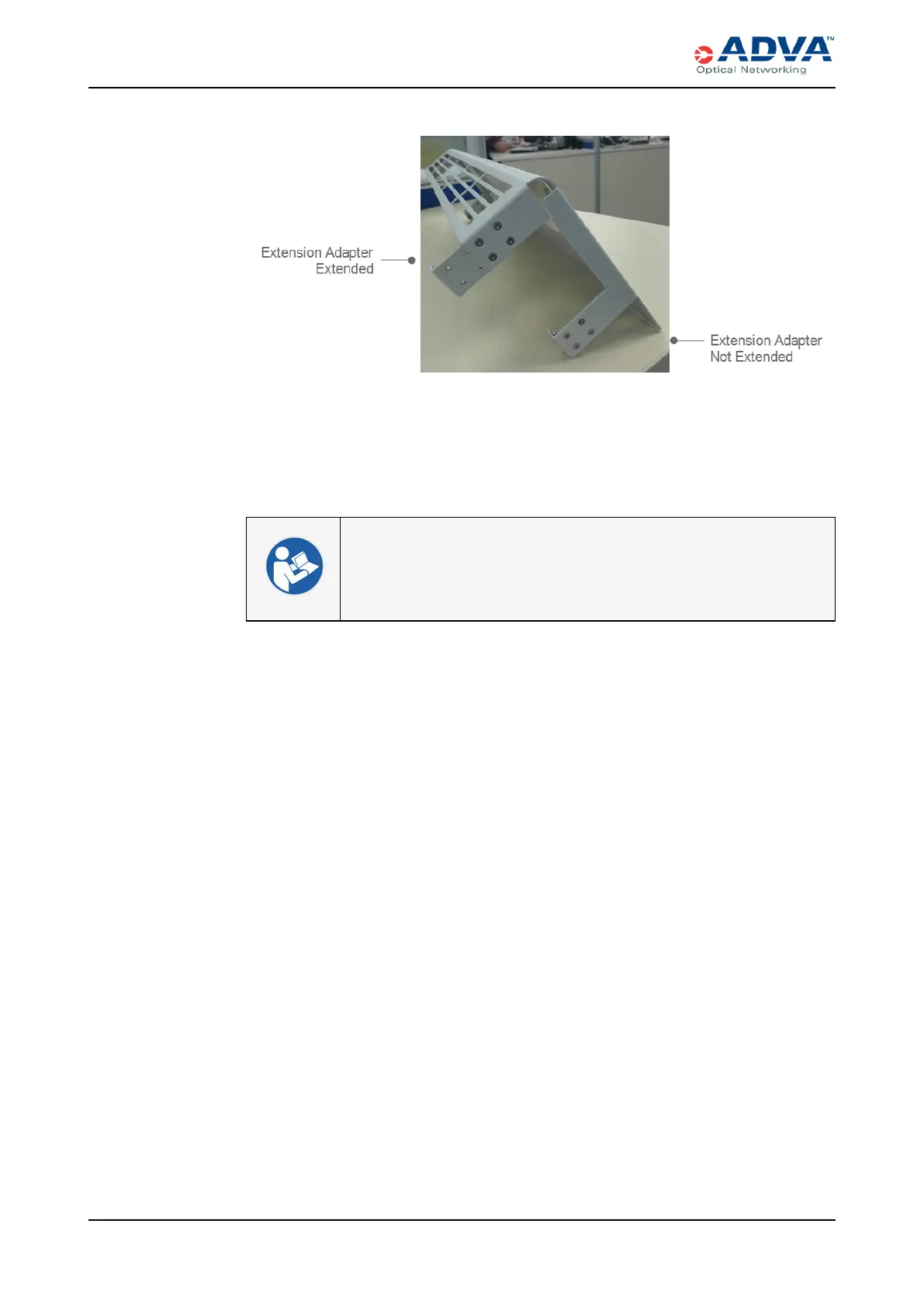

Figure 85: Extension Adapter Extended
4. Align the four screw holes, as shown in the above figure.
5. Use the Torx T10 screwdriver and the four screws to re-attach the extension adapter
to the front cover tab.
6. Repeat this procedure for all of the front cover tabs.
l Installation Overview — SH4R and SH4R-2 Shelves
l Site Preparation Checklist
