Adva 3000R7 - Port Pinouts; Ethernet Pinouts

Ethernet Pinouts
Chapter 13
Port Pinouts
Ethernet Pinouts 233
l Ethernet Cables
l USB Cables
l Cables

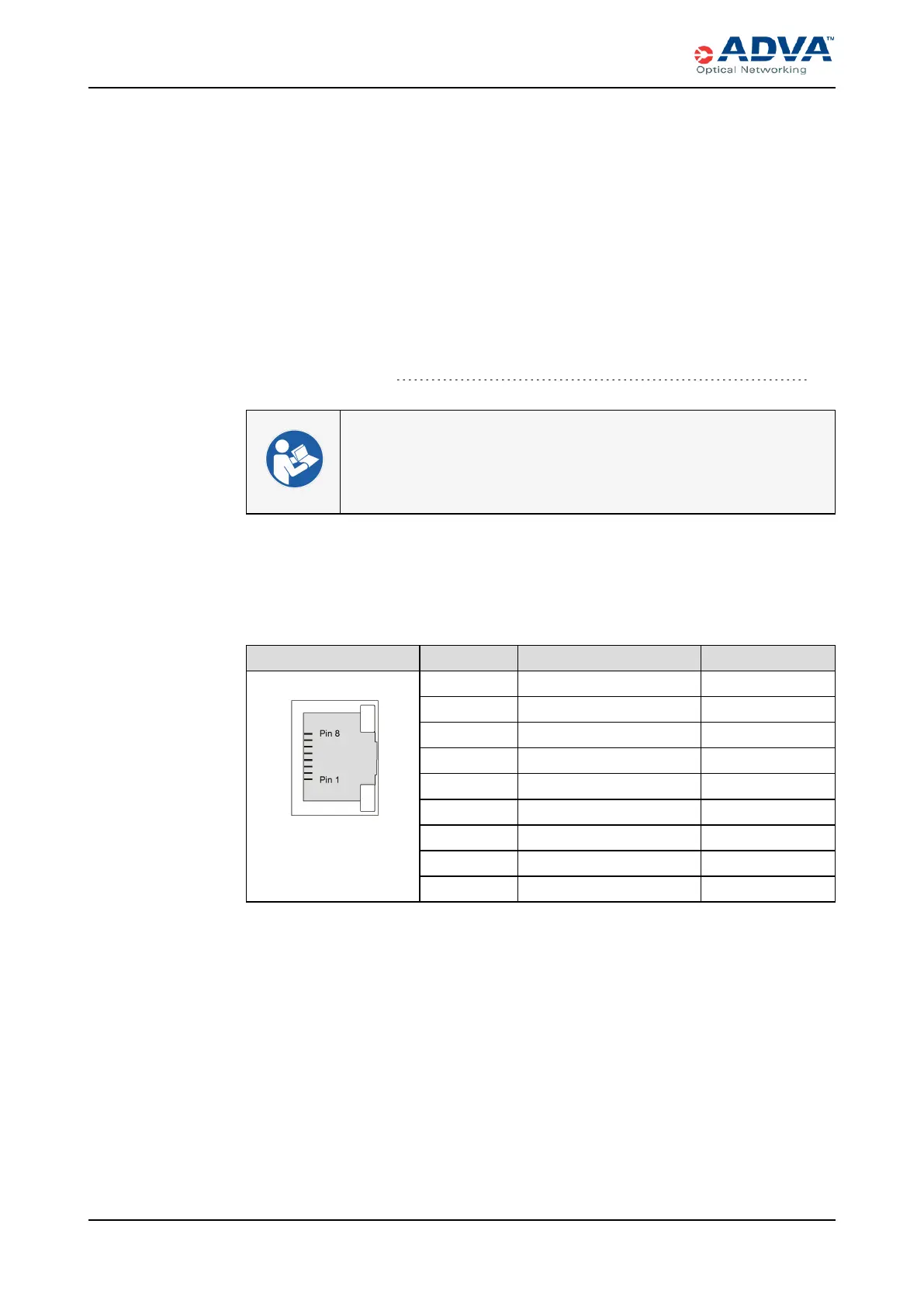

Ethernet Pinouts
RJ-45 Panel Jack Pin Number Signal Signal Direction
S S S
1 D1+ output
2 D1– input
3 D2+ output
4 D3+ output
5 D3– input
6 D2– input
7 D4+ output
8 D4– input
Table 105: Pinouts
