Mounting Bracket Kits

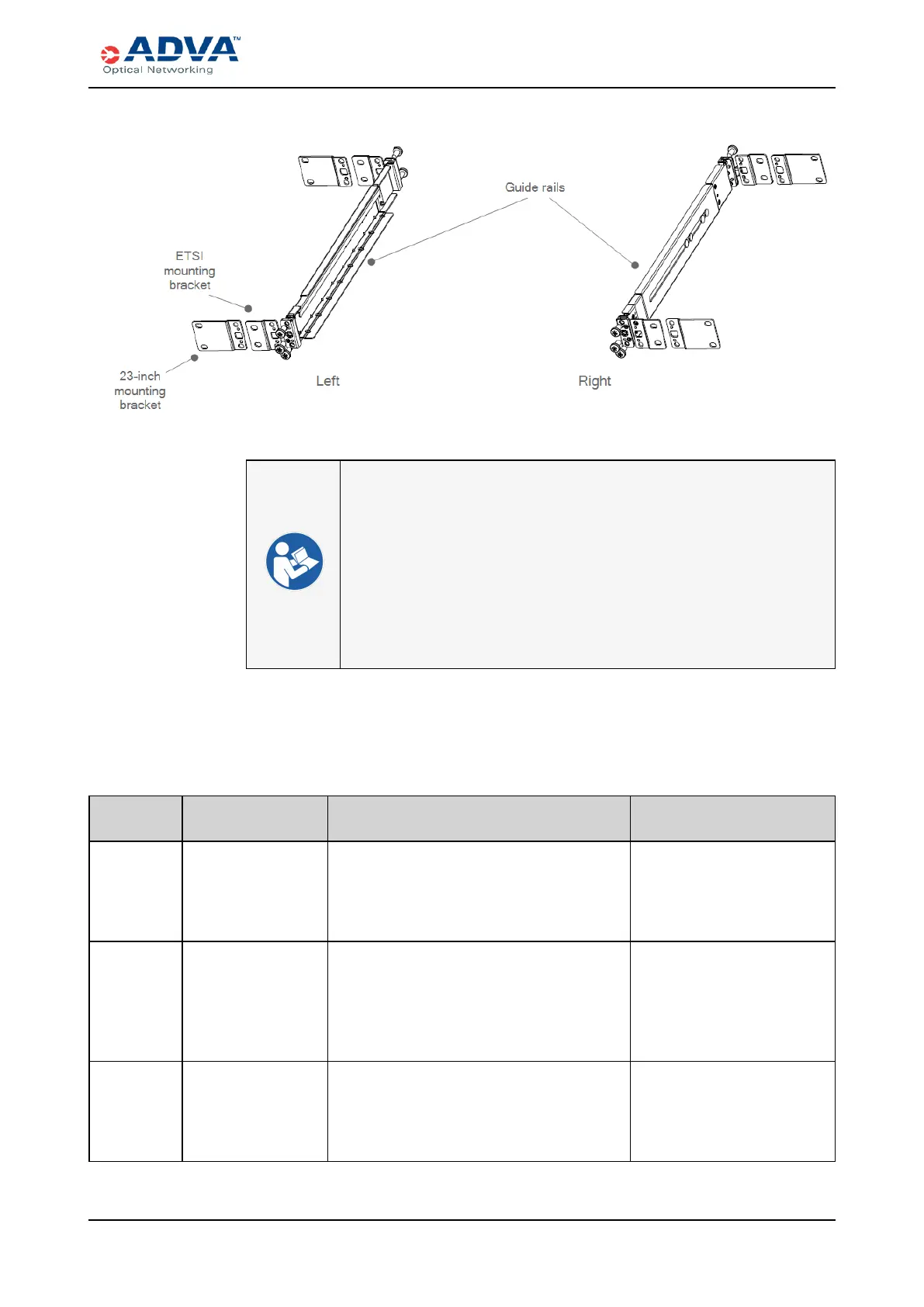

Figure 46: Guide Rail Kit — SA-GUIDE-SH1-S/L
l Accessory Installation Requirements
l Supported Rack Requirements
l Mounting Bracket Kits
l Mounting the SH4R and SH4R-2 Shelf to a Rack
l Mounting the SH1R Shelf to a Rack
l SH4R Shelf
l SH4R-2 Shelf
l SH1R Shelf
Mounting Bracket Kits
Shelf Mounting Bracket
Kit
Kit Contents Sales Item Number
SH12 SA-BRACKET-
SH12
l 2 x 19-inch mounting brackets (L and R)
l 2 x 23-inch mounting brackets (L and R)
l 2 x ETSImounting brackets (L and R)
l 12 x M4x8 screws
1013800029-01
SH4R and
SH4R-2
SA-BRACKET-
SH4
1
l 2 x 23-inch mounting brackets (L and R)
l 2 x guide rail brackets for 23-inch rack
(L and R)
l 8 x M4x6 screws
l 8 x M3x6 screws
1013800059-01
SH1R SA-BRACKET-
SH1-MID (for a two-
post rack
installation)
l 2 x 19-inch mounting brackets (L and R)
l 2 x 23-inch mounting brackets (L and R)
l 2 x ETSImounting brackets (L and R)
l 8 x M3x6 screws
1013800060-01
Table 95: Available Mounting Bracket Kits
