Shelf Cable Capacity

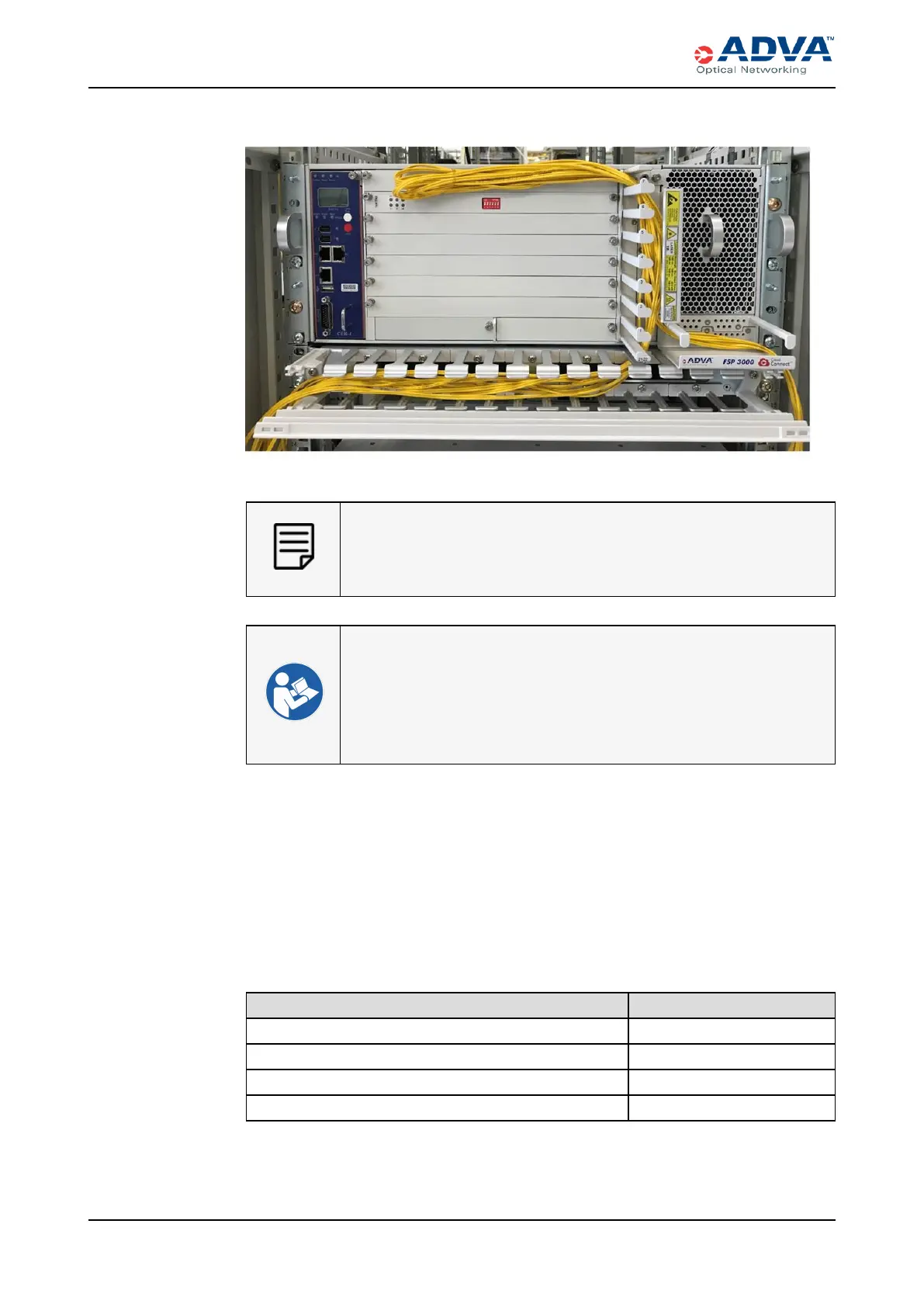

Figure 61: SH4R and SH4R-2 Cable Management Example with TR1
In this figure, the SH4R or SH4R-2 front cover is removed and the TR1
cover is open.
l Fiber Optic Cables and Accessories
l Cable and Fiber Trays
l Shelf Cable Capacity
l TR1 Shelf
l Connecting the Optical Cables
Shelf Cable Capacity
Each HDshelf comes with an attached fiber tray that has a specific cable capacity. You
can only store the maximum cable number in the shelf if you carefully guide the cables in
parallel without allowing them to cross. ADVA Optical Networking recommends that the
fiber trays not exceed the number of cables supported.
Shelf Quantity
SH12 480
SH4R and SH4R-2 214
SH1R (left side) 70
SH1R (right side) 60
Table 101: Recommended Values for LC-type Cables (2 mm)
209 FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B
