Adva 3000R7 - Installing the SH4 R and SH4 R-2 Front Cover

Installing the SH4Rand SH4R-2 Front Cover
Installing the SH4Rand SH4R-2 Front Cover
1. Verify that you are properly grounded with an anti-static wrist strap or heel strap
connected to the grounded ESD jack.
2. Align the four posts on the shelf with the four holes in the front cover tabs and press.
All four posts should click into place. Be careful not to pinch any fibers.

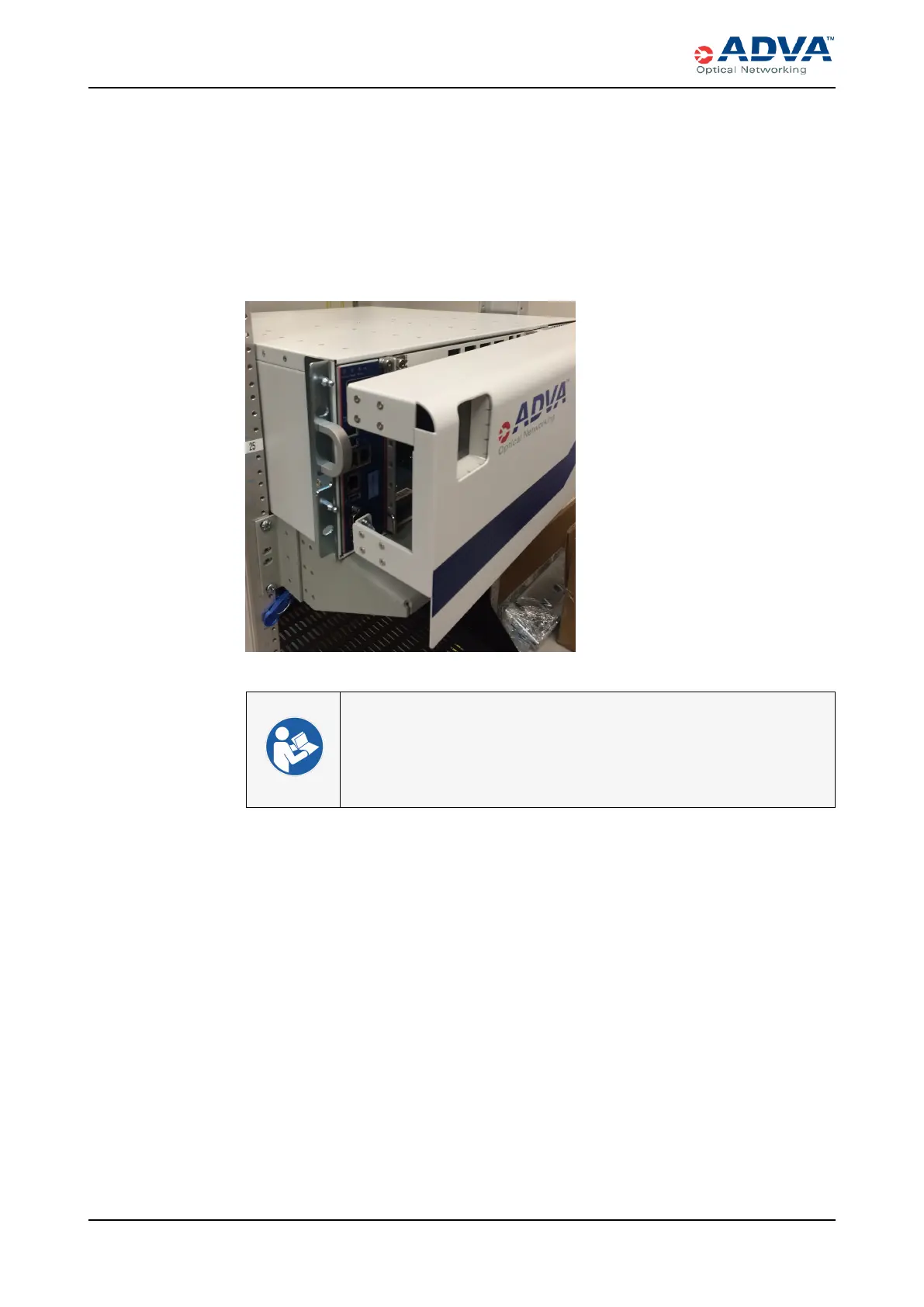

Figure 128: Positioning the Front Cover
l Electrostatic Discharge Damage Prevention and Warning
l Cooling and Airflow — SH4R
l Cooling and Airflow— SH4R-2
l Shelf Front Covers
