Adva 3000R7 - MPO12 to 8 LC Breakout Cables

Fiber Optic Cables and Accessories
MPO12 to 8 LCBreakout Cables
These variants are available for the MPO12-08LCbreakout cables.
Item Description Sales Item
Number
Optical
Connectors
Fiber Type Overall
Length
Breakout
Length
Trunk
Length
JZ/SM/MPO12-
08LC/0300
1051002614
l 1 x MPO12
l 8 x LC
Single-mode 3 m (9.8 ft) 1 m (3.3 ft) 2 m (6.6 ft)
JZ/SM/MPO12-
08LC/1000
1051002615
l 1 x MPO12
l 8 x LC
Single-mode 10 m (32.8
ft)
1 m (3.3 ft) 9 m (29.5
ft)
JZ/OM3/MPO12-
08LC/0300
1051002515
l 1 x MPO12
l 8 x LC
Multimode 50
µm OM3
3 m (9.8 ft) 1 m (3.3 ft) 2 m (6.6 ft)
JZ/OM3/MPO12-
08LC/1000
1051002516
l 1 x MPO12
l 8 x LC
Multimode 50
µm OM3
10 m (32.8
ft)
1 m (3.3 ft) 9 m (29.5
ft)

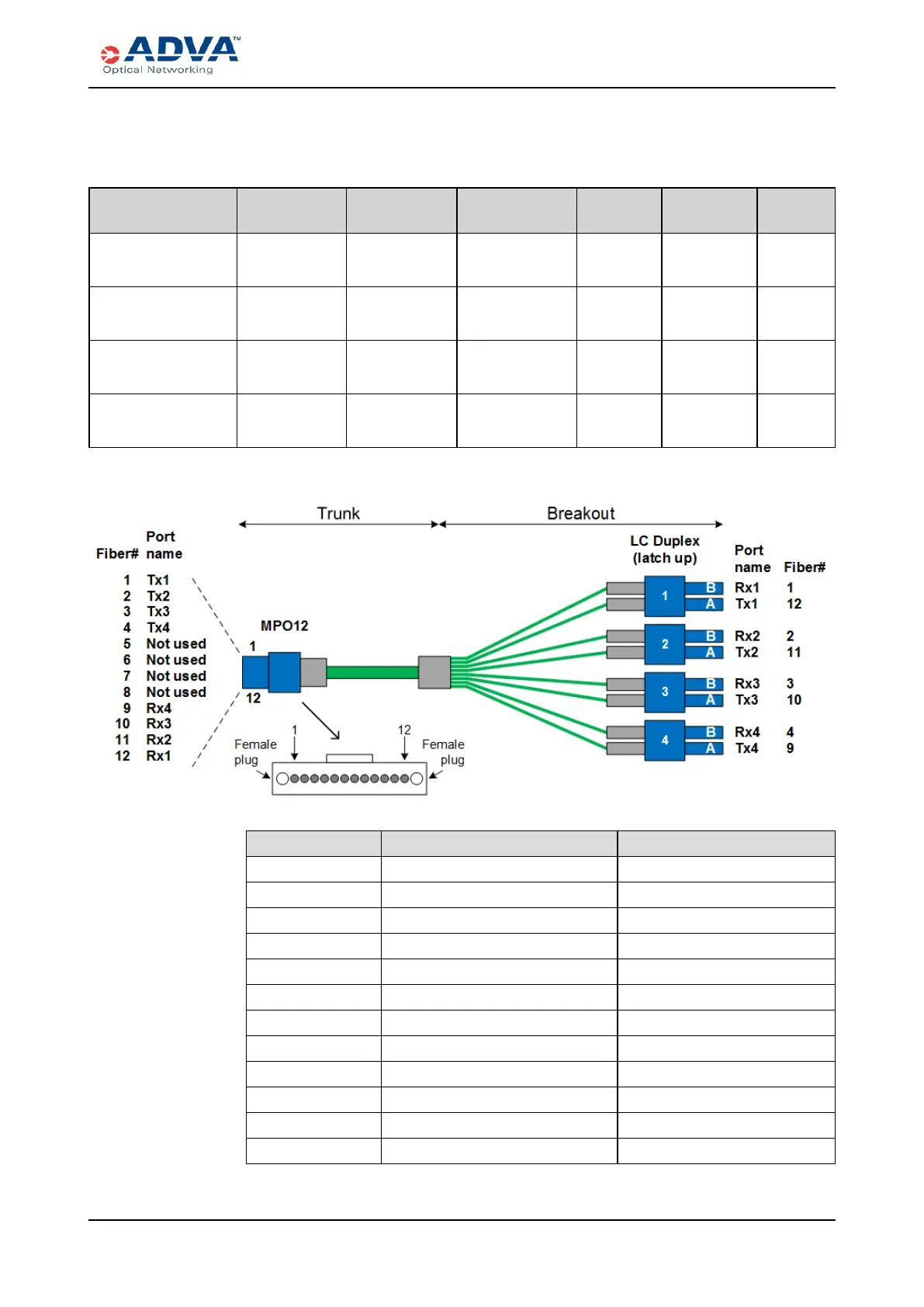

Figure 63: MPO12-08LC Breakout Cable — Fiber and Port Reference
MPO12 Port MPOPort Description LCPort Description
1 Tx1 Rx1
2 Tx2 Rx2
3 Tx3 Rx3
4 Tx4 Rx4
5 N.C. N.C.
6 N.C. N.C.
7 N.C. N.C.
8 N.C. N.C.
9 Rx4 Tx4
10 Rx3 Tx3
11 Rx2 Tx2
12 Rx1 Tx1
FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B 230
