Clearance Requirements

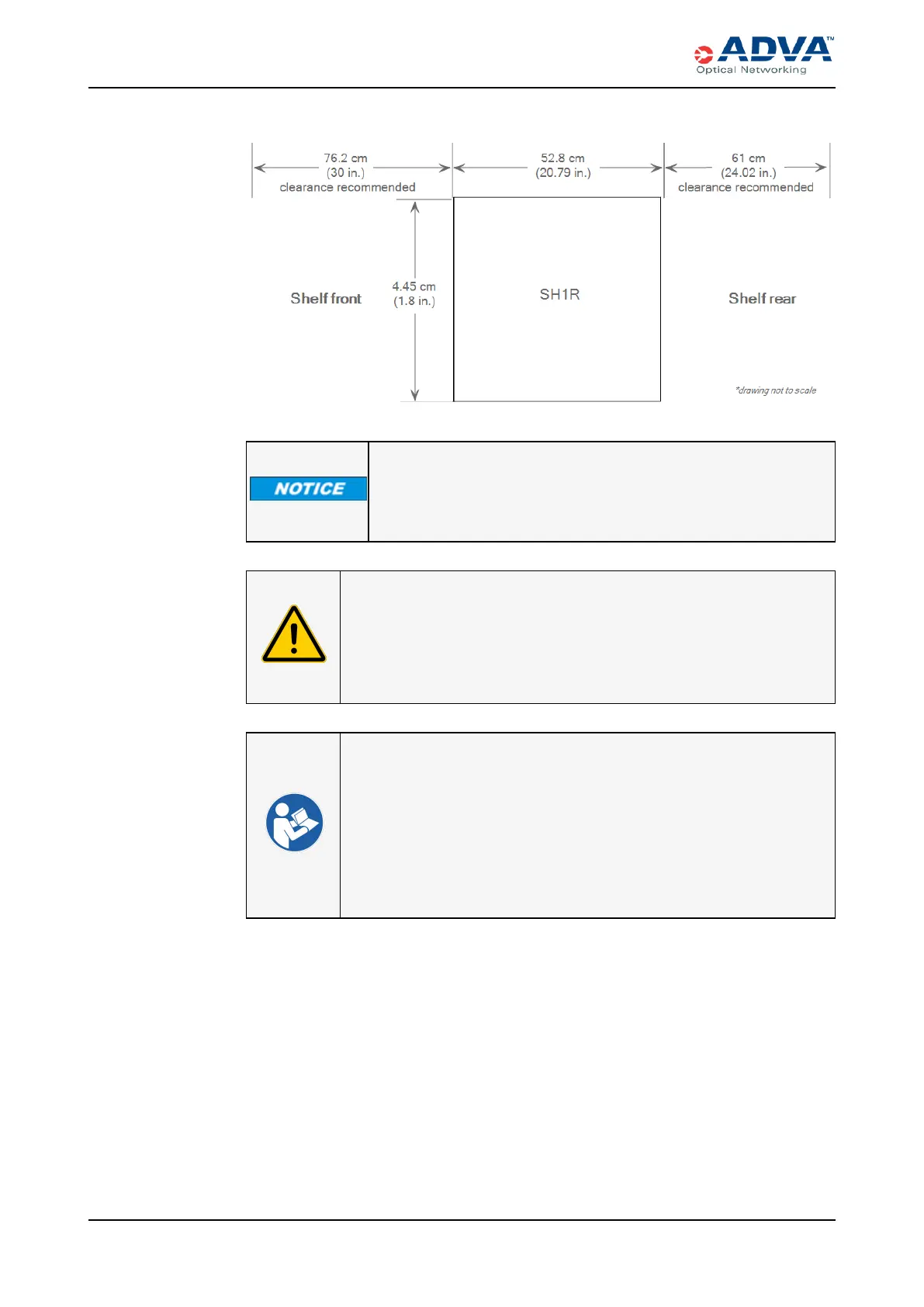

Figure 56: SH1R — Single Rack Installation
No gaps are required between shelves in a rack configuration. The
only exception is if you want to install an SH9HU or SH7HU above
an SH4R or SH4R-2. In that scenario, a 1U gap is needed between
the shelves.
CAUTION
To ensure adequate cooling of the modules in the shelf, an unobstructed
space of approximately 5 cm (2.0 in.) are necessary around the
ventilation openings of each shelf. Blocked ventilation openings lead to
considerable increase in risk of fire.
l SH12 Shelf
l SH4R Shelf
l SH4R-2 Shelf
l SH1R Shelf
l Installing or Removing Side Air Covers
l Supported Rack Requirements
l Accessory Installation Requirements
