Connecting ACPower to theSH4R and SH4R-2 Shelf

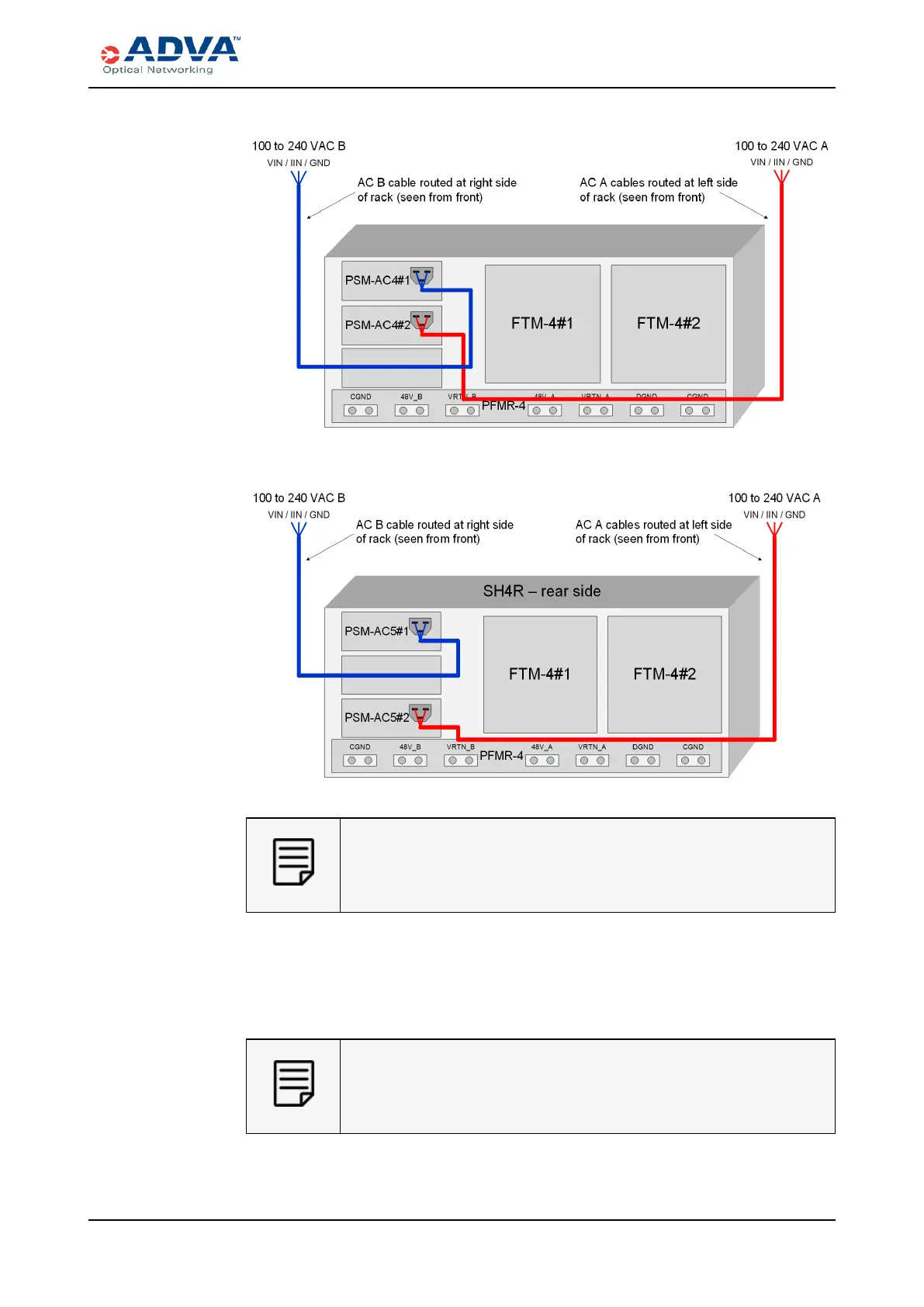

Figure 107: 1+1 Configuration Wiring - PSM-AC4
Figure 108: 1+1 Configuration Wiring - PSM-AC5
For system cooling, you must install an appropriate slot cover in the
empty PSM slots.
4. Based on your configuration, identify the PSM that will be connected first.
5. Insert the AC power coupler into the receptacle on the PSM.
6. For the PSM-AC5, secure the power cable with the cord clip.
If you have a PSM-AC5 installed in slot PSM1 going to the power B,
carefully route the cable as shown in this figure.
FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B 338
