SH4R Shelf

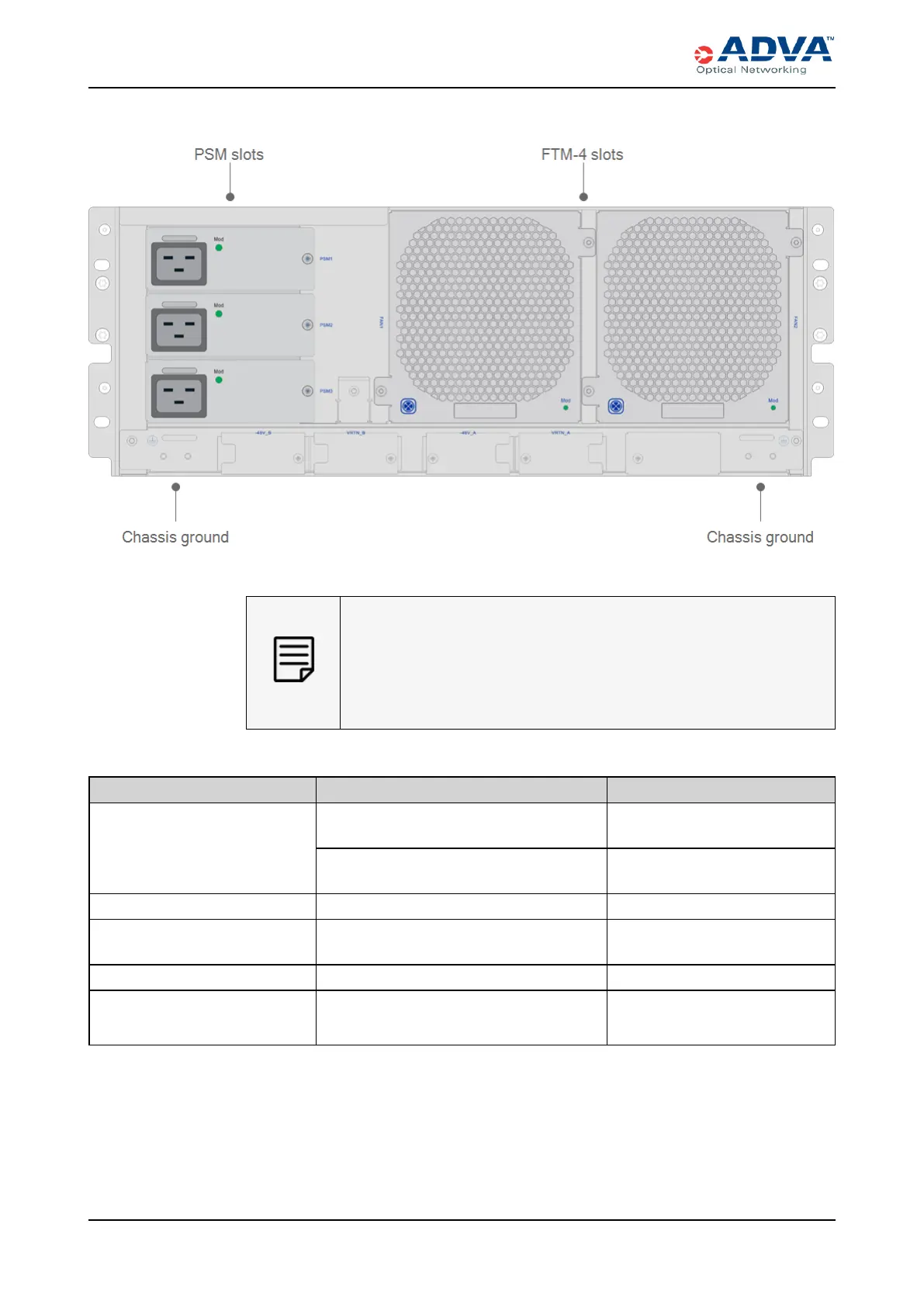

Figure 6: SH4R Shelf and Components — Rear View
The differences between SH4R HW Rev. 1.0 version and the SH4R HW
Rev. 2.0 version are adding the recessed rack mounting support and
providing more space for fiber management.
The preceding figure shows the SH4R with AC PSMs installed. The
SH4R also supports DC PSMs.
Parameter Value Notes
Sales item number 1078800051-02 HWRev. 2.0 version (introduced
in Release 1.3.1)
1078800051-01 HWRev. 1.0 version (introduced
in Release 1.1.1)
Release introduced FSP3000R7 Release 16.2
Depth 542 mm (21.5 in.) With front cover and rear power
cables
Width 443 mm (17.5 in.)
Height
l 4U
l 177.8 mm (7.0 in.)
Table 5: General Information — SH4R
