8-3-4 Keyboard Assembly Replacement Procedure (cont’d)
9.) Unplug the Data cable, as shown in Figure 8-51.
10) Lift the keyboard assembly upwards and remove it from the system.

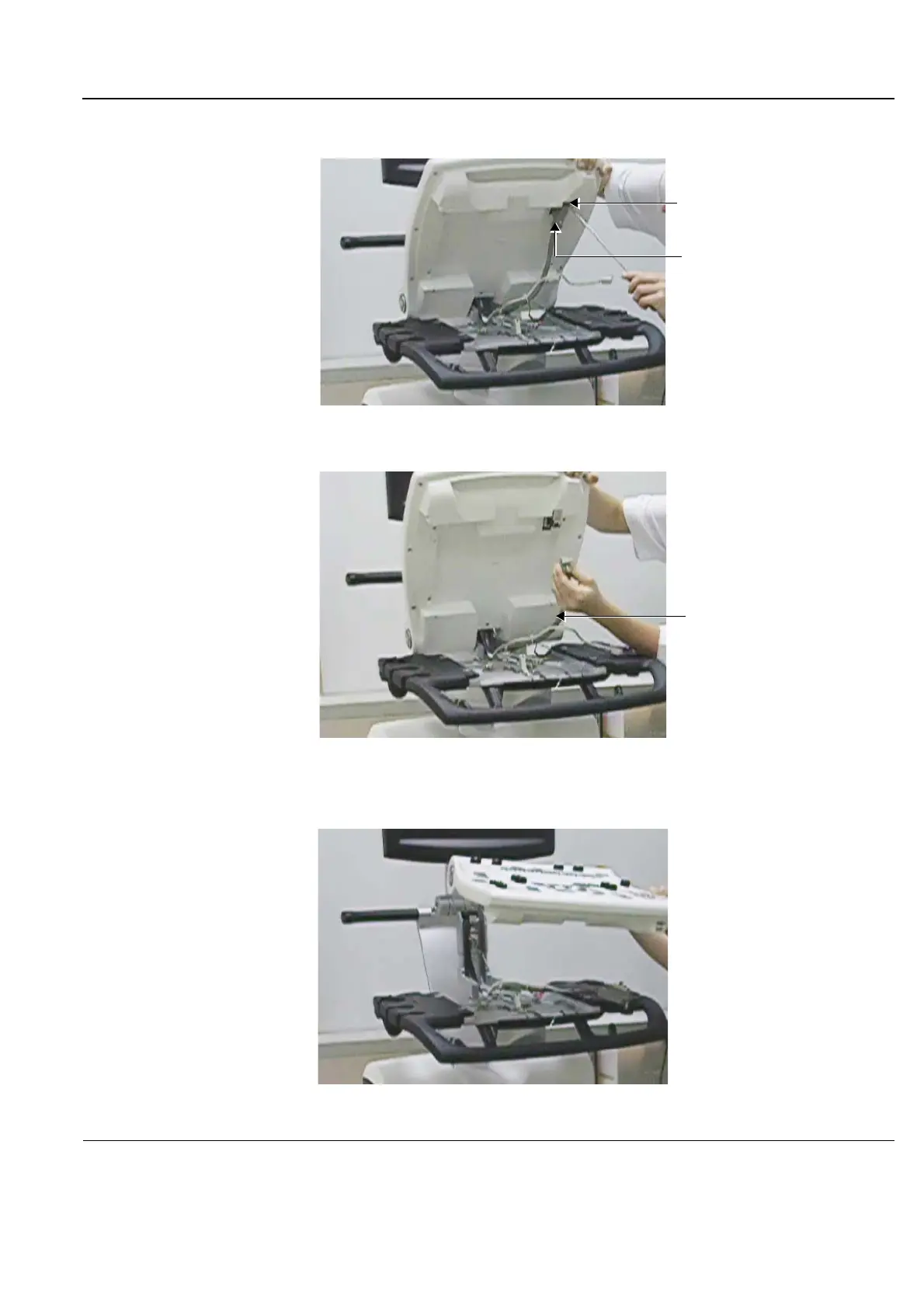

Figure 8-50 Releasing the Data Cable Securing Tags
Figure 8-51 Disconnecting the Data Cable
Figure 8-52 Removing the Keyboard Assembly from the System
Release here
Release here
Data Cable
