5.7 Judging Measurement Results (Comparator Function)
207
5
Chapter 5 ANALYZER Function
12
You can set the upper and lower limit values of each
sweep point in "5.8 Editing Judgment Points" (p. 217).

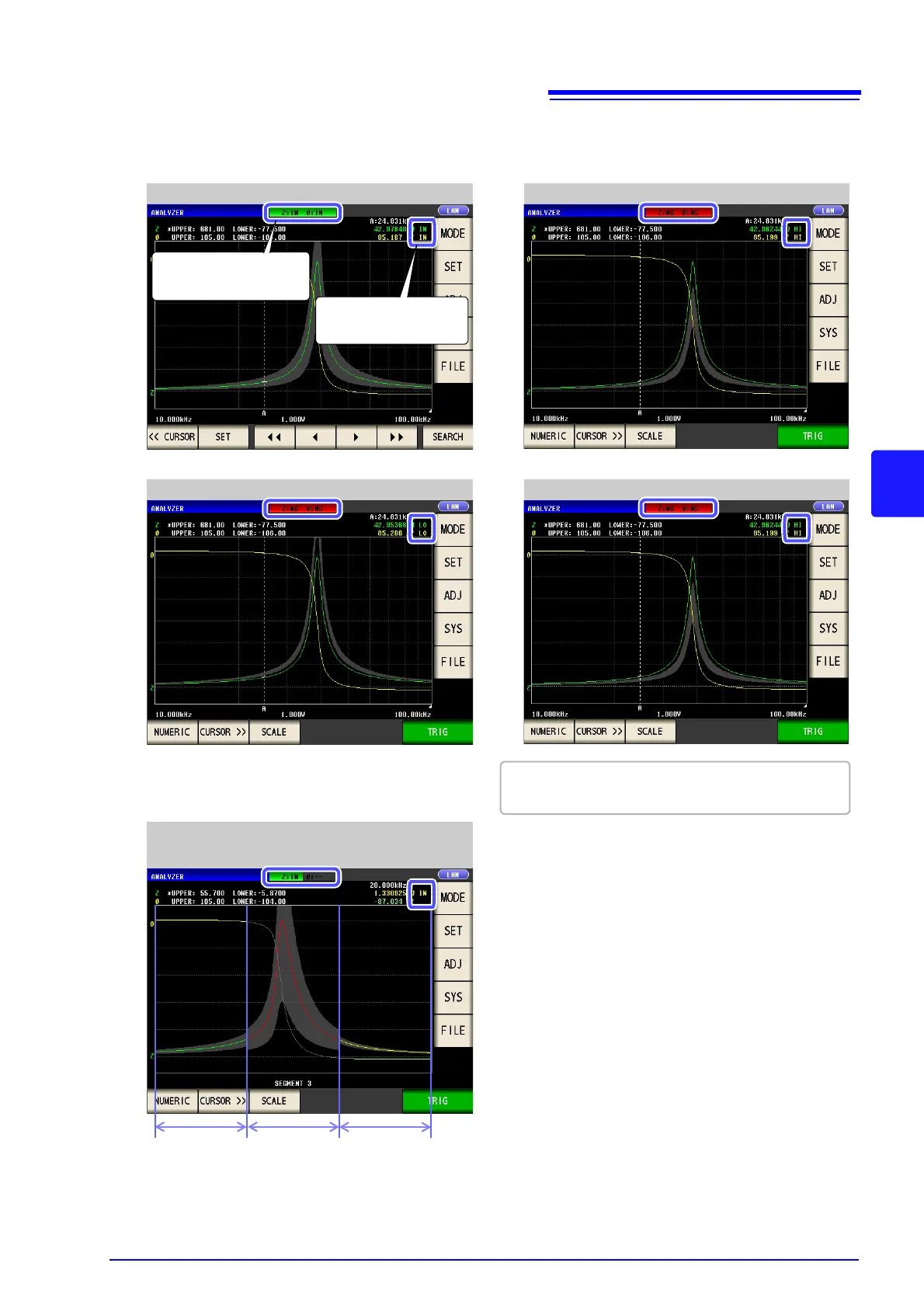

The comparator range is displayed in gray, and the judgment result is displayed after the sweep ends.
When Judgment Result is IN When Judgment Result is NG
When Judgment Result of Each Sweep is LO When Judgment Result of Each Sweep is HI
Judgment Result when Segment ON
(when Judgment Result is IN)
Segment1 Segment2 Segment3
Judgment result of each
sweep point
Judgment result of each
parameter
