5.7 Judging Measurement Results (Comparator Function)
211
5

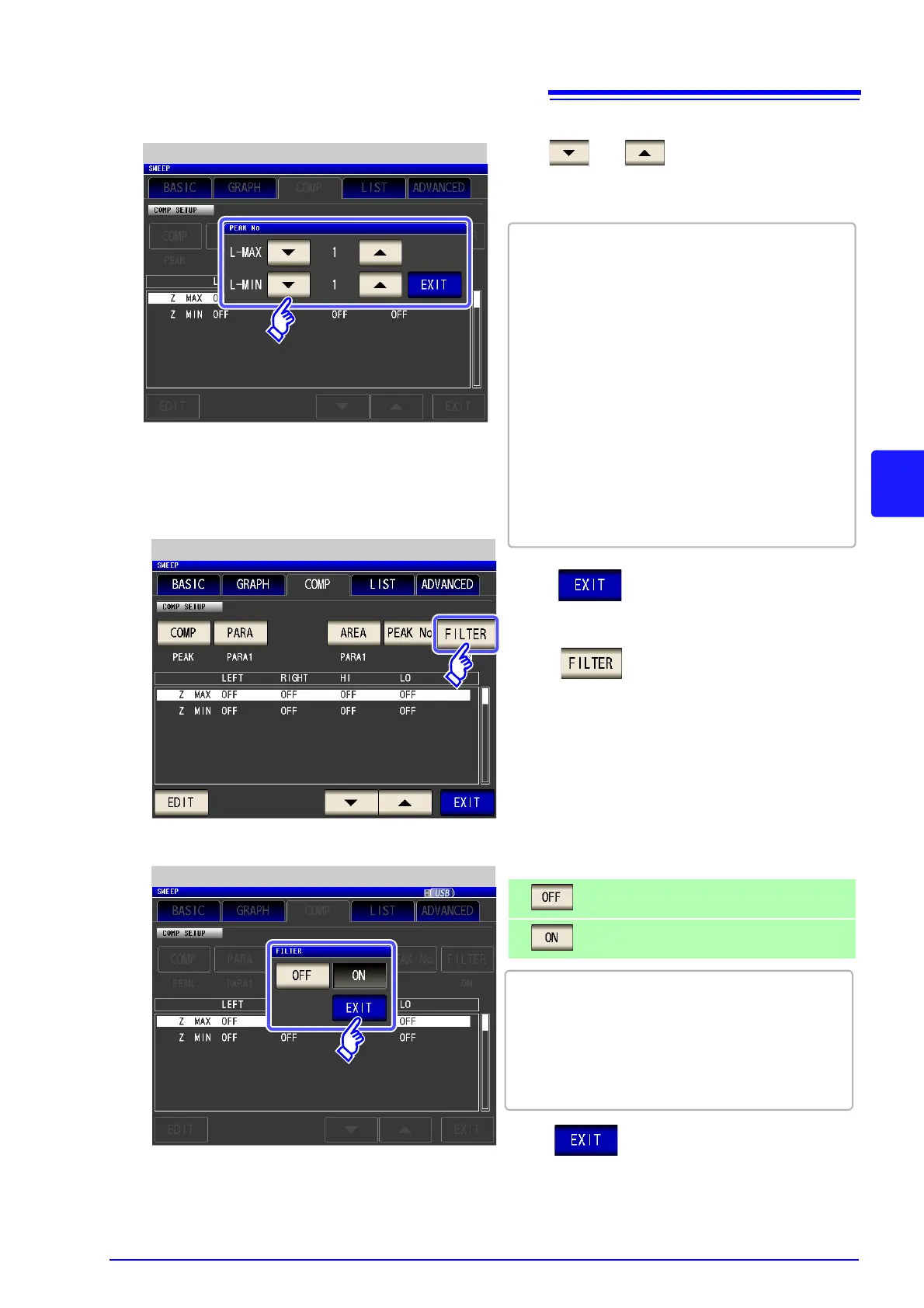

Chapter 5 ANALYZER Function
Use or to select the number of
the local maximum value or local minimum
value for peak judgment.
Peak No. Setting
9
Comparator Setting
10
Filter Setting
11
• Select the number of the local maxi-
mum value.
With regards to the numbers, the val-
ues are numbered like “1, 2, 3..." in
order from the largest measurement
value of the detected local maximum
values.
• Settable range: 1 to 5
L-MAX
L-MIN
• Select the number of the local mini-
mum value.
With regards to the numbers, the val-
ues are numbered like “1, 2, 3..." in
order from the smallest measurement
value of the detected local minimum
values.
• Settable range: 1 to 5
Press to confirm the setting.
Press .
Press to confirm the setting.
See "Search Function Setting" (p. 190)
Select enable or disable for the filter.
Disables the filter function.
Enables the filter function.
• Applying a filter allows you to reduce the misjudg-
ments of variations in measurement values caused
by noise and other interference being judged as
local maximum values or local minimum values.
• The filter setting is synchronized with the filter set-
ting of the cursor setting.
See: "Set the filter." (p. 192)
