5.8 Editing Judgment Points
218
Measurement parameter Settable range
Frequency 4 Hz to 5 MHz
Open circuit voltage level 0.005 V to 5.000 V
Voltage level between test
sample terminals
0.005 V to 5.000 V
Current level between test
sample terminals
0.01 mA to 50 mA
3

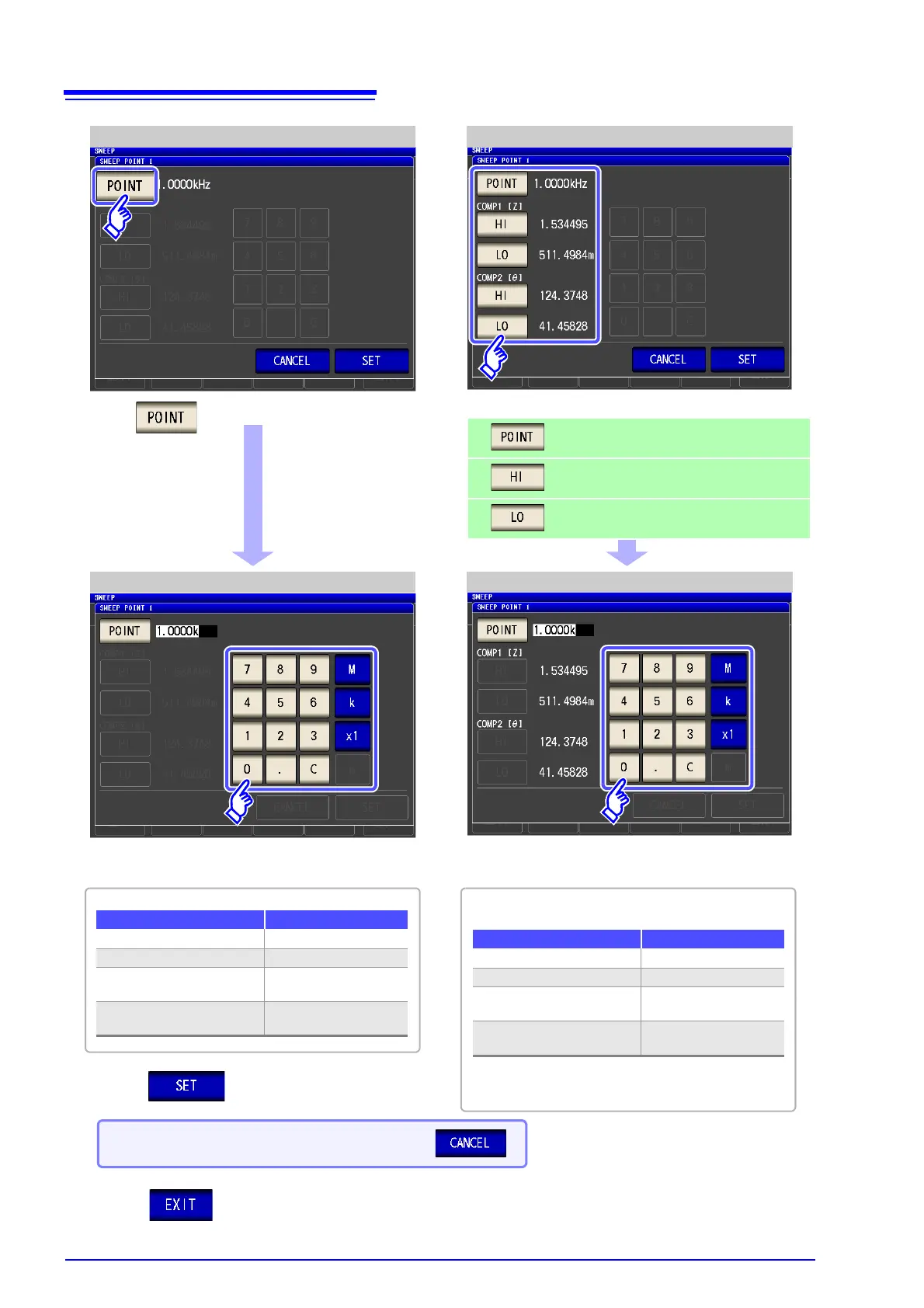

Set each of the following settings.
Edit Sweep Point Sweep Point & Upper/Lower Limit Value Settings
6
Press to close the setting screen.
Press .
Set the sweep point.
Set the upper limit value of the comparator.
Set the lower limit value of the comparator.
4
Sweep Point Setting Sweep Point Setting
Use the numeric keypad to enter the setting of the sweep point and press a unit key to confirm the
setting.
5
Press to close the setting screen.
When you want to cancel the setting: Press .
Settable range Settable range
• Sweep point:
Measurement parameter Settable range
Frequency 4 Hz to 5 MHz
Open circuit voltage level 0.005 V to 5.000 V
Voltage level between test
sample terminals
0.005 V to 5.000 V
Current level between test
sample terminals
0.01 mA to 50 mA
• Upper limit value: -9.999999G to 9.999999G
• Lower limit value: -9.999999G to 9.999999G
