The compensation values from last time are dis-
played in a confirmation screen.
(If compensation has never been performed, the
compensation values become 0.)
5

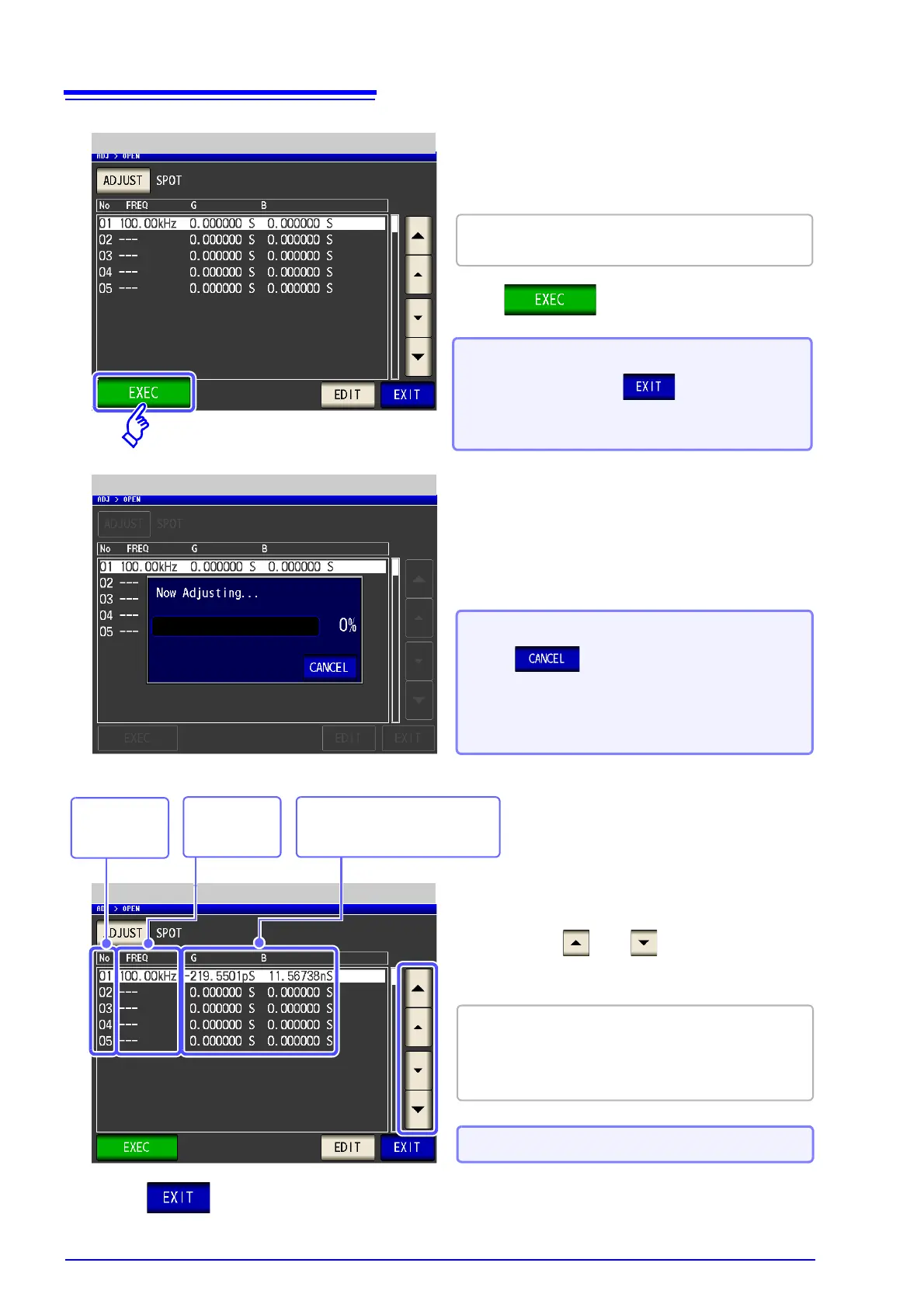

Spot Compensation Value Setting
6
Compensation starts.
Compensation value acquisition time:
Approximately 5 seconds
Performing Open Compensation
Check that the measurement cable is in an open circuit
state.
Press .
When you want to cancel compensation:
Press .
Compensation is cancelled and the compensation
screen is redisplayed.
(The open circuit compensation value state from last
time remains.)
When you do not want to acquire the compen-
sation values: Press .
The setting screen is redisplayed, and the compensation
values from last time become valid.
Spot Compensation
7
When compensation failed: (p. 279)
• If compensation ends normally, the conductance
and susceptance are displayed.
• Compensation can be performed for impedances of at
least 1 k
.
8
Press to close the setting screen.
Indicates the
compensation
numbers.
You can use and to check the Conduc-
tance, susceptance of each compensation point.
Indicates the
measurement
frequencies.
Indicates the compensation results.
(Conductance, susceptance)
