4.1 About LCR function

40

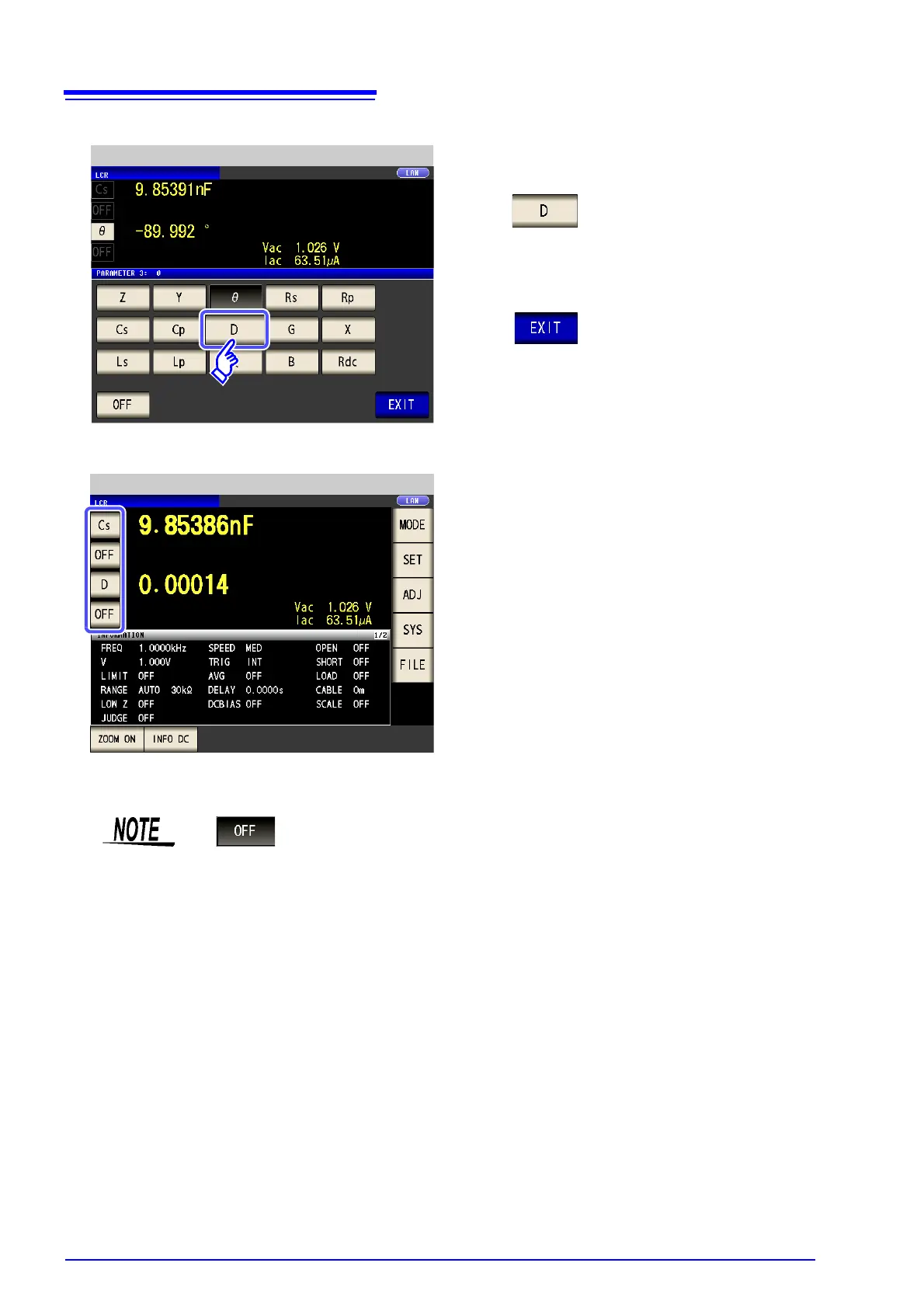

If is selected in the parameter setting, a measurement value is not displayed.

Press .

4

Press to confirm the setting.

Parameter Setting

5

Cs and D are set as the parameters.

LCR Initial Screen
