3
4
Use or to enter the limit value.
Select ON/ OFF for the limit function.
Sets the limit function to OFF.
Sets the limit function to ON.

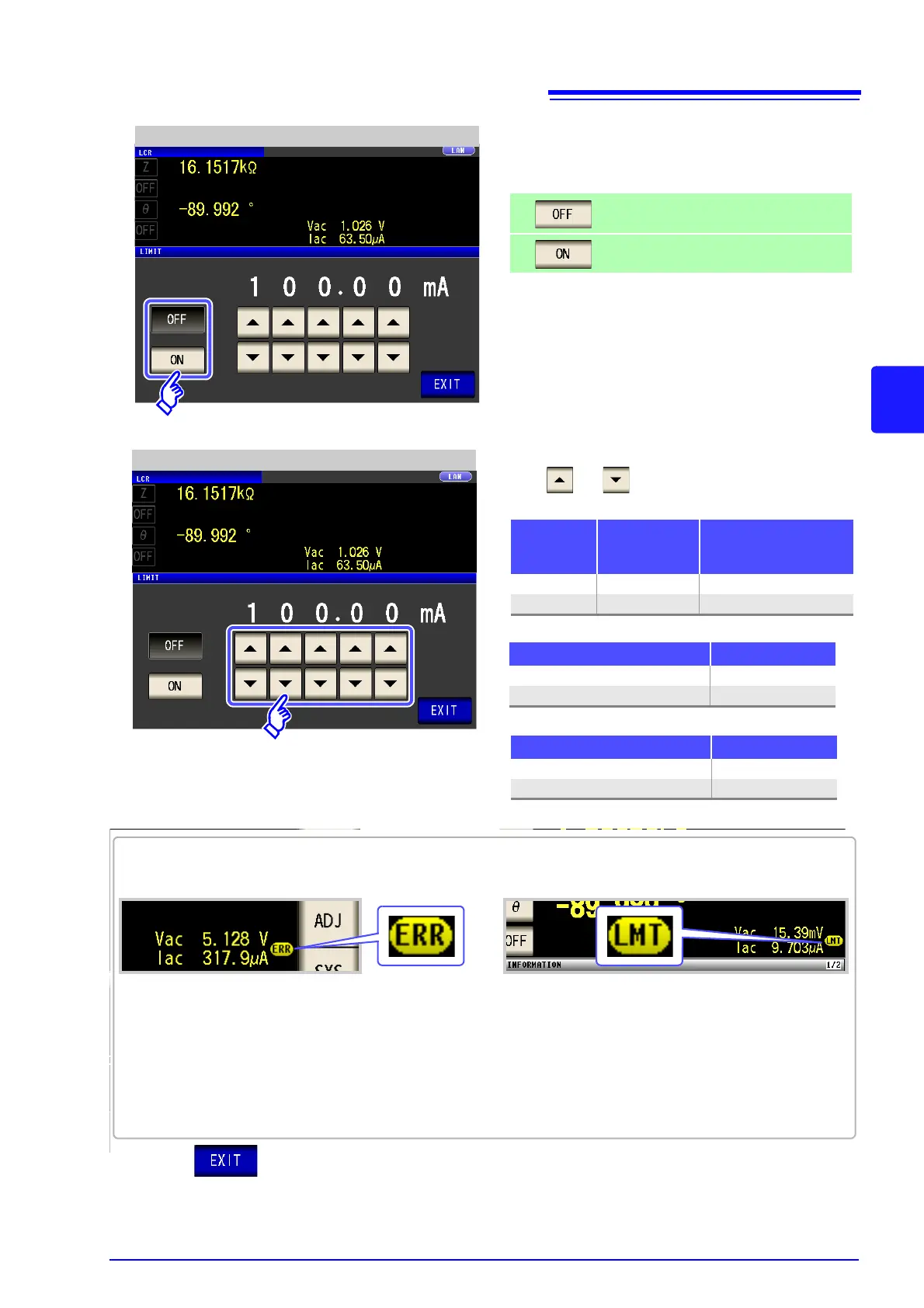

Current Limit Setting
Current Limit Setting
Limit range
Measure-
ment signal
level
Limit set Setting range
V, CV Current limit 0.01 mA to 100.00 mA
CC Voltage limit 0.005 V to 5 V
Voltage limit accuracy
Frequency Accuracy
4 Hz to 1.000 MHz ±10%±10 mV
1.0001 MHz to 5.000 MHz ±20%±10 mV
Current limit accuracy
Frequency Accuracy
4 Hz to 1.000 MHz ±10%±10
A
1.0001 MHz to 5.000 MHz ±20%±10 A
Example: When constant voltage (CV) setting
When the limit function is ON, the display is as shown below.
Depending on the limit value setting, the voltage or
current applied to the sample may not reach the
measurement signal level.
At this time, the voltage or current which exceeds the lim-
it value is not being applied to the sample under test. You
should change the test signal level so that it does not ex-
ceed the limit value.
If the voltage or current which is applied to the
sample under test exceeds the limit value (the
current exceeding the limit value flows through
the sample even when the open-circuit voltage is
set to minimum value.)
5
Press to close the setting screen.
