4.3 Setting DC Resistance Measurement
68
Relationship between the measurement signal level of the instrument and the sample is as follows.
• When normal mode (p. 74)
• When Low Z high accuracy mode (p. 74)
• When normal mode (p. 74)
• When Low Z high accuracy mode (p. 74)
• When normal mode (p. 74)
• When Low Z high accuracy mode (p. 74)

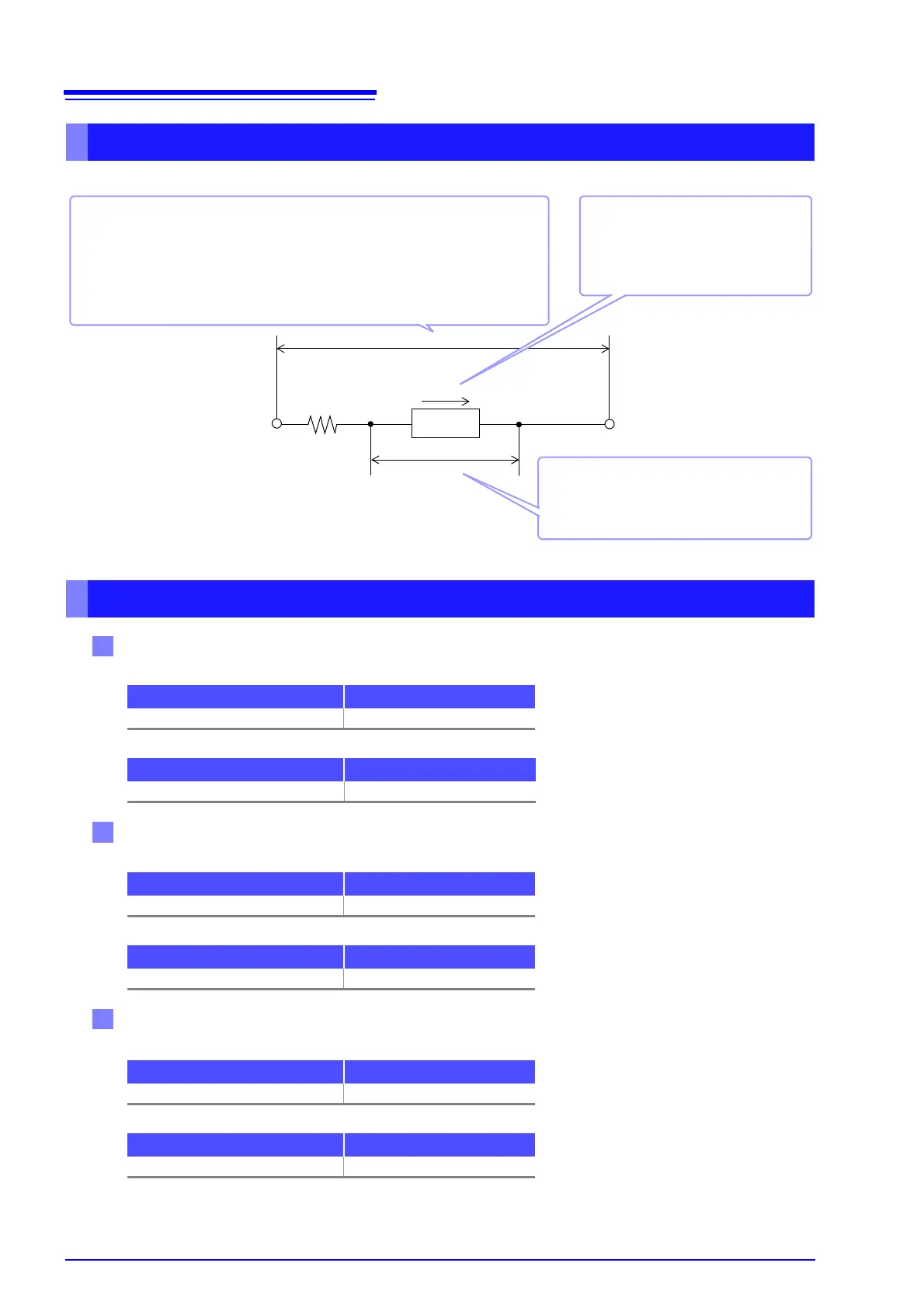

About the test signal level
For setting range and accuracy
Output impedance
Object under
test
CC
CV
HL
V
Constant current level (CC)
You should select this if you wish
to set the current passing through
the object to be tested to a con-
stant value.
Constant voltage level (CV)
You should select this if you wish to set the
voltage across the terminals of the object
to be tested to a constant value.
Open circuit voltage level (V)
This voltage value is the value which is applied across the two terminals of
the series combination of the object which is being tested and the output
impedance. As for the voltage which is applied across the terminals of the
object which is being tested (by itself), if required, you should either check
the monitor voltage value, or select constant voltage (CV) and set a voltage
value across these terminals.
Open circuit voltage level (V) setting
Open circuit voltage setting range Open circuit voltage accuracy
0.10 to 2.50 V
±10% ±10 mV
Open circuit voltage setting range Open circuit voltage accuracy
0.10 to 1.00 V
±10% ±10 mV
Constant voltage level (CV) setting
Constant voltage setting range Constant voltage accuracy
0.10 to 2.50 V
±10% ±10 mV
Constant voltage setting range Constant voltage accuracy
0.10 to 1.00 V
±10% ±10 mV
Constant current setting range Constant current accuracy
0.01 to 25.00 mA
±10% ±10 A
Constant current setting range Constant current accuracy
0.01 to 100.00 mA
±10% ±10 A
Constant current level (CC) setting
