3
4

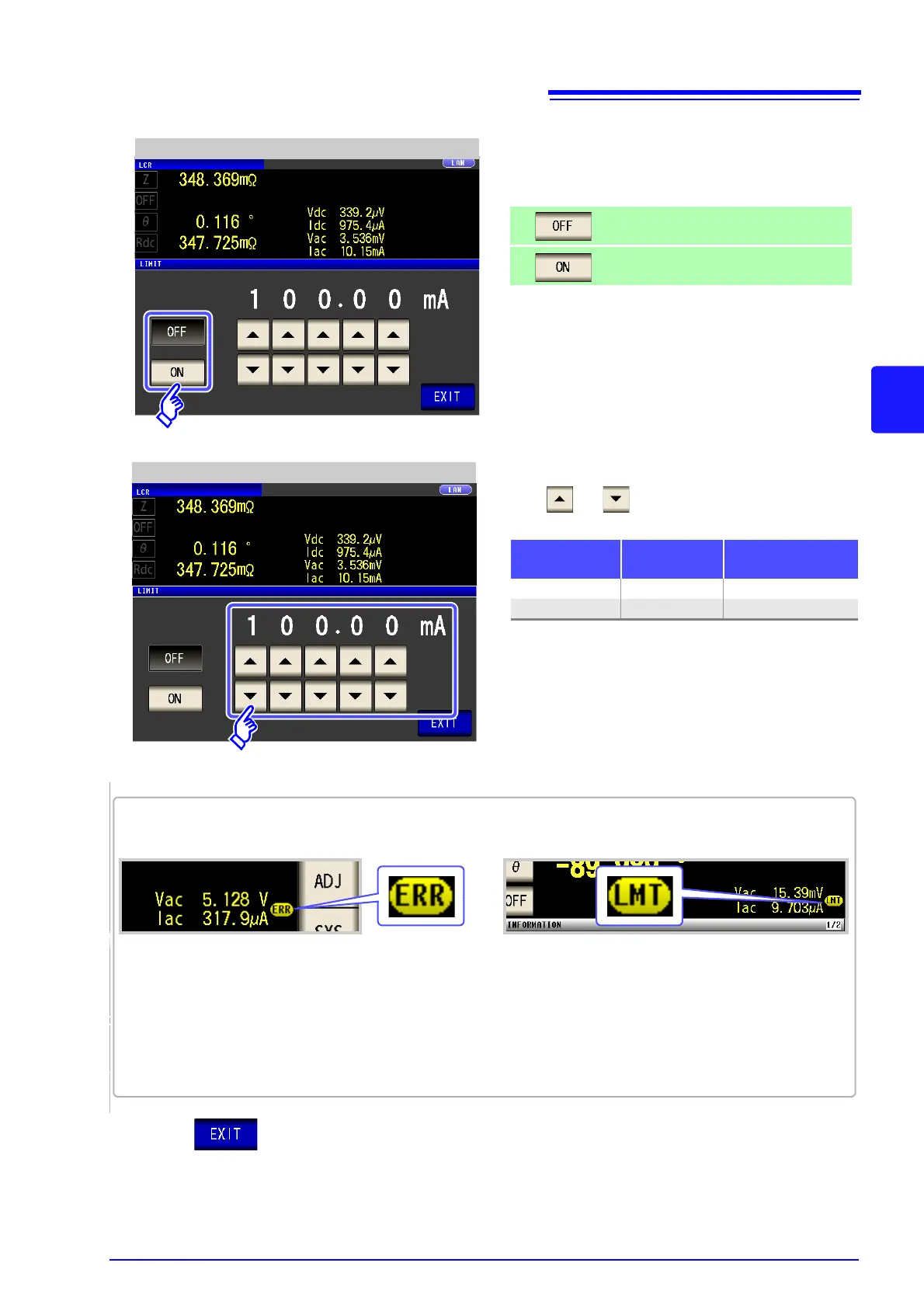

Use or to enter a limit value.
Select ON/ OFF for the limit function.
Set the limit function to OFF.
Set the limit function to ON.
Measurement Signal Level Setting
Measurement Signal Level Setting
Limit range:
Measurement
signal level
Limit set Setting range
V, CV Current limit 0.01 mA to 100 mA
CC Voltage limit 0.10 V to 2.5 V
Voltage limit accuracy: ±10%±10 mV
Current limit accuracy: ±10%±10 A
Example: When constant voltage (CV) setting
When the limit function is ON, the display is as shown below.
If the test signal level which is being applied to the
sample under test exceeds the limit value. Then
the test signal level is stopped changing.
At this time, the voltage or current which exceeds the lim-
it value is not being applied to the sample under test. You
should change the test signal level so that it does not ex-
ceed the limit value.
If the voltage or current which is applied to the
sample under test exceeds the limit value (the
current exceeding the limit value flows through
the sample even when the open-circuit voltage is
set to minimum value.)
Press to close the setting screen.
5
