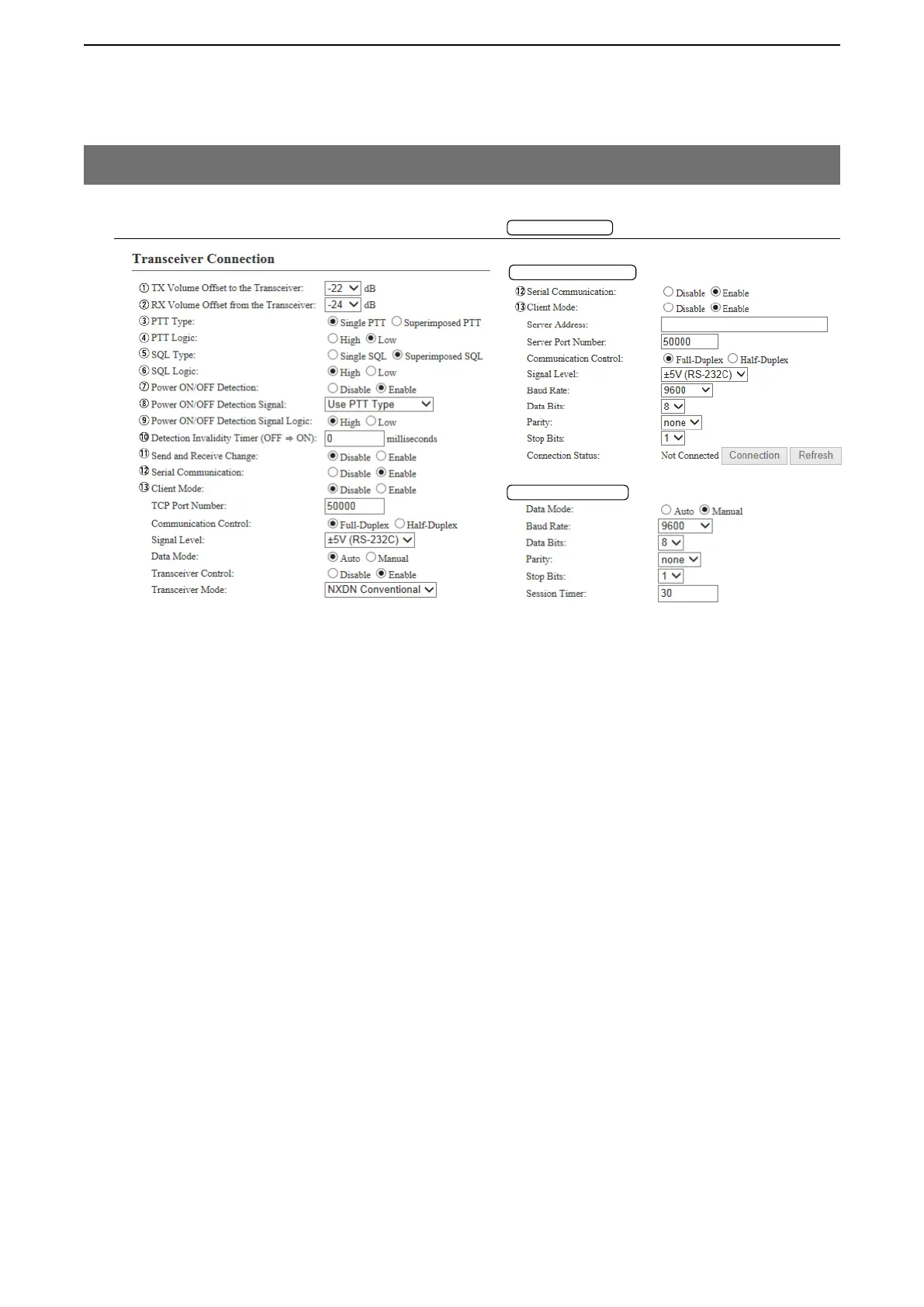

BRIDGE MODE SETTING SCREEN
5-67
8. [Port Settings] Menu
M Transceiver 1 (TRX1)/Transceiver 2 (TRX2)(continued)
"General Setting"
t SQL Type ………………… Select the squelch signal type. (Default: Single SQL)
• Single SQL: The squelch signal is separately input.
• Superimposed SQL: The squelch signal is superimposed on the speaker
input line (A3 terminal).
y SQL Logic ………………… Select the squelch detection type. (Default: High)
• High: The squelch line becomes “High” while receiving signal. (Active High)
• Low: The squelch line becomes “Low” while receiving signal. (Active Low)
u Power ON/OFF Detection … Select “Enable” to detect the power status (ON/OFF) of the radio.
(Default: Disable)
i Power ON/OFF Detection
Signal ……………………… Select the PTT type to detect the power status (ON/OFF) of the radio.
(Default: Use PTT Type)
• Single PTT: The microphone line and PTT input line are separated.
• Superimposed PTT: The PTT input line is superimposed on the MIC input
(A1 terminal).
• Use PTT Type: The PTT type selected in [PTT Type] (e) is used.
o Power ON/OFF Detection
Signal Logic ……………… Select the logic to detect the power status (ON/OFF) of the radio. (Default: High)
• High: Becomes High when the radio’s power is ON. (Active high)
• Low: Becomes Low when the radio’s power is ON. (Active low)
[Port Settings]–[Transceiver 1 (TRX1)/[Transceiver 2 (TRX2)]
*
1
Appears only when “Enable” is selected in [Power Detection].
*
2
Appears only when “Enable” is selected in [Serial Communication].
*
3
Appears only when “Enable” is selected in [Transceiver Control].
*
1
*
1
*
2
*
2
*
3
*
2
*
2
*
2
*
2
*
2
!4
!9
@0
@1
@4
@4
@5
@5
@6
@7
@3
@3
@2
@2
Client Mode = "Enable"
Data Mode = "Manual"
!5
!5
!6
!6
!7
!7
!8
