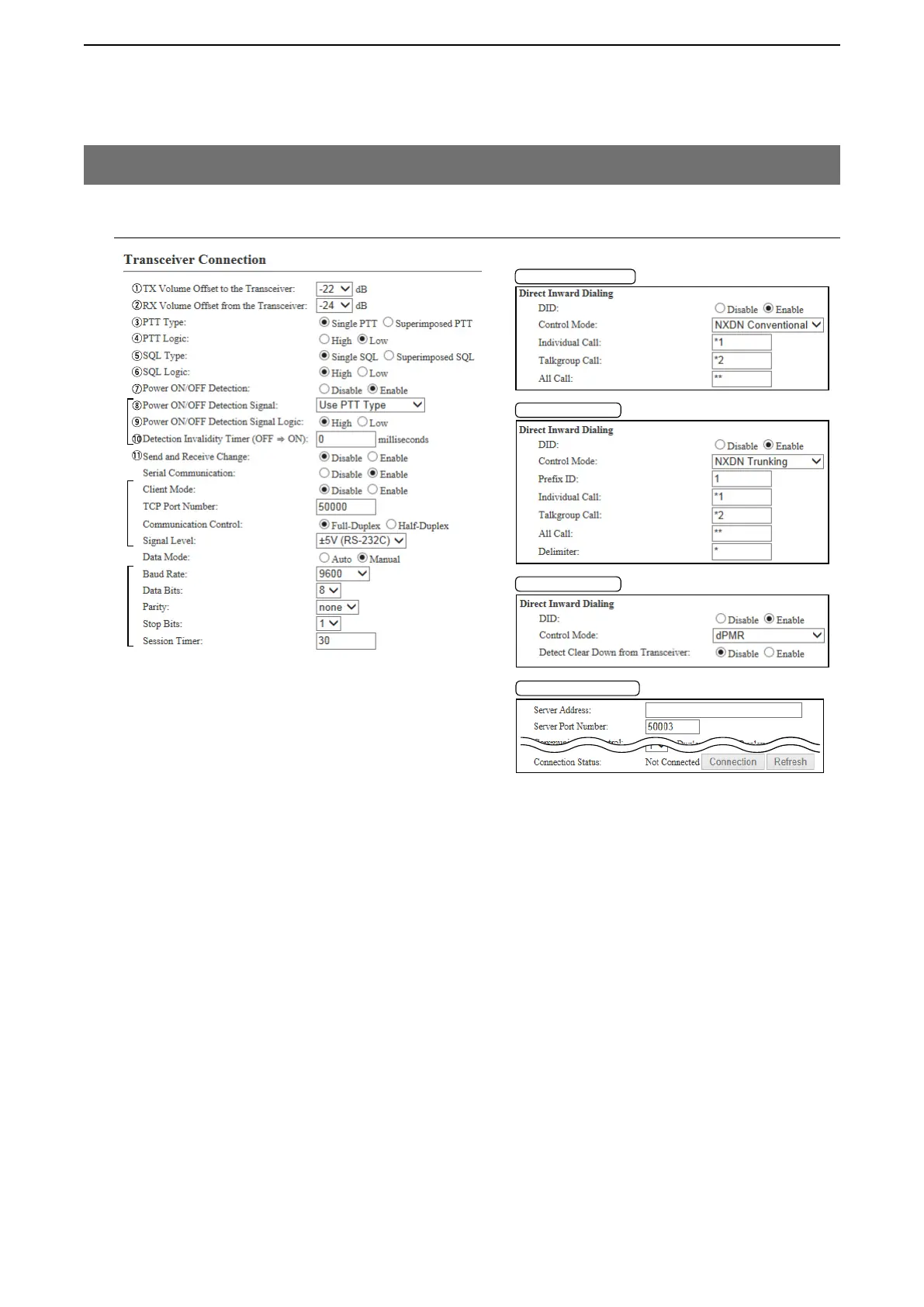

CONVERTER MODE SETTING SCREEN
6-69
!7 Data Mode ………………… [Data Mode] selects the communication method for the Serial Communication
between a device and the VE-PG3. (Default: Auto)
• Auto: Automatically starts the serial communication from a Virtual Serial Port
installed on your PC.
• Manual: Manually sets a serial communication method for a device.
* [Baud Rate] (!8) – [Session Timer] (@2) are displayed when
“Manual” is selected.
!8 Baud Rate ………………… Select a serial communication speed between a device and the VE-PG3.
(Default: 9600)
!9 Data Bits
Select the number of bits for the serial communication between 5 and 8.
(Default: 8)
@0 Parity
Select a parity bit of “none,” “odd,” or “even.” (Default: none)
@1 Stop Bits
Select the stop bit length for the data of 1 or 2. (Default: 1)
9. [Port Settings] Menu (continued)
M Transceiver 1 (TRX1)/Transceiver 2 (TRX2)
[Port Settings]–[Transceiver 1 (TRX1)/[Transceiver 2 (TRX2)]
*
1
Appears only when “Enable” is selected in [Power Detection].
*
2
Appears only when “Enable” is selected in [Serial Communication].
*
3
Appears only when “Manual” is selected in [Data Mode].
*
1
*
2
*
3
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@3
@3
@4
@4
@4
@5
@5
@6
@6
@7
@8
@8
@9
#0
"NXDN Trunking"
"NXDN Conventional"
"dPMR"
Client Mode:Enable
#1
#2
#3
