KRONE ISOBUS Terminal
102
Pos: 48.1 /Überschri ften/Überschri ften 1/K-O/KRONE ISOBUS- Terminal @ 185\mod_137957 8612990_78.docx @ 1598 079 @ 11 @ 1
8 KRONE ISOBUS Terminal
Pos: 48.2 /BA/Inf o-Center/CCI-ISOBUS- Terminal/Hinweis Im wei teren Verlauf Termina l auch als Bedieneinheit be zeichnet @ 46\mod_128 1680416671_78.doc x @ 445465 @ @ 1
Note
In the operating instructions which follow, the terminal will also be referred to as the "control
unit".
Pos: 48.3 /BA/Sic herheit/7. Gefahrenhin weise alt/Achtung - Bedi eneinheit schützen @ 0\ mod_1200308247867_78. docx @ 39598 @ @ 1
Caution! - Protect Control Unit.
Effect: Damage to the control unit
• The control unit must be protected against water.
• If the machine is not used for an extended period of time (for example during the winter),
the control unit must be stored in a dry place.
• For mounting and repair jobs, especially for welding jobs on the machine, disconnect the
power supply to the control unit. Overvoltage can damage the control unit.
Pos: 48.4 /BA/Inf o-Center/CCI-ISOBUS- Terminal/CCI-Pr ess-Wickelvorric htung/Allgemeine Beschr eibung (Die elektronisc he Ausstattung der Maschine ........) Text/Bild @ 52\mod_1289204811843_78.doc x @ 498243 @ @ 1
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
ESC
CC000013
3

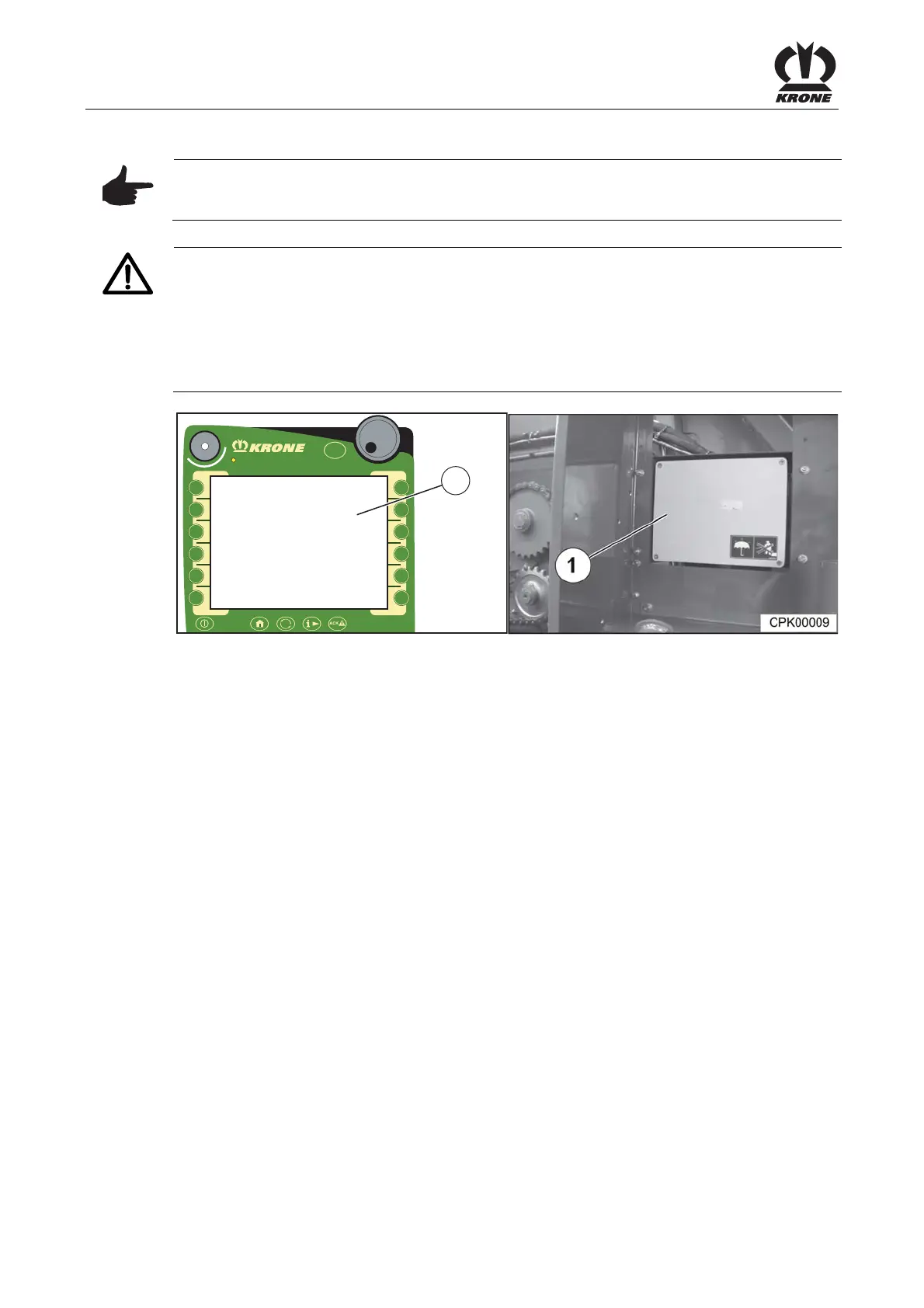

Fig. 70
The electronic equipment of the machine consists essentially of the job computer (1), the
terminal (3) and the control and function elements.
The job computer (1) is located on the front left of the machine under the side hood.
Its functions are:
• Control of the actuators installed on the machine
• Sensor system/actuator diagnostics
• Bale counter
• Transfer of alarm messages
The control unit (3) communicates information to the driver and performs settings to operate the
machine. This information is received and further processed by the job computer.
