Maintenance
296
Pos: 59.73 /Übersc hriften/Überschri ften 3/F-J/Hauptantr ieb @ 20\mod_12387515294 65_78.docx @ 225070 @ 33 @ 1
13.10.3 Main drive
Pos: 59.74 /BA/W artung/Rundballenpres se/Bild HauptantriebCF/ CV @ 75\mod_13094234899 17_78.docx @ 663092 @ @ 1
CPK00226_2
4
2
1
3

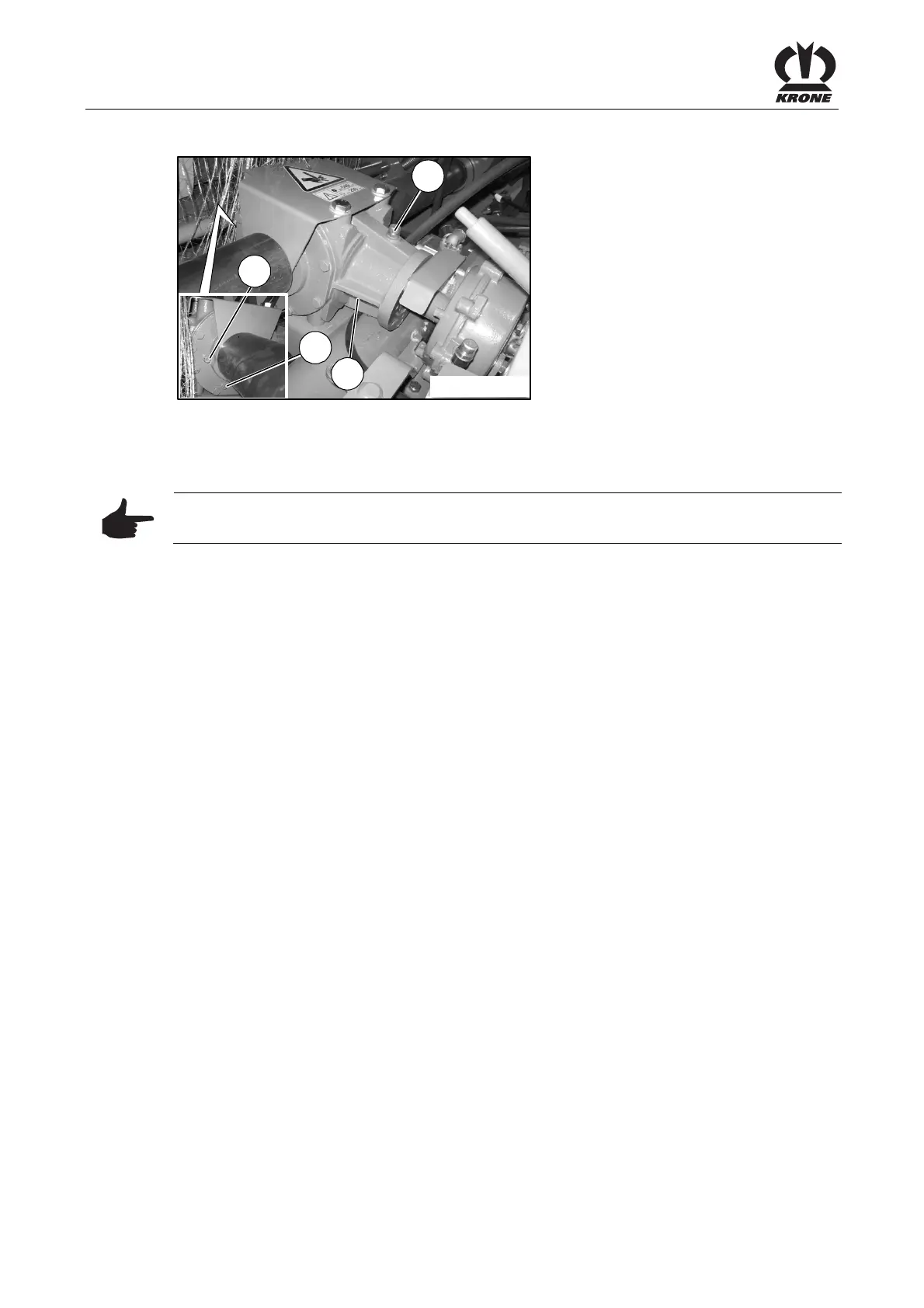

Fig. 231
Pos: 59.75 /BA/W artung/Rundballenpres se/Sitz Hauptantrieb CF/ CV @ 75\mod_130942552 5360_78.docx @ 663148 @ @ 1
The main drive (1) is located behind the drawbar in the front area of the machine. Inspection
screw and filler plug (3) are located on the side of the gearbox. The oil drain plug (2) is located
below on the gearbox (4).
Pos: 59.76 /BA/W artung/Hinweis - Ölstandskon trolle und Ölwechsel bei waagerechter Stel lung der Maschine vorneh men @ 12\mod_1224746945841 _78.docx @ 153501 @ @ 1
Note
Perform oil level check and change the oil while the machine is in a horizontal position!
Pos: 59.77 /BA/Sic herheit/8. Voraussetz ungen/Handlungsan weisung für alle Maschi nen/Handlungsan weisung: Maschine stills etzen und sichern @ 274\mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.78 /BA/W artung/Ölkontrolle_Wec hsel/Ölkontroll e_ALT/Ölkontrolle Kon trollschraube (3) @ 84\mod_1318494665586_7 8.docx @ 735606 @ @ 1
Oil Level Check:
• For time intervals, see Chapter entitled “Time Intervals for Oil Level Check and Oil Change
on the Gearboxes”
• Unscrew the inspection screw (3)
• The oil level must reach up to the control hole
• Refill oil if necessary (SAE 90)
Pos: 59.79 /BA/W artung/Ölkontrolle_Wec hsel/Ölkontroll e_ALT/Kontrollschr aube (3) eindrehen @ 84\mod_13 18496234171_78.doc x @ 735634 @ @ 1
• Screw in the inspection screw (3).
Pos: 59.80 /BA/W artung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Ölwechsel Version 8 @ 75\mod_1309424870691_ 78.docx @ 663124 @ @ 1
Oil Change:
• For time intervals, see Chapter entitled "Oil Level Check and Oil Change Intervals on the
Gearboxes”
• Unscrew oil drain plug (2) and inspection screw (3)
• Collect the oil in a suitable container
• Screw in the oil drain plug (2)
• Fill in oil up to the overrun by means of the control drill hole (3)
Pos: 59.81 /BA/W artung/Ölkontrolle_Wec hsel/Ölkontroll e_ALT/Kontrollschr aube (3) eindrehen @ 84\mod_13 18496234171_78.doc x @ 735634 @ @ 1
• Screw in the inspection screw (3).
