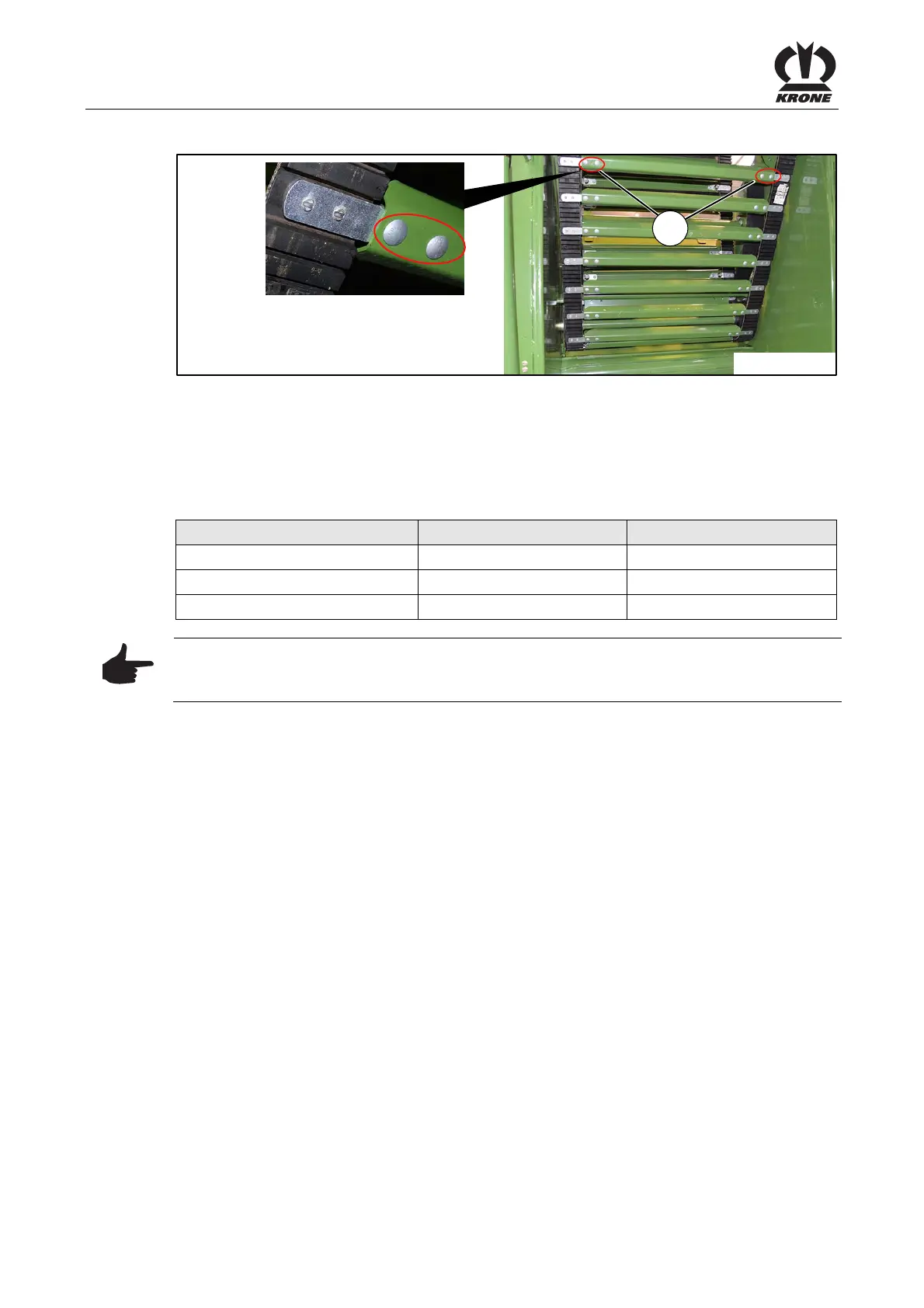

13.11 Screw connections at the front and rear of the floor conveyors
COM00363
1
Fig. 233
• Set the torque wrench to 40 Nm.
• Tighten the nuts on the screw connection (1). If the torque is not reached, loosen the screw
connection (1).
• Check the threading on the screw and nut. If damaged, use new parts.
The necessary materials can be ordered from the spare parts warehouse using the following
material numbers.
Designation Material number Unit numbers per rod
Coach bolt M10x35 90 001 687 0 4
Detent edged washer SKM 10 00 909 909 1 4
Locknut M10 A3G 00 908 758 0 4
Note
The tightening torque for the screw connection is 70 Nm and it is absolutely essential that it is
observed!
Loctite high strength (high-strength thread locker 50 ML bottle) can be ordered from the spare
parts warehouse using order number
935 512 0:
