6.6 Electrical connections
Pos: 44.33 /BA/Sic herheit/8. Voraussetz ungen/Handlungsan weisung für alle Maschi nen/Handlungsan weisung: Maschine stills etzen und sichern @ 274\mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 44.34 /BA/Inbetr iebnahme/Rundballe npresse/Elektri sche Anschlüsse Fortim a V 1500 MC @ 131\mod_134795990 4107_78.docx @ 116412 0 @ @ 1
KR-1-044
2

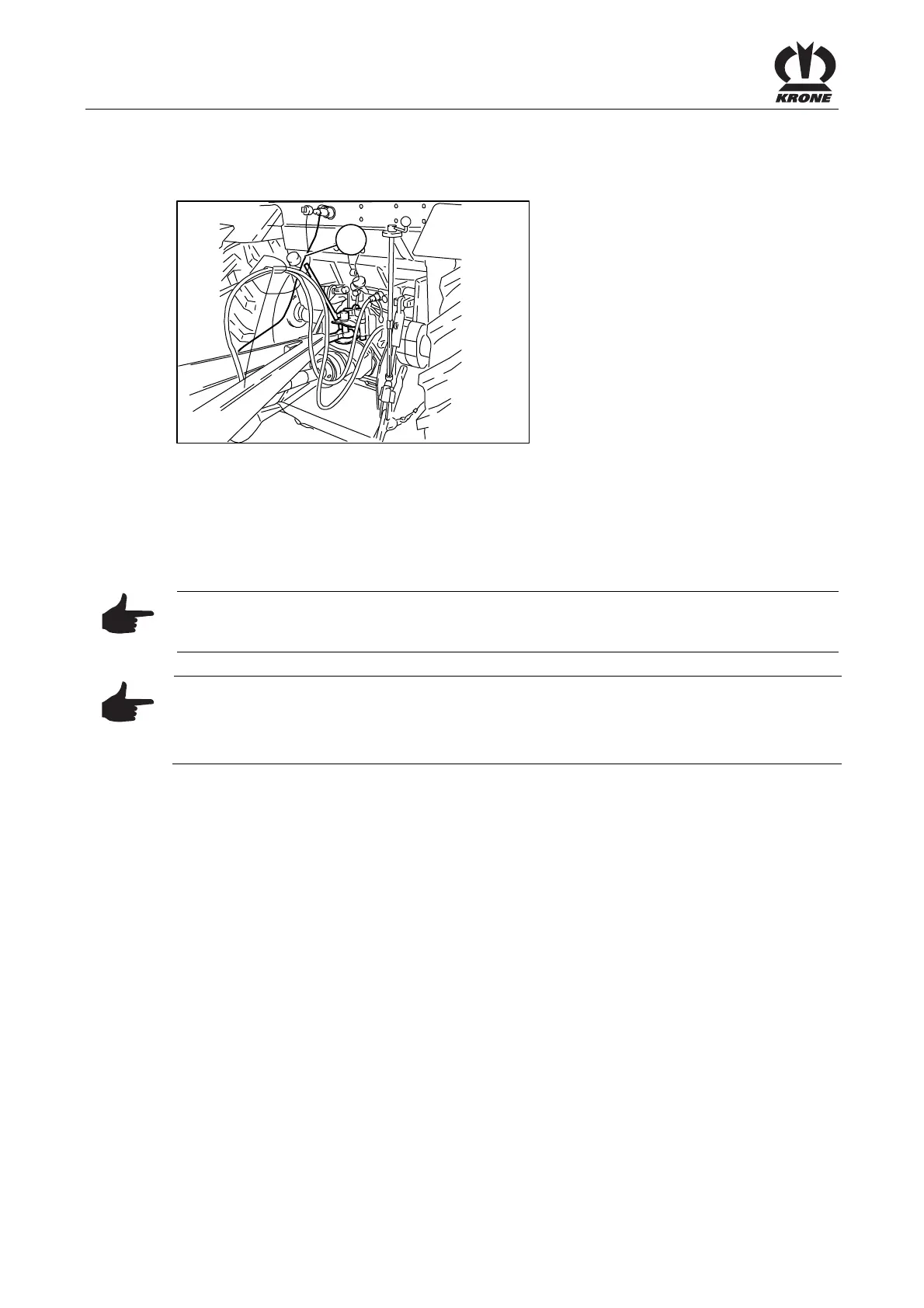

Fig. 46
• Connect the connection cable (2) for the lighting to the 7-pin plug-in connector of the tractor
electrical system
• Position the connection cable (2) so that it will not come in contact with the wheels
• Install the control console so that it is easily visible to the driver
• Connect the power supply cable (according to DIN 9680) to the 3-pin power supply socket
Note
Request the 3-pin power supply socket with connection cable from the spare parts service
(spare parts no. 0303-914-0) if the connection is not available on the tractor.
Pos: 44.35 /BA/Inbetr iebnahme/Rundballe npresse/Hinweis Ver längerungskabel Ter minal @ 307\mod_14163228 41485_78.docx @ 23821 65 @ @ 1
Note
Extension cables for the terminal can be ordered under the following spare part numbers:
• 303 174 0 (2500 mm length)
• 302 959 0 (5000 mm length).
