Operation
243
Pos: 55.131 /Übersc hriften/Überschr iften 3/A-E/E/E instellung der Zuführpositi on @ 55\mod_12924966006 92_78.docx @ 520341 @ 33 @ 1
11.15.2 Setting of the Feed Position
Pos: 55.132 /BA/Bedienu ng /Rundballenpresse/ Netz-Garnbind ung/Zuführposition ei nstellen CF/CV @ 74\mod_1 308830963595_78.d ocx @ 658429 @ @ 1
RPM00014_1
A

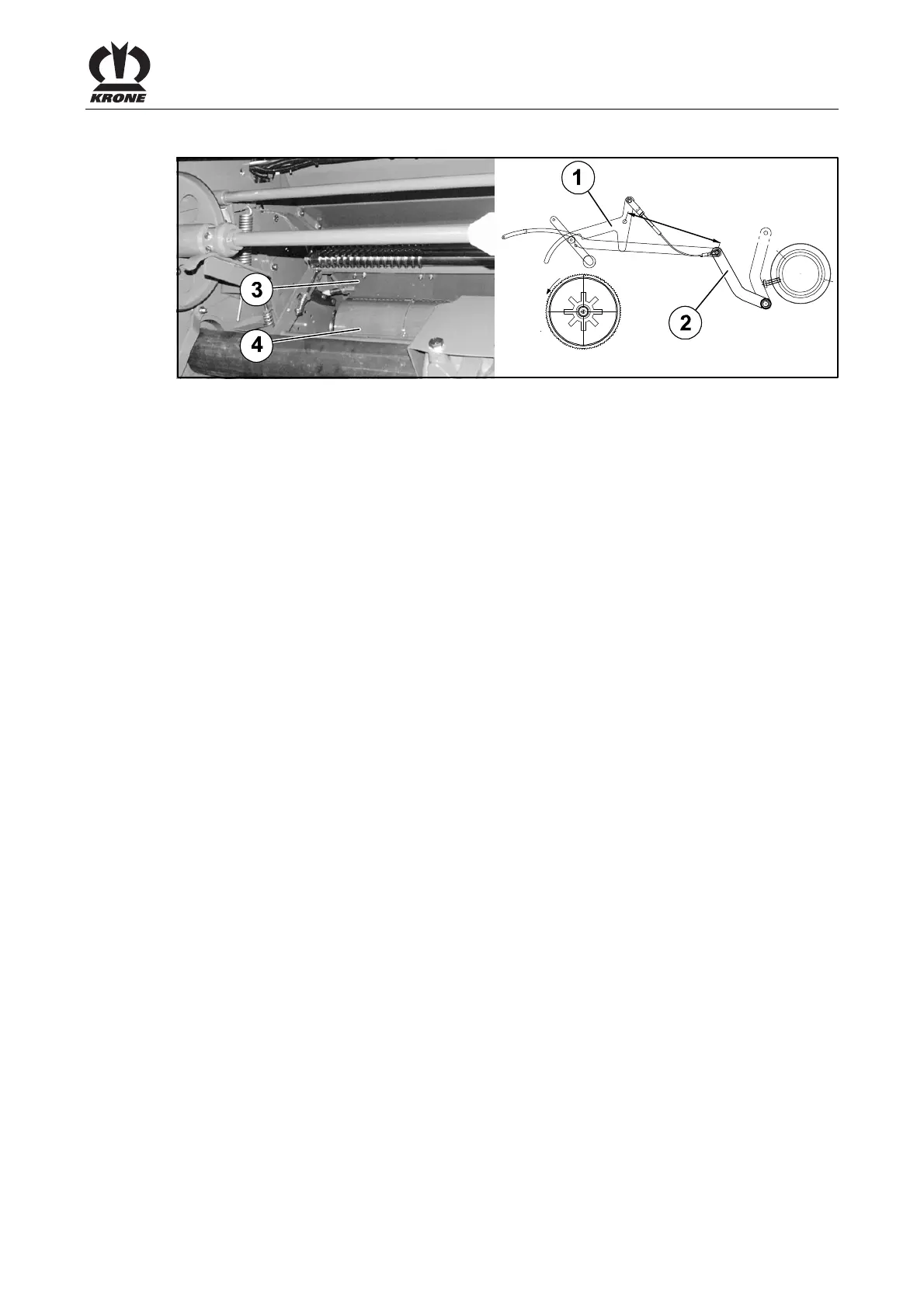

Fig. 185
An optimum adjustment of the feed position has been reached when the feeder plate (3) of the
net has moved out just far enough that there is still a small gap between the feeder plate (3) and
the conveyor roller (4).
The dimension between the pivot point of the ratchet (1) and the operating lever (2) must be “A”
= 285 mm.
In Case of Deviations, Set the Dimension “A” As Follows:
• Call menu “Manual sensor test” in the operation terminal.
• Move the engine out over the control unit dimension A between the pivot point of the ratchet
mechanism (1) and the adjusting lever (2) A = 285 mm. Only a little gap is allowed to be
existent between feeder plate (3) and conveyor roller (4).
• Save these feed position via a control unit.
