KRONE ISOBUS Terminal
171
Pos: 48.163 /Übersc hriften/Überschr iften 3/A-E/A/A ktortest @ 0\mod_12009169907 91_78.docx @ 47833 @ 33 @ 1
8.13.2 Actuator test
Pos: 48.164 /BA/Sic herheit/7. Gefahrenhin weise alt/WARNUNG - Aktortest @ 301\ mod_1413441650591_78. docx @ 2349581 @ @ 1
WARNING!
The functions are directly executed by energizing the actuators. As a result, machine
parts may start to move unexpectedly, persons may be captured and seriously hurt.
• Switch off PTO shaft.
• Deactivate tractor hydraulics.
• Only persons familiar with the machine are permitted to perform the actuator test.
• The person performing the test must know the machine parts being actuated by controlling
the actuators. If necessary, secure actuated machine components from unintentional
lowering.
• Only perform the sensor test from a safe position outside the moving machine parts.
• Make sure that there is no one in the danger zone.
Pos: 48.165 /Übersc hriften/Überschr iften 3/K-O/Menü 4-4 Aktort est Hand @ 44\mod_12756370 10843_78.docx @ 393380 @ 33 @ 1
8.13.3 Menu 4-4 Manual actuator test
Pos: 48.166 /BA/Inf o-Center/Großpackenpr esse/Hauptmenüs/ Hauptmenü 4 Service/ Menü 4-4 Aktortest Hand Einf ührungstext @ 44\mod_12756 37366437_78.doc x @ 393405 @ @ 1
The actuator test is used to test the actuators installed on the machine. An actuator can only be
tested if power is flowing through it. In the manual actuator test the actuator must therefore be
controlled manually for a short time to be able to determine if there are any errors in the
actuator system.
Pos: 48.167 /BA/Inf o-Center/Großpackenpr esse/Hauptmenüs/ Hauptmenü 4 Service/ Menü 4-4 Aktortest Hand Achtun g @ 44\mod_1275637929203_7 8.docx @ 393455 @ @ 1
CAUTION! - Unexpected actions on the machine.
The P.T.O. shaft must not be turning during the actuator test. The tractor hydraulics must be
deactivated.
Pos: 48.168 /BA/Inf o-Center/CCI-I SOBUS-Terminal/CCI- Rundballenpressen/ Hauptmenüs/Hauptmenü 4 Ser vice/Menü 4-4 Aktort est Bild @ 50\mod_1287569 285796_78.doc x @ 473705 @ @ 1

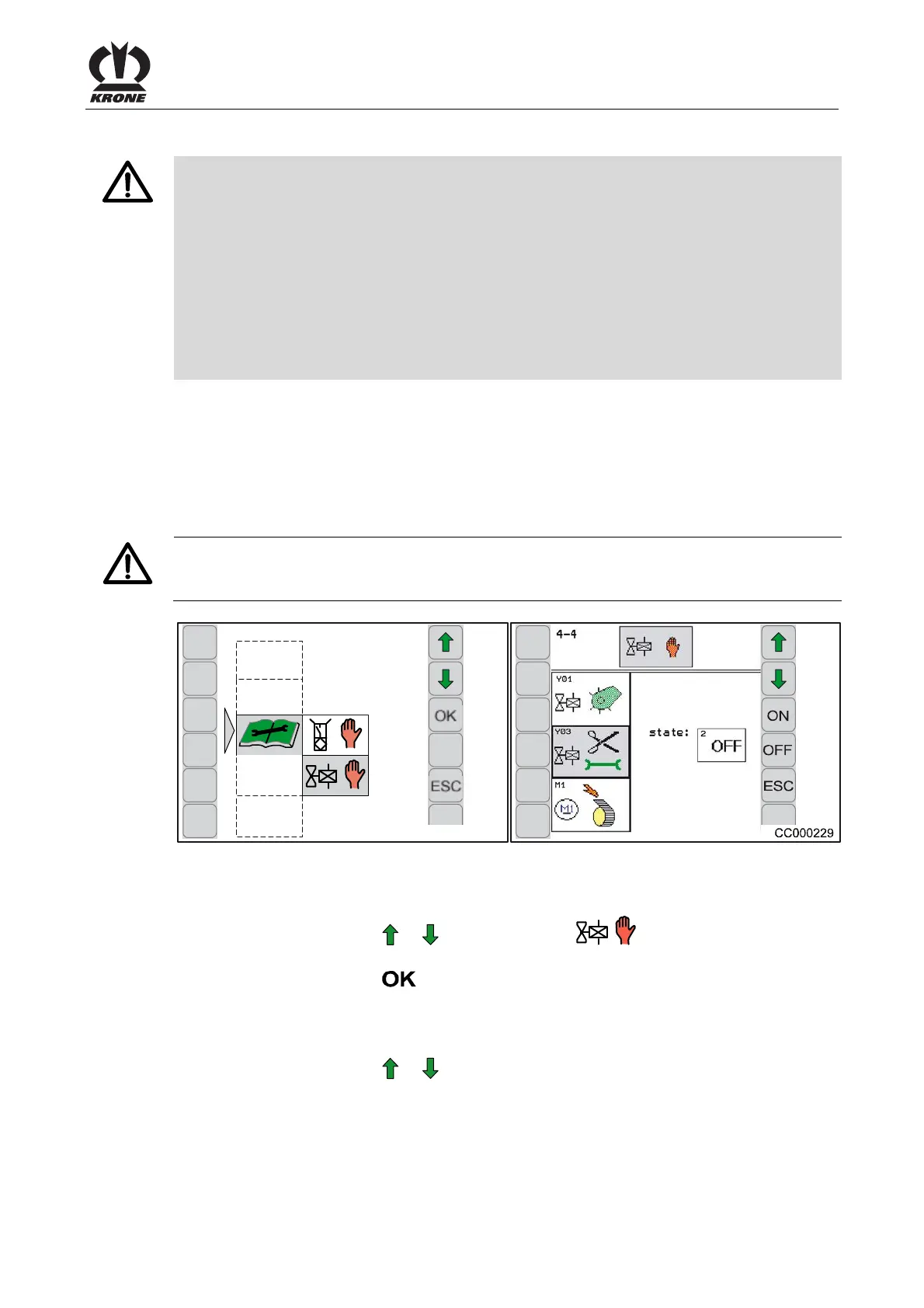

CC000228
4-4
Fig. 128
Pos: 48.169 /BA/Inf o-Center/CCI-I SOBUS-Terminal/CCI- Rundballenpressen/ Hauptmenüs/Hauptmenü 4 Ser vice/Menü 4-4 Aktort est Hand - Menü aufrufen/ Aktor wählen @ 50\mod_128757 0586750_78.doc x @ 473735 @ @ 1
Calling the menu
Main menu 4 "Service" is called.
• Pressing the function key
or to select Menu 4-4 . The symbol is highlighted
in grey.
• Pressing the function key
The display shows menu level 4-4 „Manual actuator test"
Selecting the actuator
• Pressing the function key or to select Actuor.
The symbol is highlighted in grey.
