11.7 Overload protection
Pos: 55.70 /Übersc hriften/Überschri ften 3/A-E/A/Antri ebskette für Pic k-Up @ 67\mod_1302519019324_78.doc x @ 617069 @ 33 @ 1
11.7.1 Drive Chain for Pick-up with Cam-type Clutch
Pos: 55.71 /BA/Bedienun g /Rundballenpresse/ Absicherung Über lastung @ 67\mod_130252014 6803_78.docx @ 617093 @ @ 1
1
RPN00021

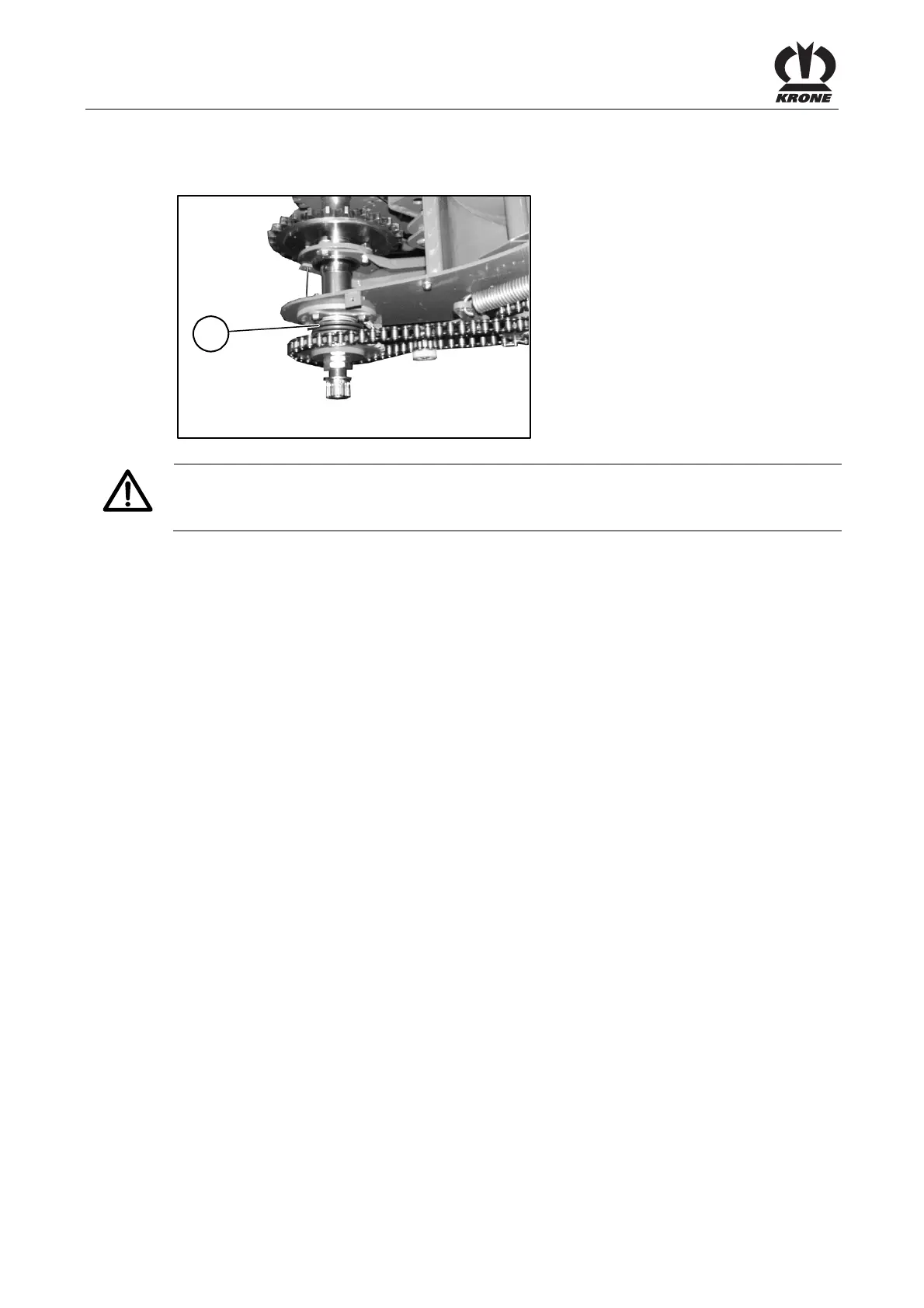

Fig. 161
CAUTION!
Damage to the machine and loss of the warranty claim
• Do not perform any manipulation on the cam-type clutch on your own
The drive is fitted with a cam-type clutch (1) as a protection against overload. This coupling has
been set in the works of the manufacturer and may not be adjusted without prior harmonisation
with the KRONE after-sales staff.
