Maintenance
309
Pos: 59.136 /Übersc hriften/Überschr iften 2/K-O/Lagerung vom Wickelarm @ 76\mod_130987 6477910_78.doc x @ 664733 @ 22 @ 1
13.17 Wrapping Arm Bearing
Pos: 59.137 /BA/Sic herheit/8. Vorausset zungen/Handlungsan weisung für alle Maschi nen/Handlungsanweisu ng: Maschine still setzen und sichern @ 274\ mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.138 /BA/W artung/Rundballenpres se/Lagerung Wickelar m CF/CV @ 76\mod_130994456845 2_78.docx @ 665191 @ @ 1
COM00210
3
1
3
2

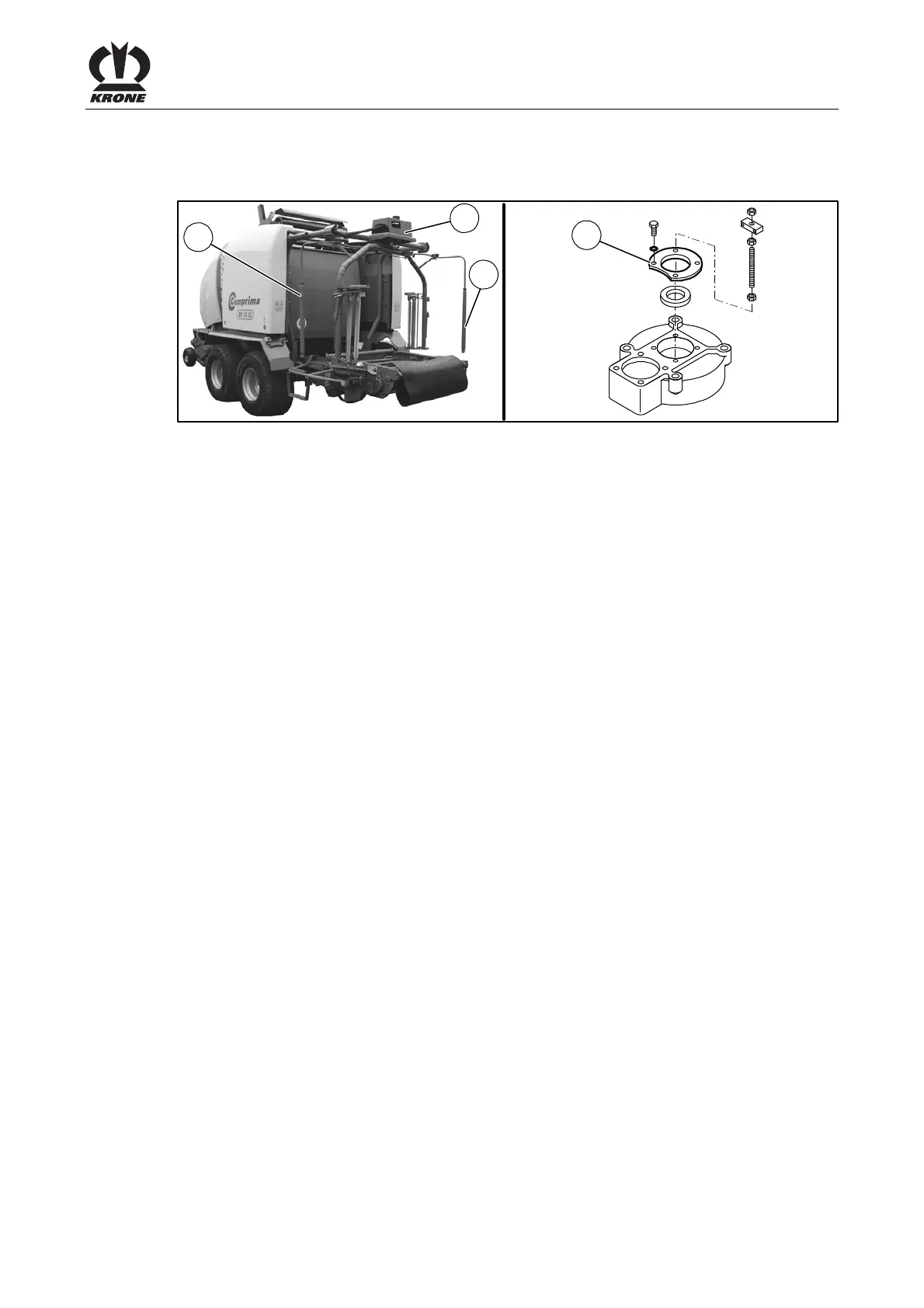

Fig. 245
If the wrapping arm bearing has too much play in the gearbox, it must be raised by placing shim
rings under it:
• Remove the protective hood (1).
• Remove the cover (2).
• Insert shim rings Ø63x Ø 80 to adjust the play between bearing and cover.
• Install the cover (2).
• Set the protective hood (1) in place again.
• Then activate both bars (3) and check whether the safety switch is working correctly again.
