6.18 Mounting the bale cloth on the bale turner
COBW0022
3
1
2
Fig. 60:

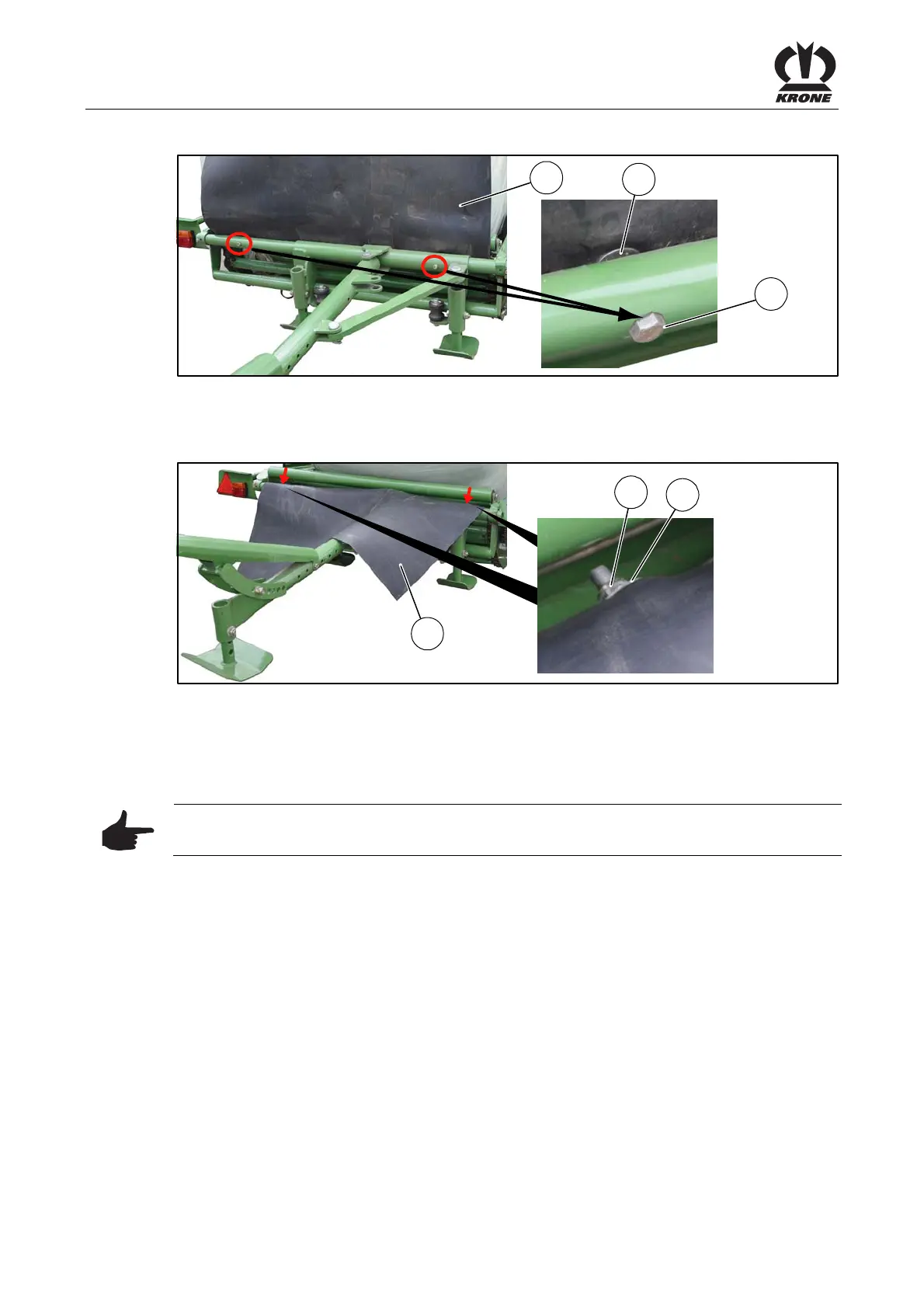

Mount the bale cloth (1) on the marked bore holes of the bale turner as follows:
1. Guide the hexagonal head screws (2) on the right and left through the bore holes and place
a washer (3) on the screw stem.
COBW0023
1
3
4
Fig. 61
2. Attach the bale cloth (1) to the hexagonal head screws (2) right/left, fit the washers (3) and
nuts (4) and tighten.
Pos: 44.76 /BA/Inbetr iebnahme/Rundballe npresse/Ballen wender/Abbau des Ballenw enders @ 14\mod_1227871 660008_78.docx @ 170372 @ 22 @ 1
6.19 Removing the bale turner
Note
Follow the same steps in reverse order to remove the bale turner.
