8.10.7 Move swivel table by hand
• Softkey
moves the swivel table forward as long as the softkey is activated or until the
forward end position is reached.
• Softkey
moves the swivel table back as long as the softkey is activated or until the
rear end position is reached.
• Press softkey
0
and hold it down until swivel table has reached the zero position.
• Pressing the function key
closes the called up menu.
• Pressing the function key
and holding it down brings up the basic screen.
Possible status messages window 1 (wrapping arms/swivel table); see chapter “Status
messages”.
Pos: 48.121 /BA/Inf o-Center/CCI-I SOBUS-Terminal/CCI- Press-Wickelvorric htung/Hauptmenüs/ Hauptmenü 3 Handbedienung/ Menü 3-2 Handbedienun g Wickler @ 53\mod_128998205 2609_78.docx @ 507235 @ 22 @ 1
8.11 Menu 3-2 Manual operation wrapper
4
3
1
2

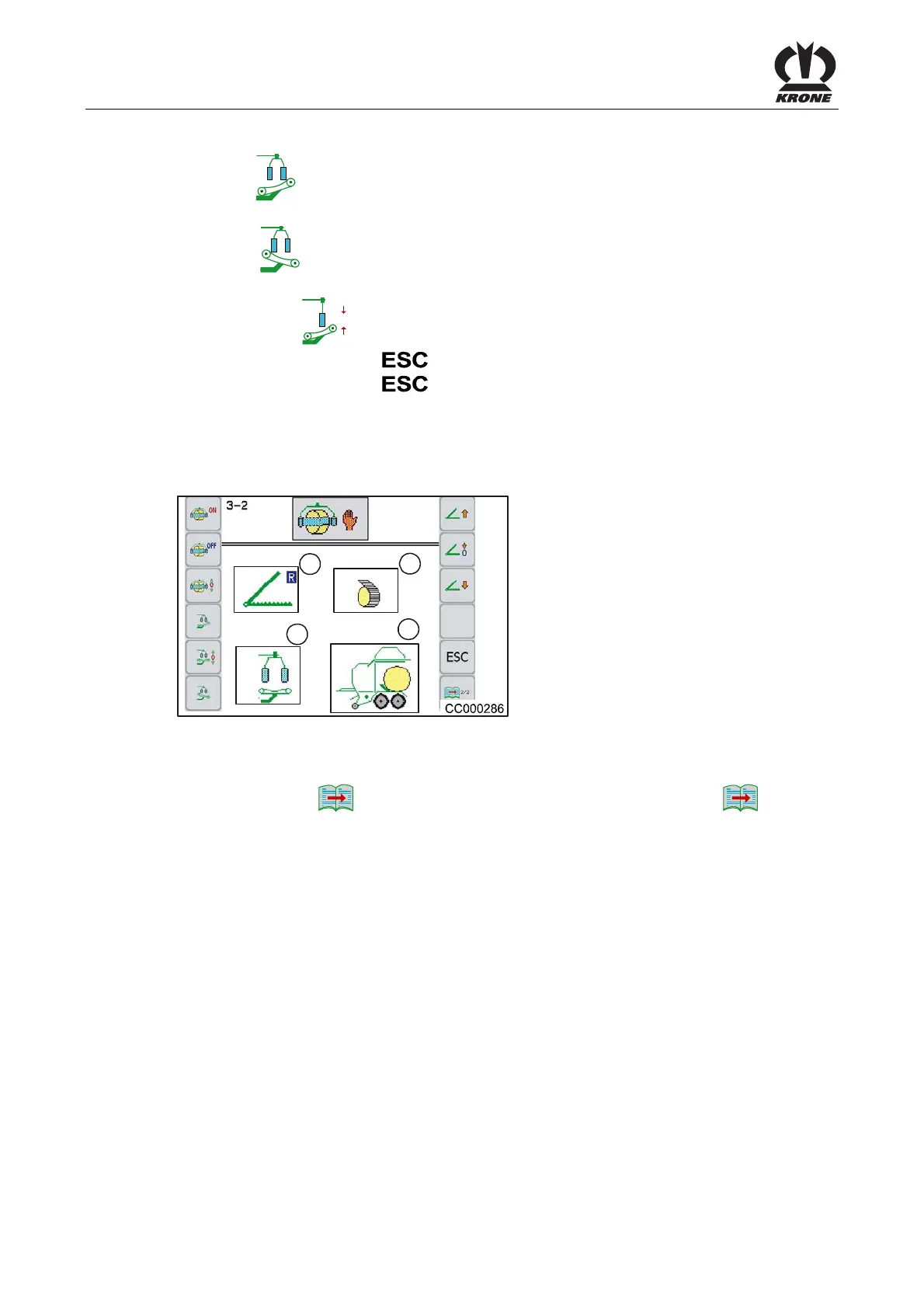

Fig. 114
Calling the menu
Menu 3-1 "Manual operation wrapper" is called.
• Activate the key
1/2
to change to menu 3-2 "Manual operation wrapper"
2/2
.
Show in the display
(1)
= Display wrapping arm
(2)
= Display net motor
(3)
= Bale chamber and lifter display
(4)
= Holding arms display
Possible status messages window 3 (bale chamber); see chapter “Status messages”.
