11.12 Setting the Bale Diameter
Pos: 55.92 /Abkürzun gen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CF 155 XC_fett @ 66\mod_1302006 789716_78.docx @ 593531 @ @ 1
Comprima CF 155 XC
Pos: 55.93 /WHB/Grundei nstellungen/ Rundballenpresse/Eins tellen des Ballendur chmessers (COMPRIMA F155) @ 212\mod_1389782655 887_78.docx @ 1742440 @ @ 1
The tailgate must be closed and the bale chamber must be empty.
Adjust the bale diameter at the rear right and left of the machine.

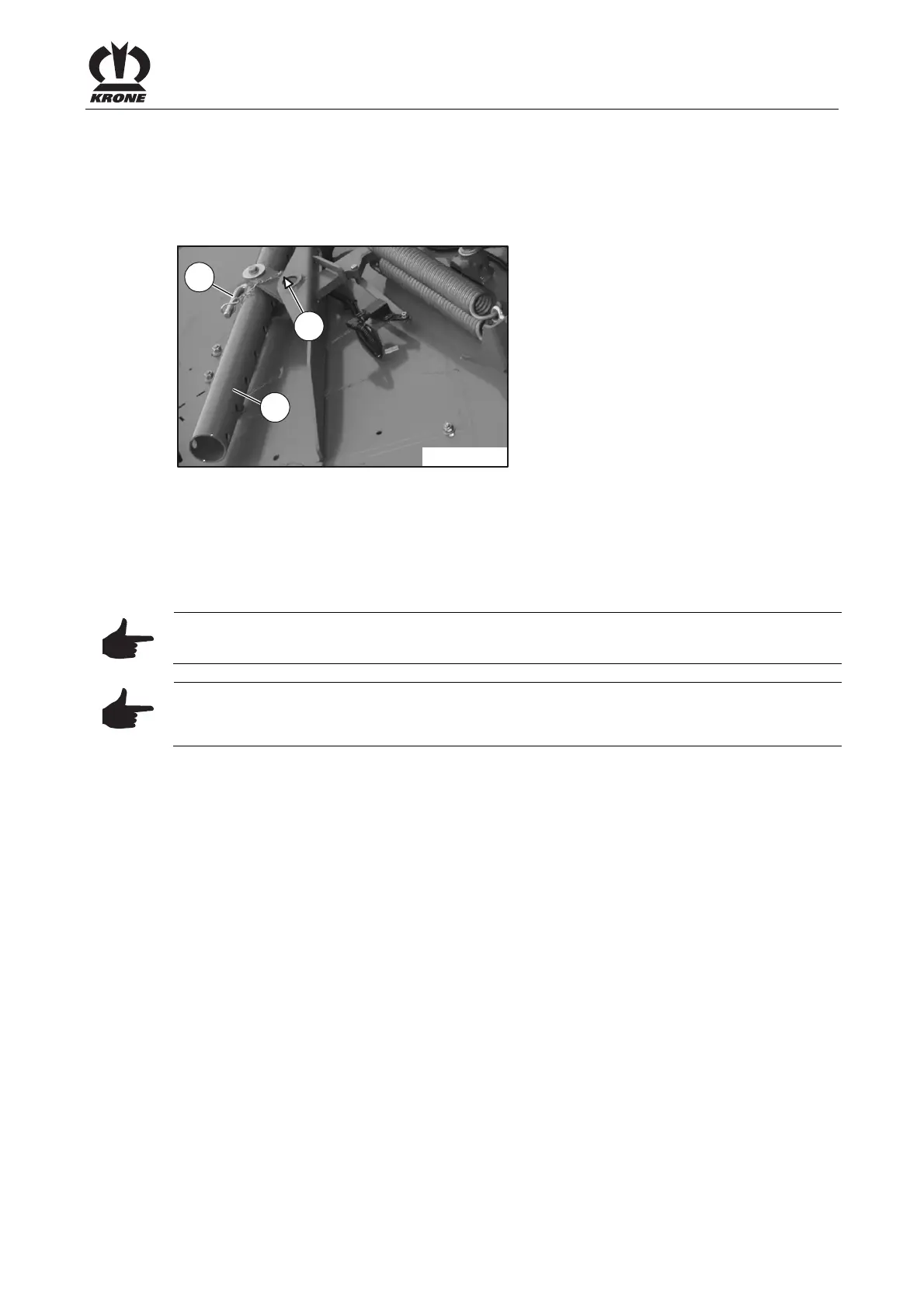

CPN00010_3
1
3
2
Fig. 175
Upper hole = Smallest bale diameter
Lower hole = Largest bale diameter
• Detach the split pin (2) from the locking bolt (1) on the spring tube (3).
• Insert the locking bolt (1) into the desired bore on the spring tube (3) and secure with the
split pin (2).
Note
The setting must be the same on both sides.
Note
If the bale diameter is changed mechanically, the new dimension should be entered in the
terminal using the "Bale diameter" menu.
