Operation
234
1
b
a
RPN00015_1
+
+
B
A

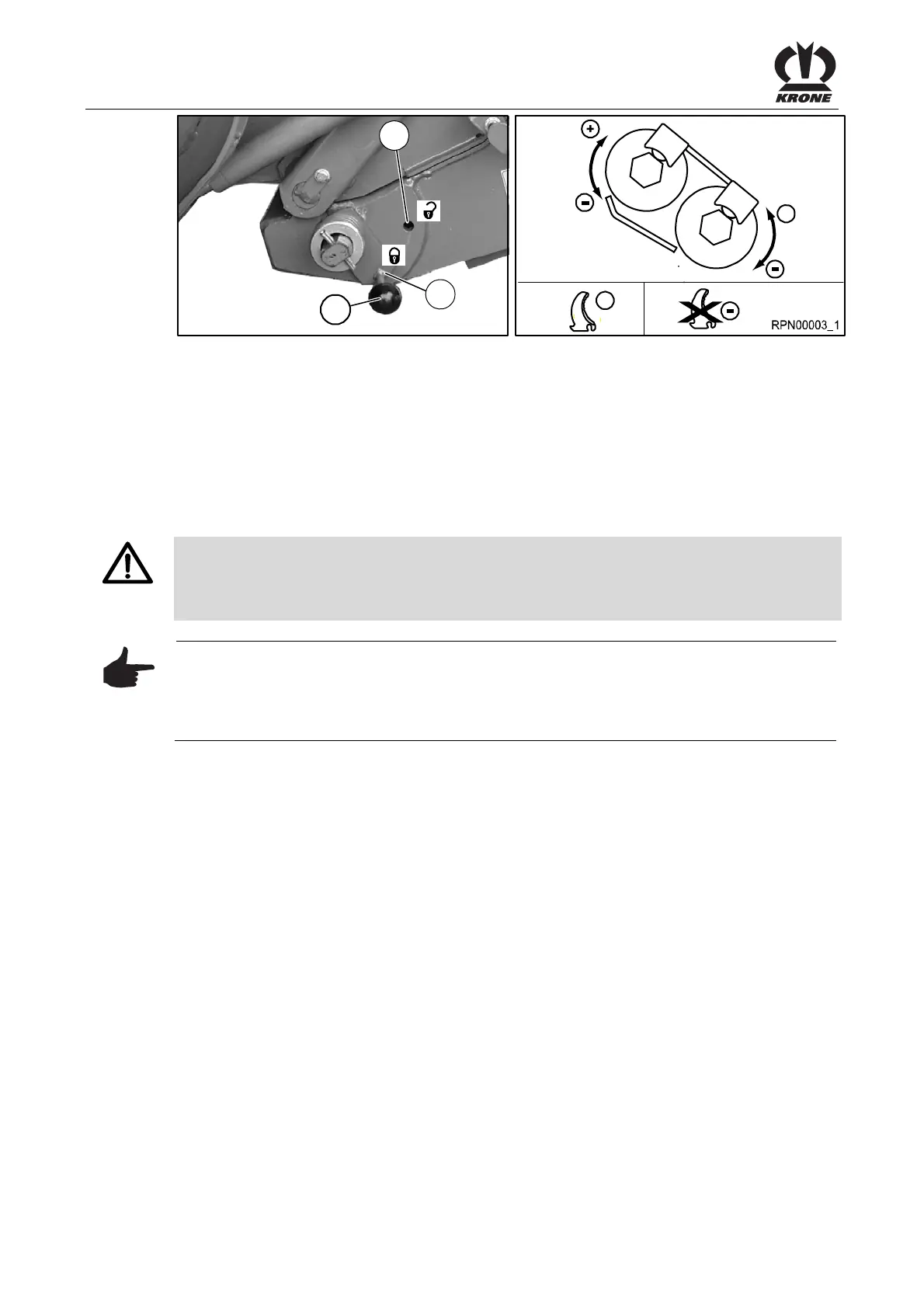

Abb. 174
• Lock the blade shaft:
Pull the locking bolt (1) out of position (b) and allow it to engage in position (a).
• Adjust the cutting length (turn blade control shafts (A/B) in “+” position)
After the cutter control shafts have been adjusted, the cutters automatically swivel back up into
working position.
• Check to make certain all the cutters have swivelled up If they have not, lightly tap any
blades that have not already swivelled up with a tool (for example a hammer) striking the
back of the cutters to move them back to working position
Pos: 55.89.27 /BA/Si cherheit/7. Gefahr enhinweise alt/Rundba llenpresse/W ARNUNG - Messermontage Hilfswerkzeug @ 308\mod_141690 1860397_78.doc x @ 2390596 @ @ 1
WARNING! - Blades are pretensioned with spring force!
High risk of injury when attaching or removing the blades.
• Never press the blades manually into working position. Always use a tool (for example a
hammer).
Pos: 55.89.28 /BA/Si cherheit/7. Gefahr enhinweise alt/Rundba llenpresse/Hinwei s Blindmesser @ 175\mod_ 1372833769347_78.doc x @ 1504684 @ @ 1
Note
If the cutting system is not connected for long periods, the cutting blades can be replaced with
blind blades to prevent soiling of the slots on the blade base and wear to the blades.
The blind blades can be ordered from the KRONE spare parts department under part number
200654050.
