Settings
271
Pos: 57.10 /Übersc hriften/Überschri ften 2/U-Z/Zentrale Ke ttenschmierung @ 33\mod_12 54819776816_78.doc x @ 319945 @ 2 @ 1
12.2 Central chain lubrication system
Pos: 57.11 /BA/Einste llungen/Rundball enpresse/Zentral e Kettenschmierung @ 33\ mod_1254819918129_78. docx @ 319966 @ @ 1
1
2
3
RBV05150

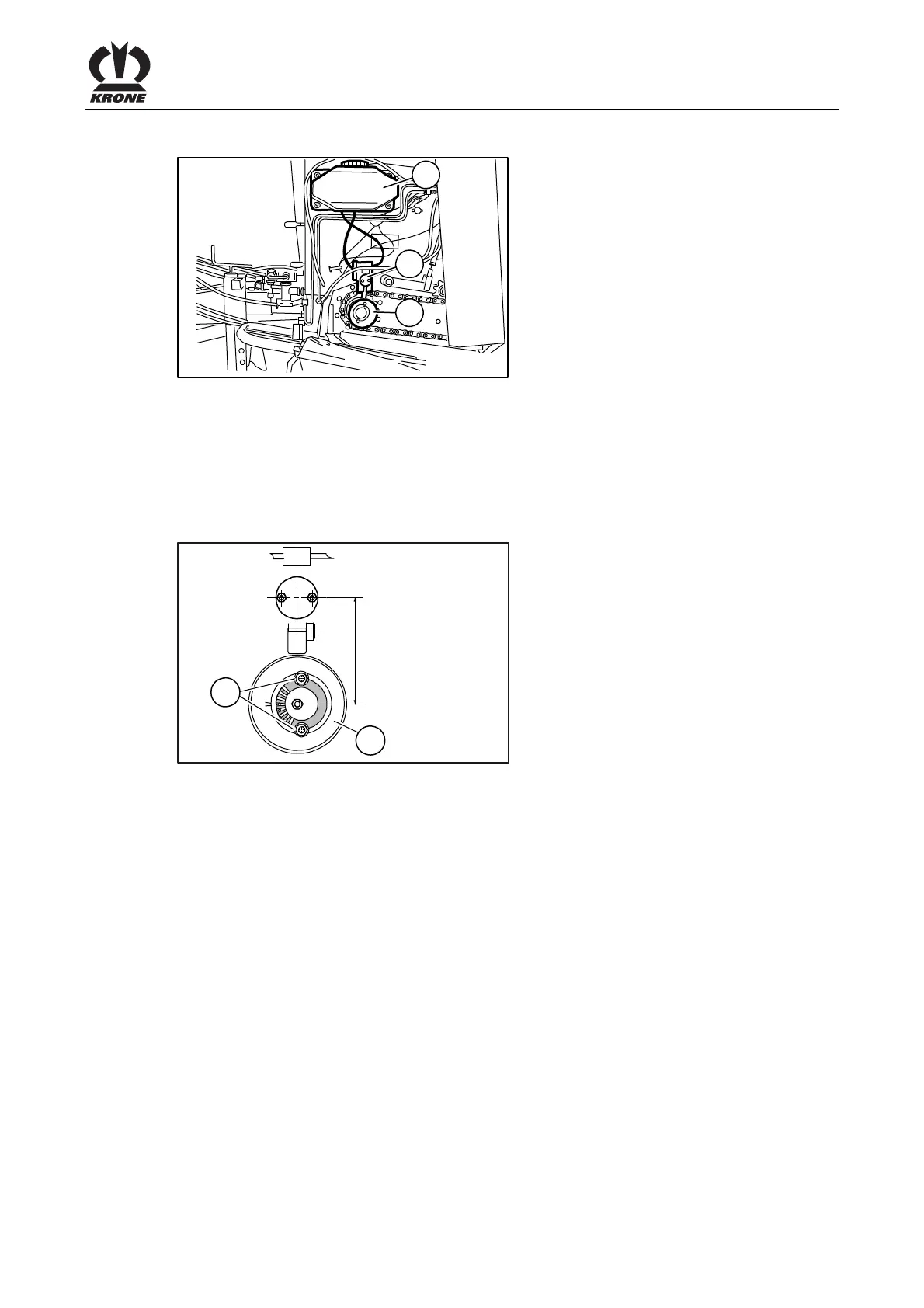

Fig. 211
The central chain lubrication system is attached to the left-hand side of the machine behind the
front guard.
Each time the drive shaft makes a rotation, oil is forced out of the tank (1) via the pump (2) and
the lubrication manifolds attached to the left-hand and right-hand side of the machine, and onto
the brushes on the drive chains.
Different nozzles are built into the lubrication manifolds for each lubrication point.
The delivery rate can be adjusted by means of the eccentric cam (3) on the drive roller.
6
7
8
128 mm
VP-2-001
1
2
Fig. 212
• Loosen the screws (2).
• Rotate the eccentric cam disc (1).
• Retighten the screws (2).
