6.6.1 Connecting the terminal (on tractors without ISOBUS system)

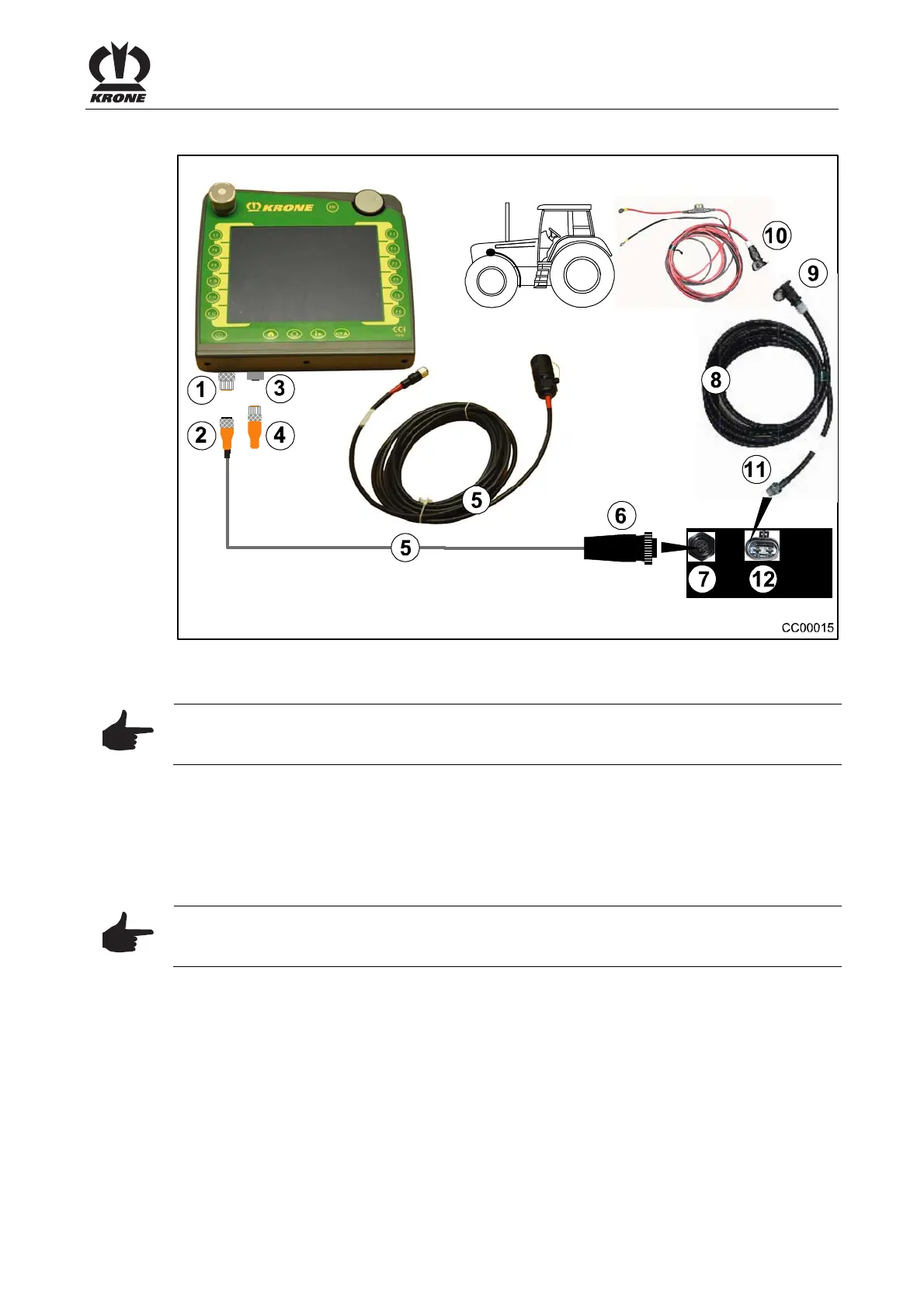

Fig. 47
Connection terminal to machine
Note
The connection of terminal to machine takes place via a provided cable set (5) (article no.
20 081 224 0).
• Connect plug (2) of cable set (5) with socket (1) (CAN1-IN) of the terminal
• Connect plug (6) (7-pole) of cable set (5) with socket (7) (7-pole) of the machine
• Connect connector plug (4) (article no. 00 302 300 0 included in scope of delivery) with
socket (3) (CAN1-OUT) of the terminal
Connection tractor to machine
Note
The connection of tractor to machine takes place via a provided power cable (8) (article no.
20 080 601 0).
• Connect plug (9) of power cable (8) with continuous current socket (10) of the tractor
• Connect plug (11) (2-pole) of power cable (8) with socket (12) (2-pole) of the machine
