9.1 Mounting ISOBUS Terminal
3
4
5
7
6
1
2

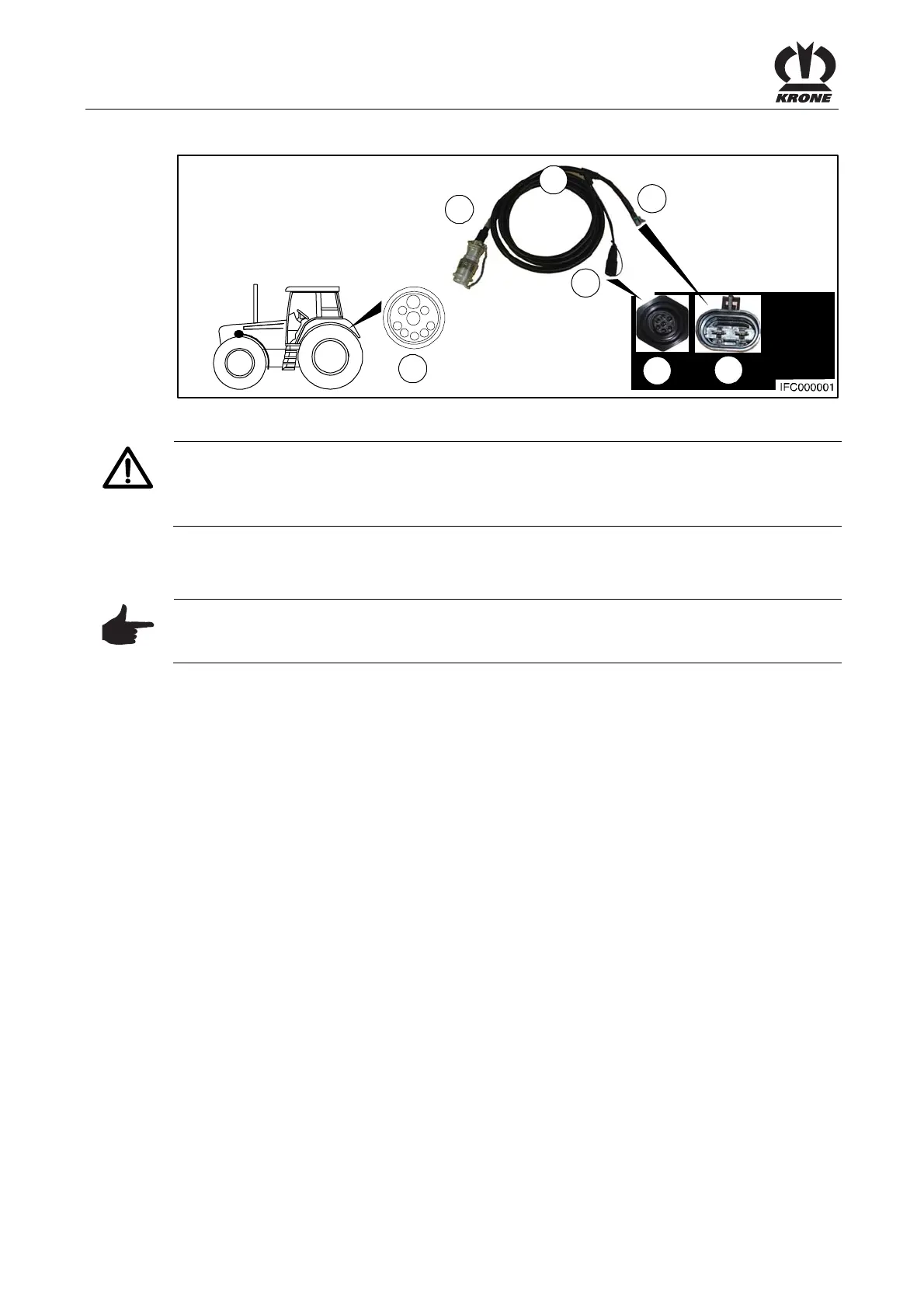

Fig. 148
CAUTION!
Failure of control unit.
When installing, make certain that the connection cables are not tight when cornering and that
they do not touch the tractor wheels or any other parts of tractor or machine.
9.1.1 Connection Terminal to Tractor
Note
For further details on the attachment, consult the operating instructions of the ISOBUS terminal
manufacturer.
9.1.2 Connection Tractor to Machine
• Connect ISO-plug (3) (9-pole) of cable set (1) with outer ISO-socket (2) (9-pole) on tractor
side
• Connect plug (4) (7-pole) of cable set (1) with socket (5) (7-pole) of the machine
• Connect plug (6) (2-pole) of cable set (1) with socket (7) (2-pole) of the machine
